66 20 515 Removing and Installing/Replacing A Front Left Ultrasonic Transducer

66 20 515 Removing And Installing/Replacing A Front Left Ultrasonic Transducer







Necessary preliminary tasks:
- Remove grille in bumper trim at front left







Disconnect plug connection (1) and unclip ultrasonic sensor from retaining tabs (2).

Installation:
Retaining tabs (2) must not be damaged.
Make sure ultrasonic sensor is securely seated.







Installation:

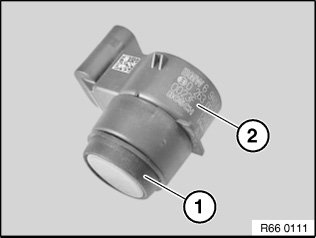

Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).
