36 11 523 Removing and Installing/Replacing an RDC Trigger Transmitter (Rear)

36 11 523 Removing and installing/replacing an RDC trigger transmitter (rear)





Necessary preliminary tasks:
^ Partially detach rear wheel arch trim

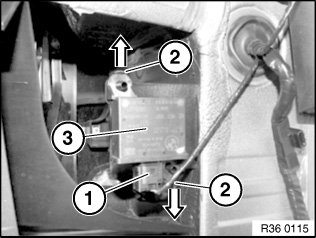

Disconnect plug connection (1).

Gently press retaining tabs (2) apart in direction of arrow and remove trigger transmitter (3).
