Radiator Cooling Fan Motor Relay: Service and Repair

61 36 600 - Removing and installing/replacing relay for deactivating electric fan





Necessary preliminary tasks:
- Disconnect battery negative lead 61 20 900 Disconnecting and Connecting Battery Negative Lead
- Remove wheel arch cover at front (front section) 51 71 038 Removing and Installing/Replacing Front Left or Right Wheel Arch Cover (Front Section) right

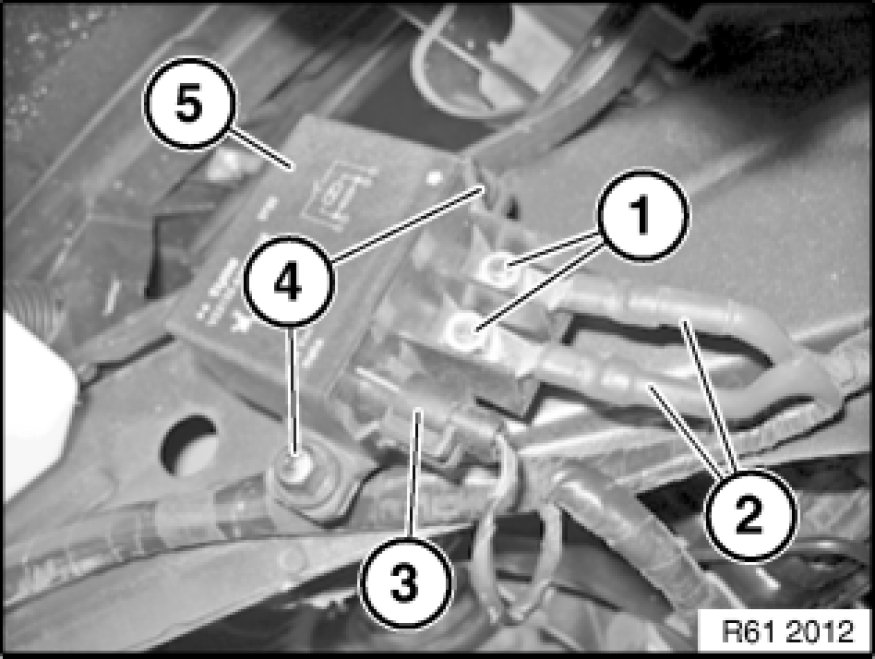

Release nuts (1) and disconnect battery positive leads (2) from relay for deactivating electric fan (5). Tightening torque 61 36 1AZ 61 36 Relay.
Disconnect plug connection (3).
Release nuts (4) and remove relay for deactivating electric fan (5) from holder.
