Fault Pattern 153: EGS Automatic Transmission TSG

Transmission Does Not Shift To P

Perception:
When the parking lock button is pressed, the automatic transmission does not shift to position P. The automatic transmission shifts to N.

NOTE: In addition, the fault code (507B) is entered.







Assessment:

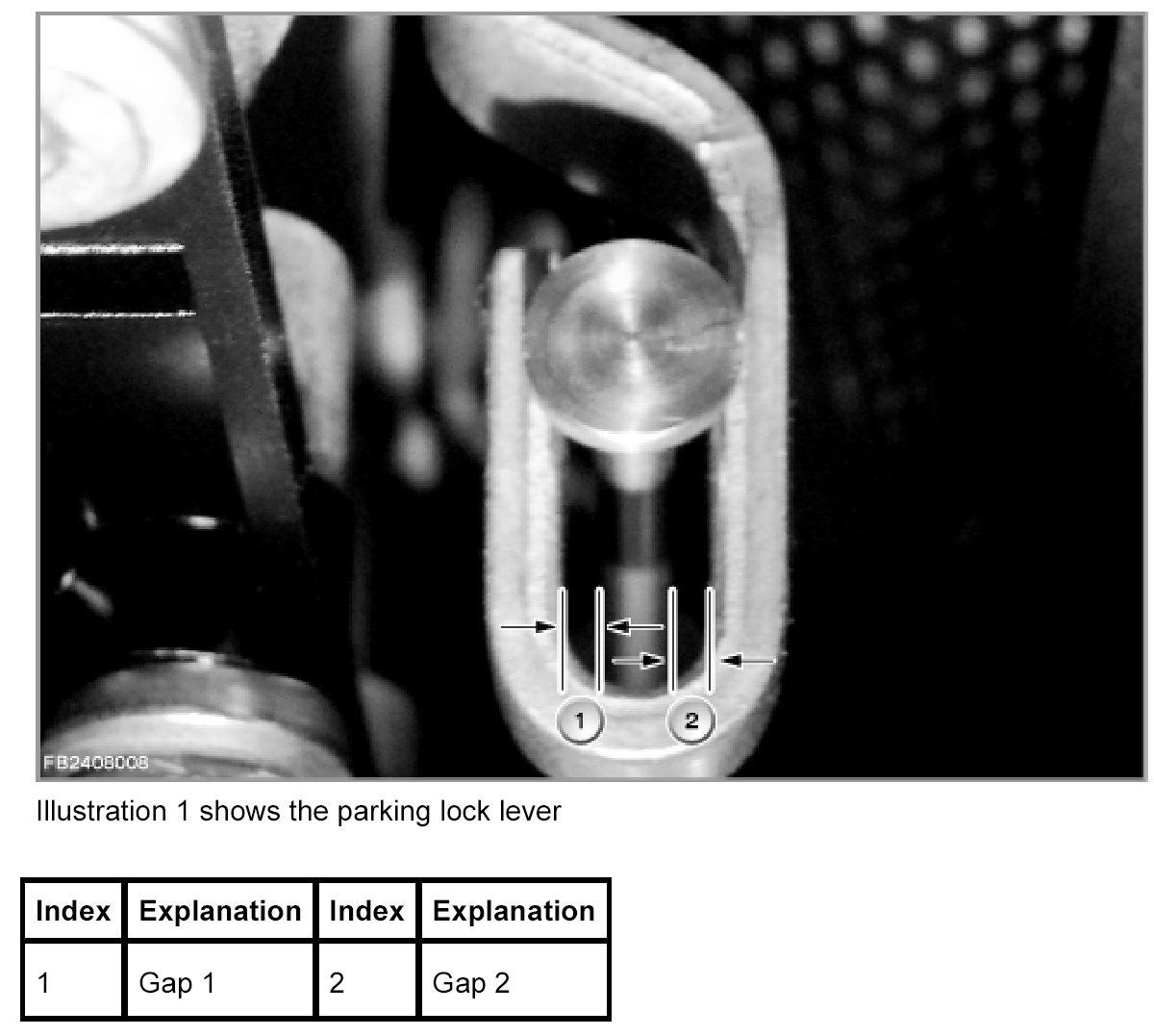

If gap 1 is the same as gap 2, the parking lock lever is OK.







Assessment:

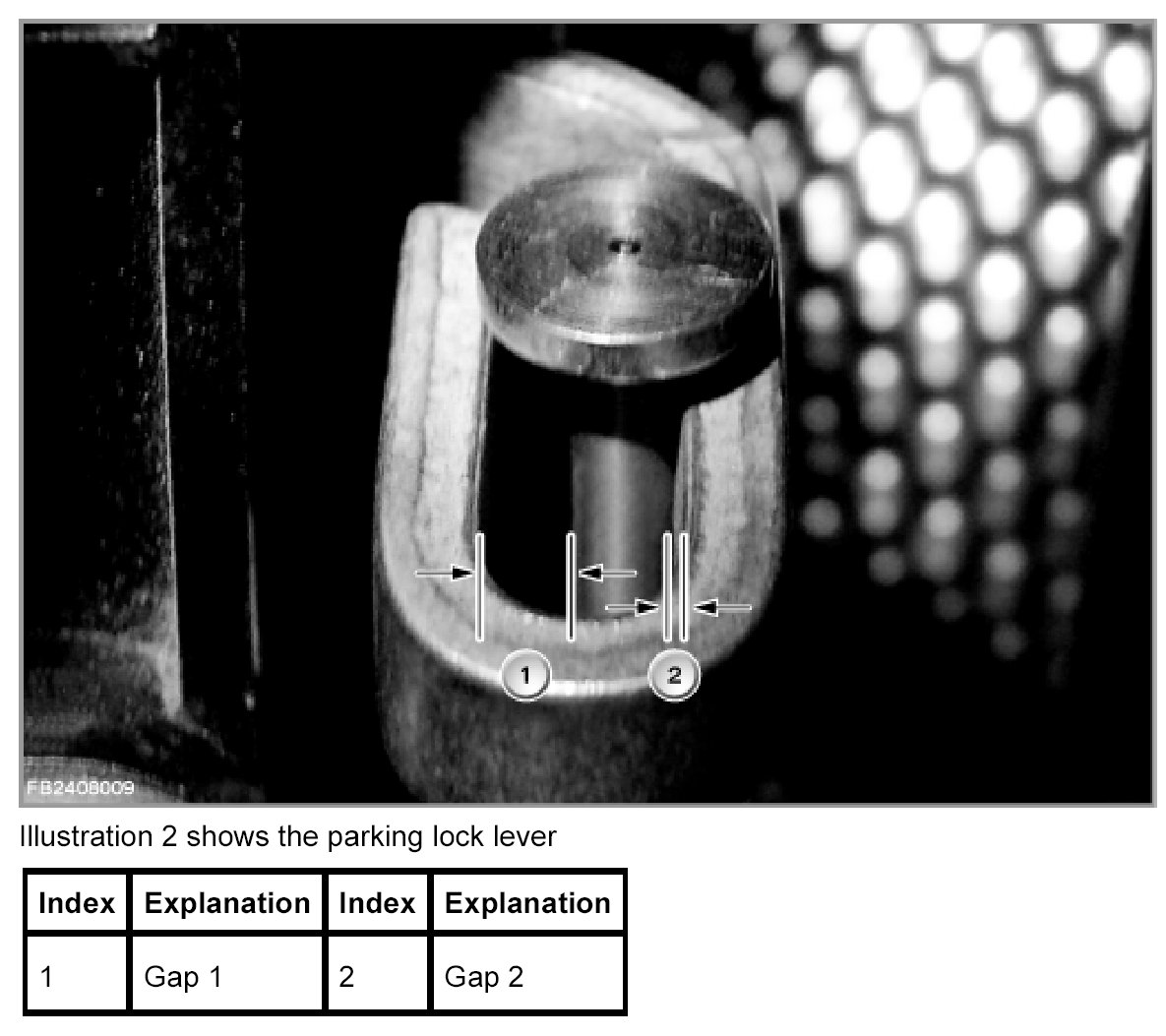

If gap 1 is not equal to gap 2, the parking lock lever is bent.
