63 17 070 Removing and Installing/Replacing Left Front Fog Lamp

63 17 070 Removing And Installing/Replacing Left Front Fog Lamp







Necessary preliminary tasks:
- Remove trim grille in bumper trim (side)

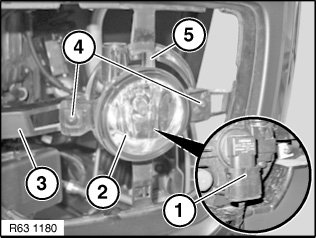

Disconnect plug connection (1).

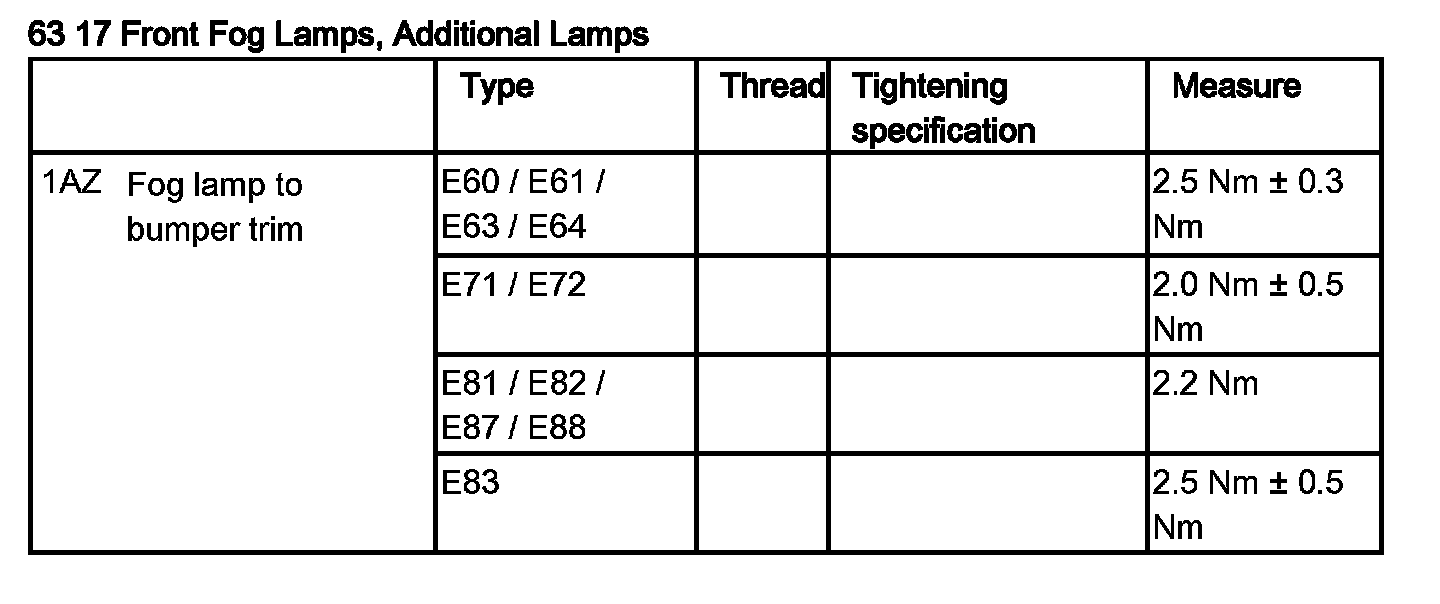

Release screws (4) and remove fog lamp (2) from bumper trim (3). Tightening torque 63 17 1AZ.

Installation:
Make sure fog lamp (2) is correctly seated on bumper trim (3).
Guide (5) of fog lamp (2) must be positioned in associated recess in bumper trim (3).







Replacement:
If necessary, remove bulb.
Adjust front fog lamps.
