Fog/Driving Lamp Bulb: Service and Repair

63 99 201 Replacing Halogen Bulb For Left Or Right Front Fog Light







WARNING: Follow instructions for handling light bulbs (exterior lights).







Necessary preliminary tasks:
- Remove trim grille in bumper trim (side)

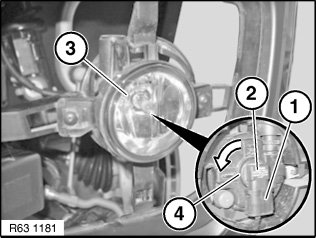

Disconnect plug connection (1).
Turn halogen bulb for fog lamp (2) in direction of arrow and remove from fog lamp (3).

Installation:
Note bulb type.
Make sure sealing ring (4) is correctly seated on halogen fog lamp bulb (2).
Make sure halogen fog lamp bulb (2) is correctly engaged on fog lamp (3).
