Fuse F112 (Without SMFA Seat Module, Driver Without FKA Rear Heater/Air Conditioning)



Fuse F112 (Without SMFA Seat Module, Driver Without FKA Rear Heater/Air Conditioning)

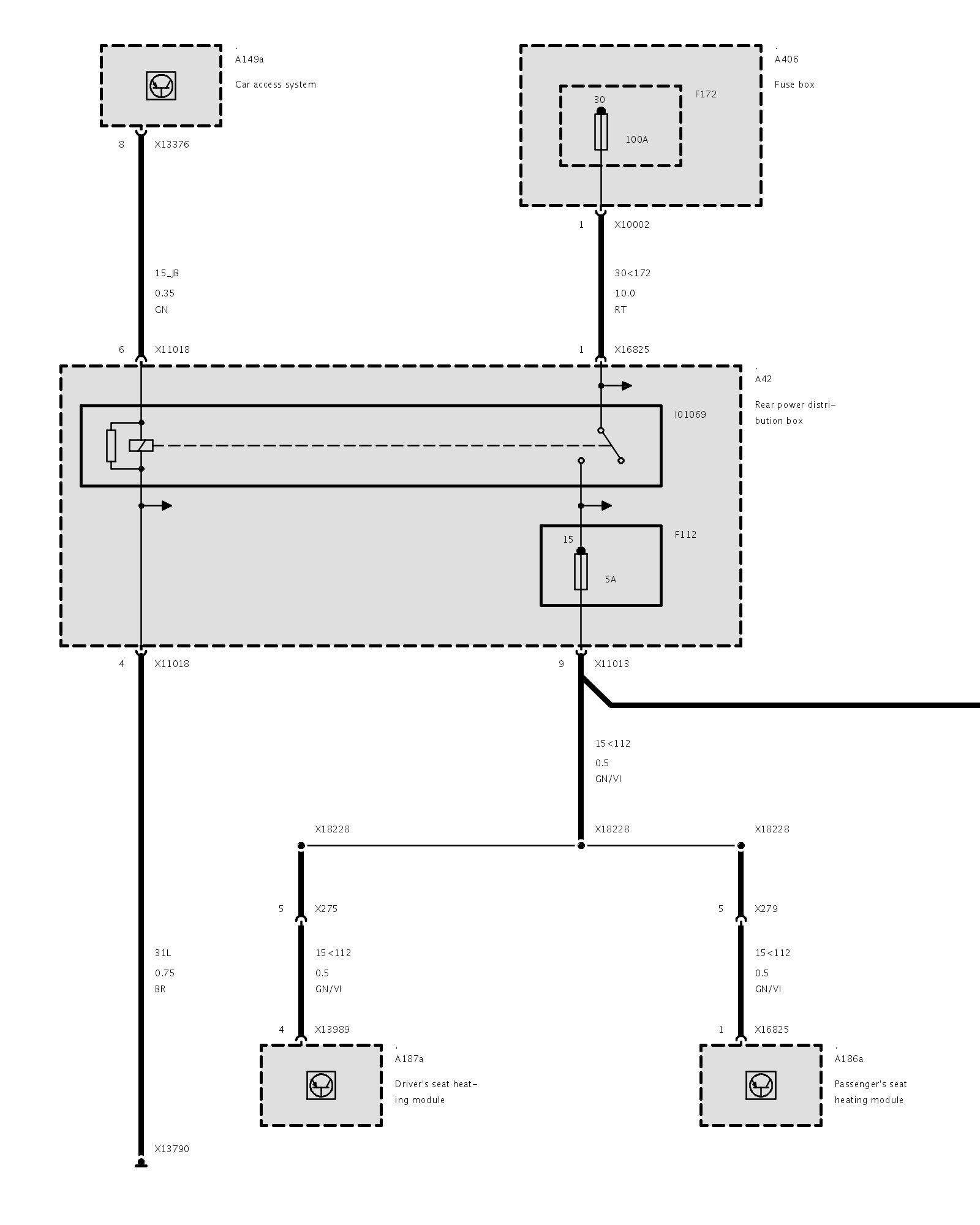

Part 1:

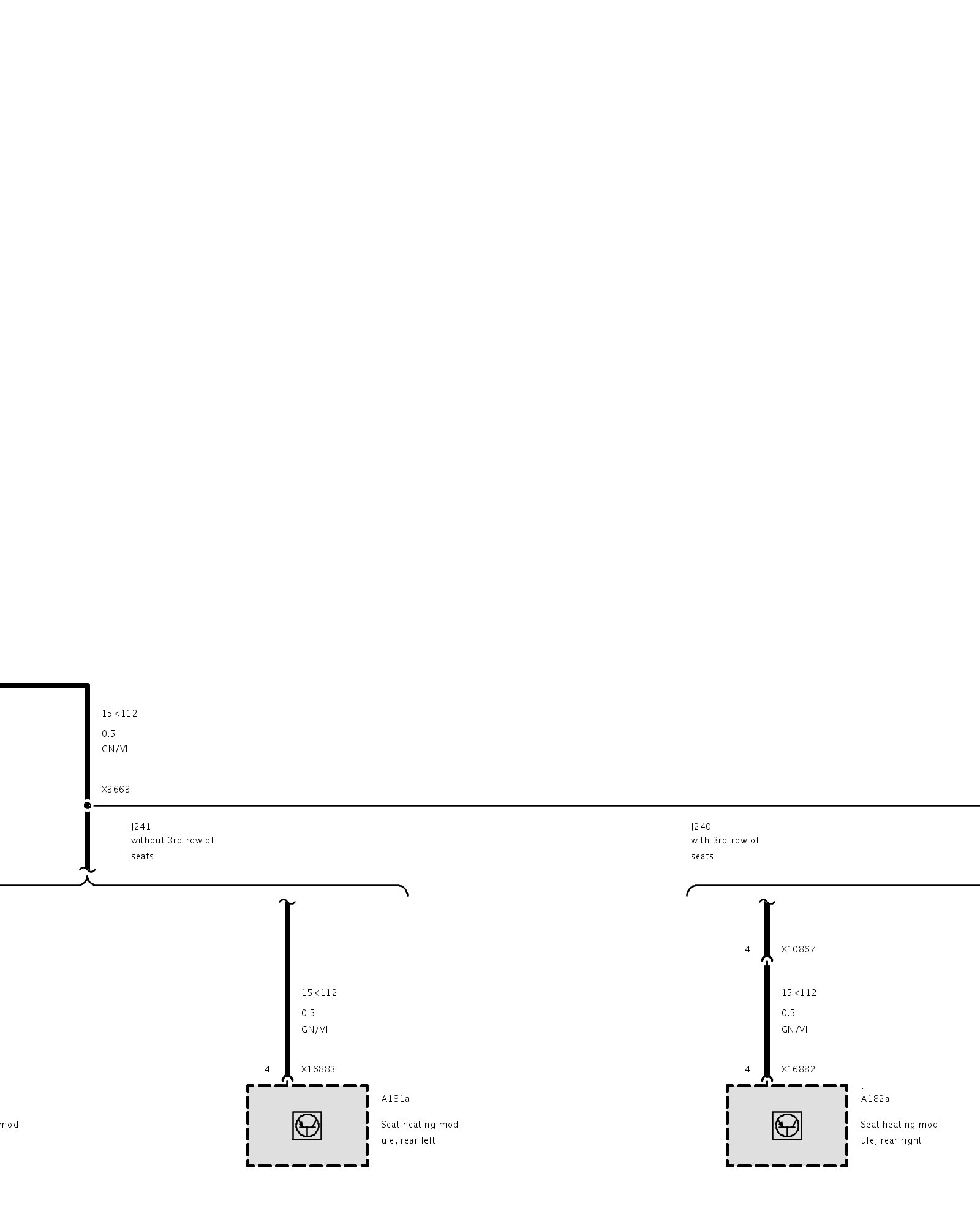

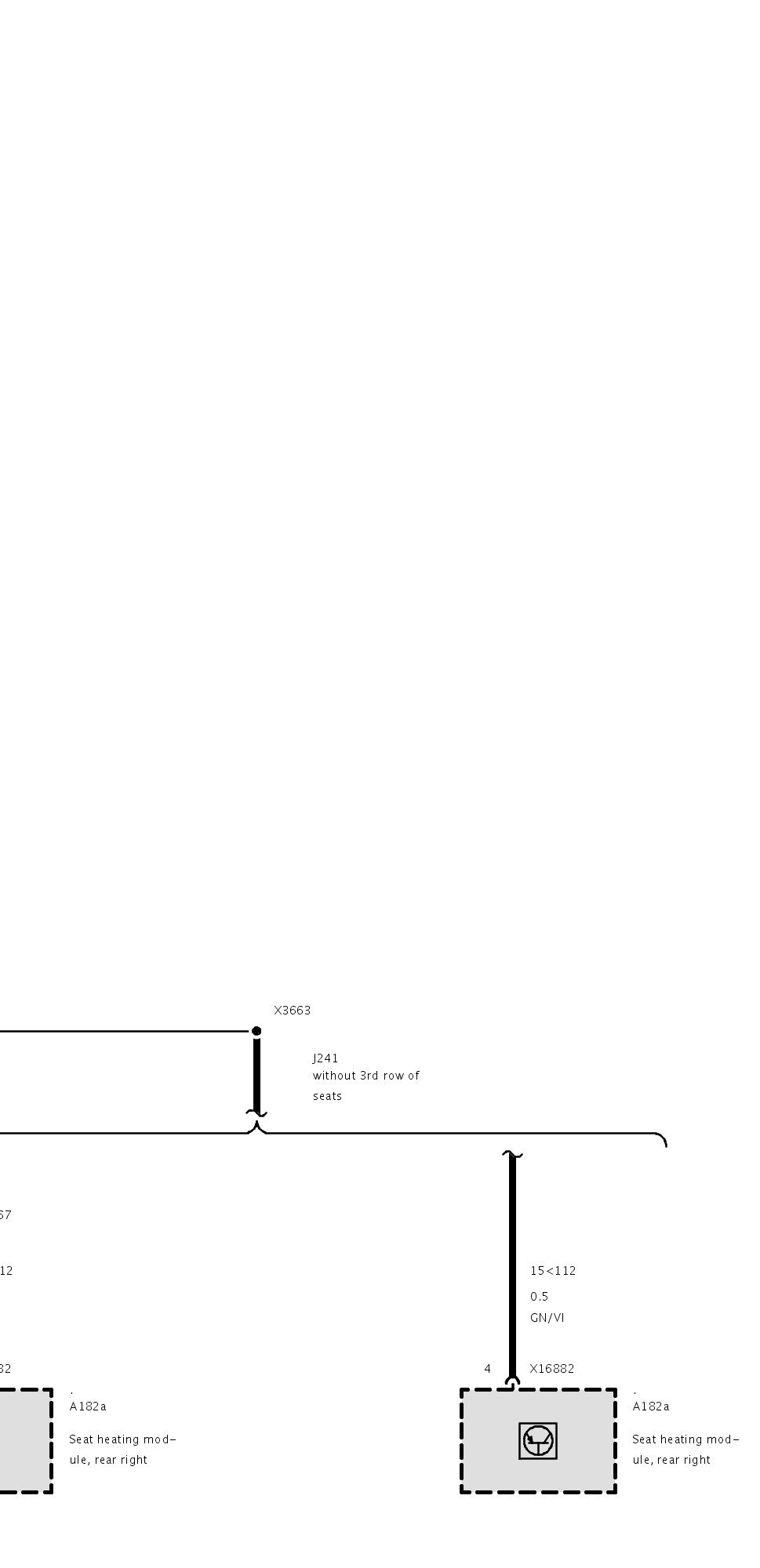

Part 2:

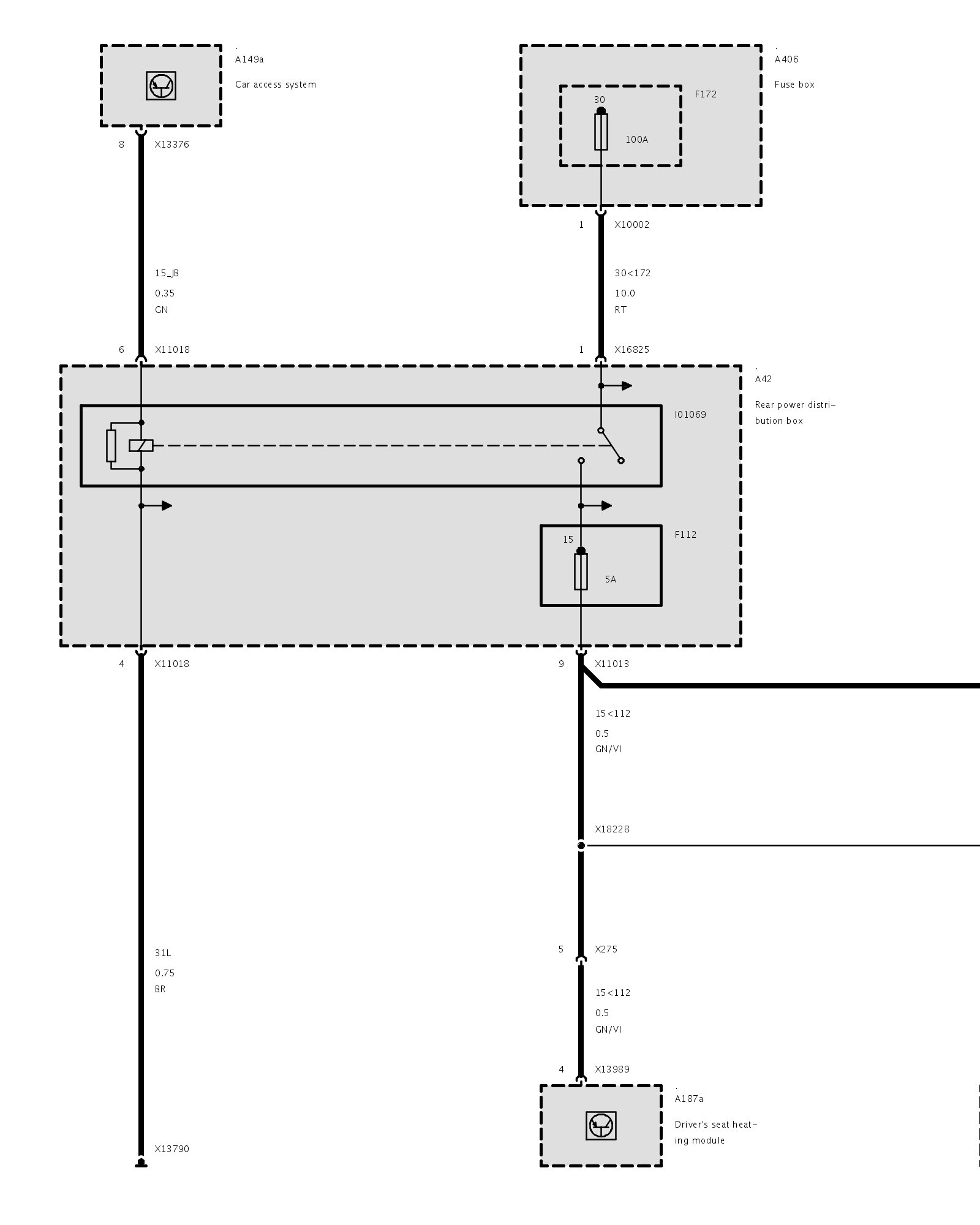

Part 1:

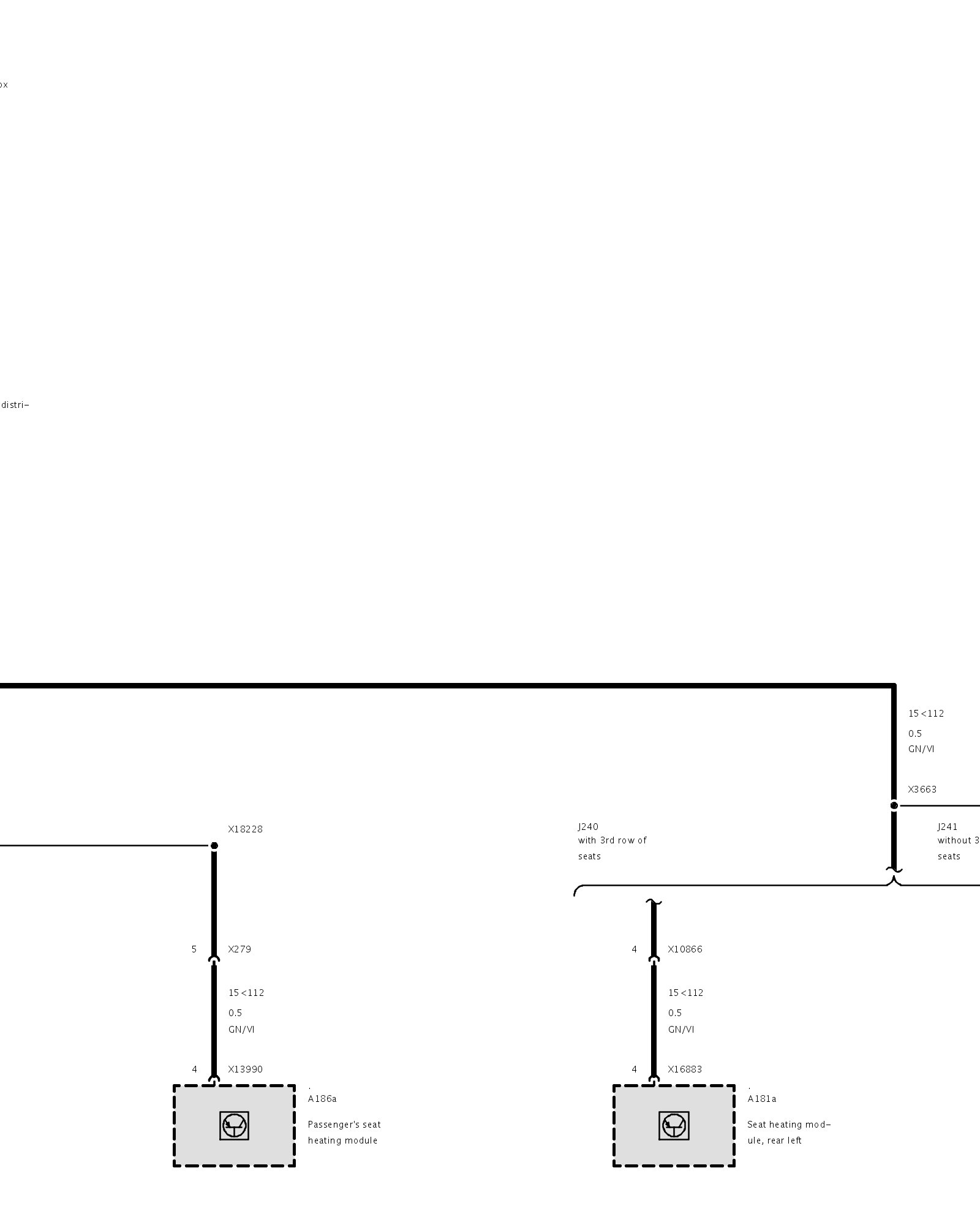

Part 2:

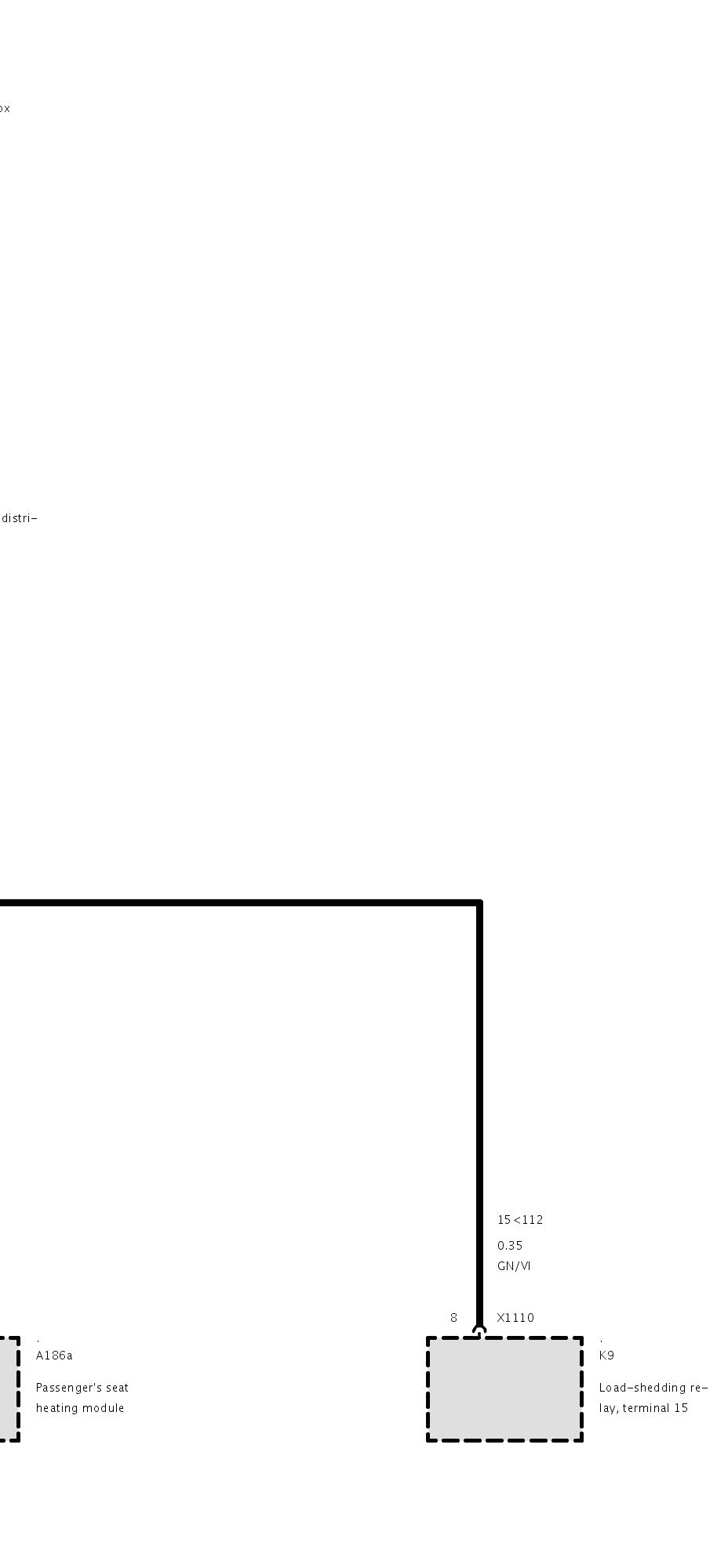

Part 3:




Part 4:
