Home
>>
BMW
>>
2009
>>
X6 (E71) L6-3.0L Turbo (N54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>

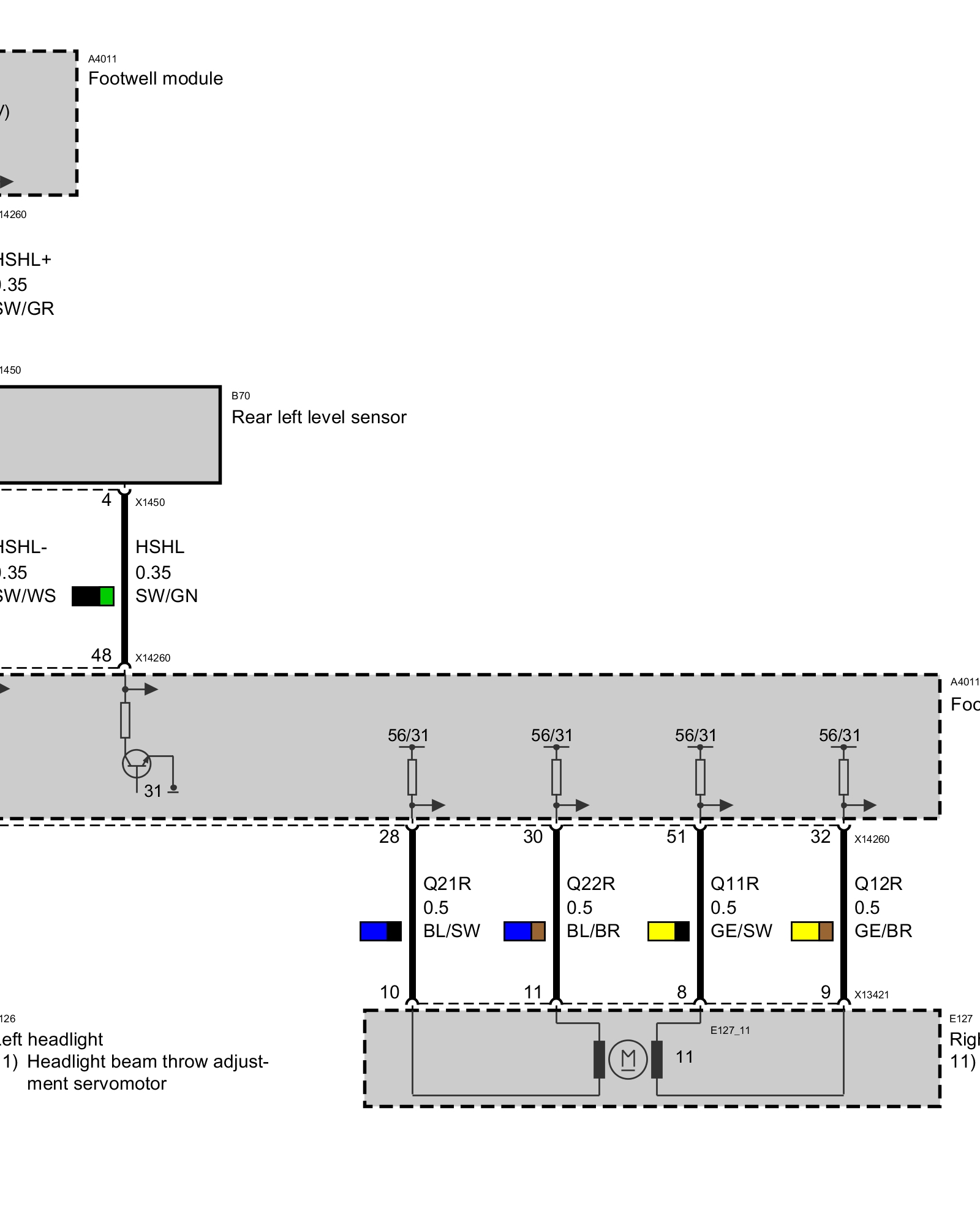

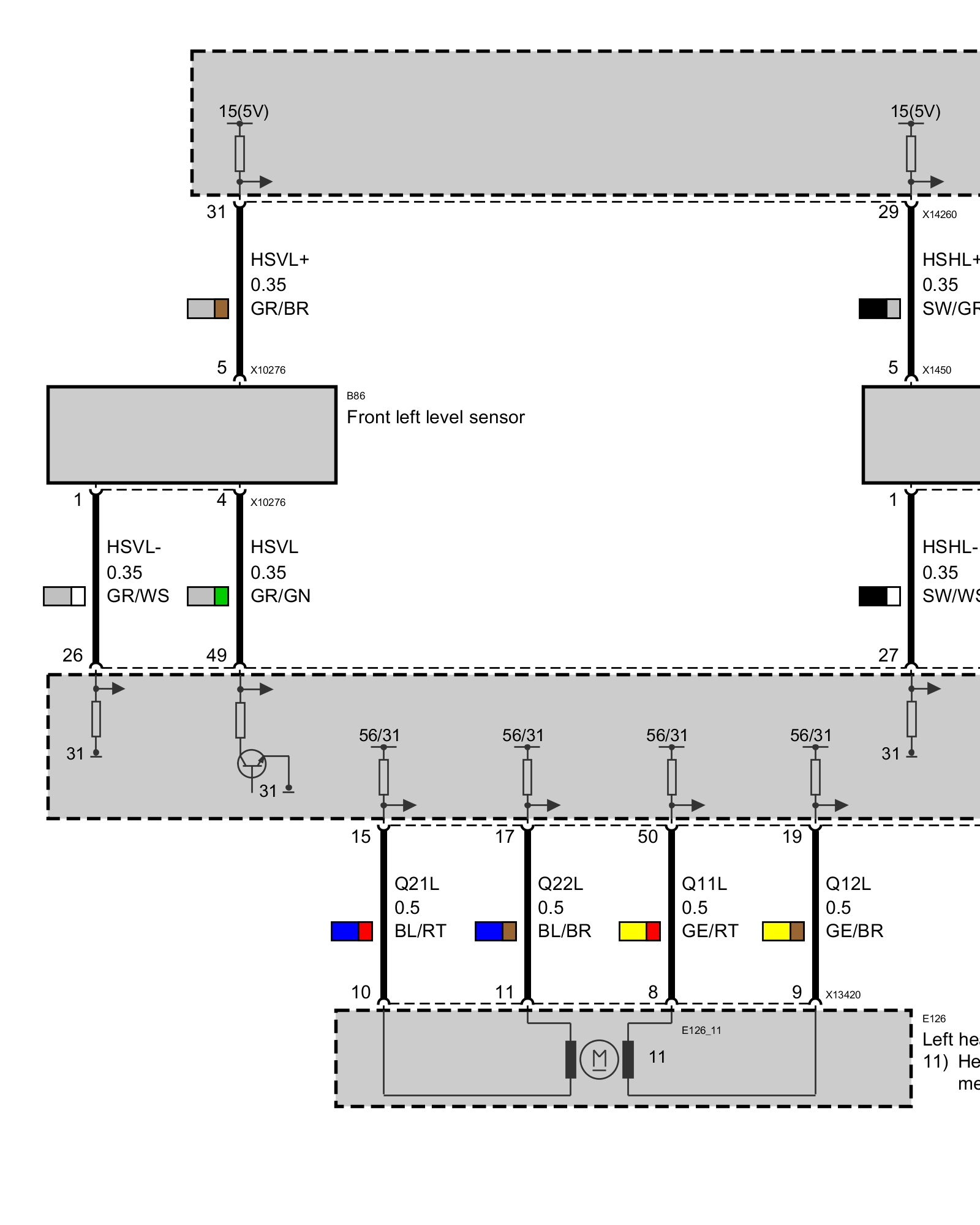

Dynamic Headlight Vertical Aim Control
Dynamic Headlight Vertical Aim Control
Dynamic Headlight Vertical Aim Control
