A11a Heating/Air Conditioning System



A11a Heating/Air Conditioning System (IHKA High)

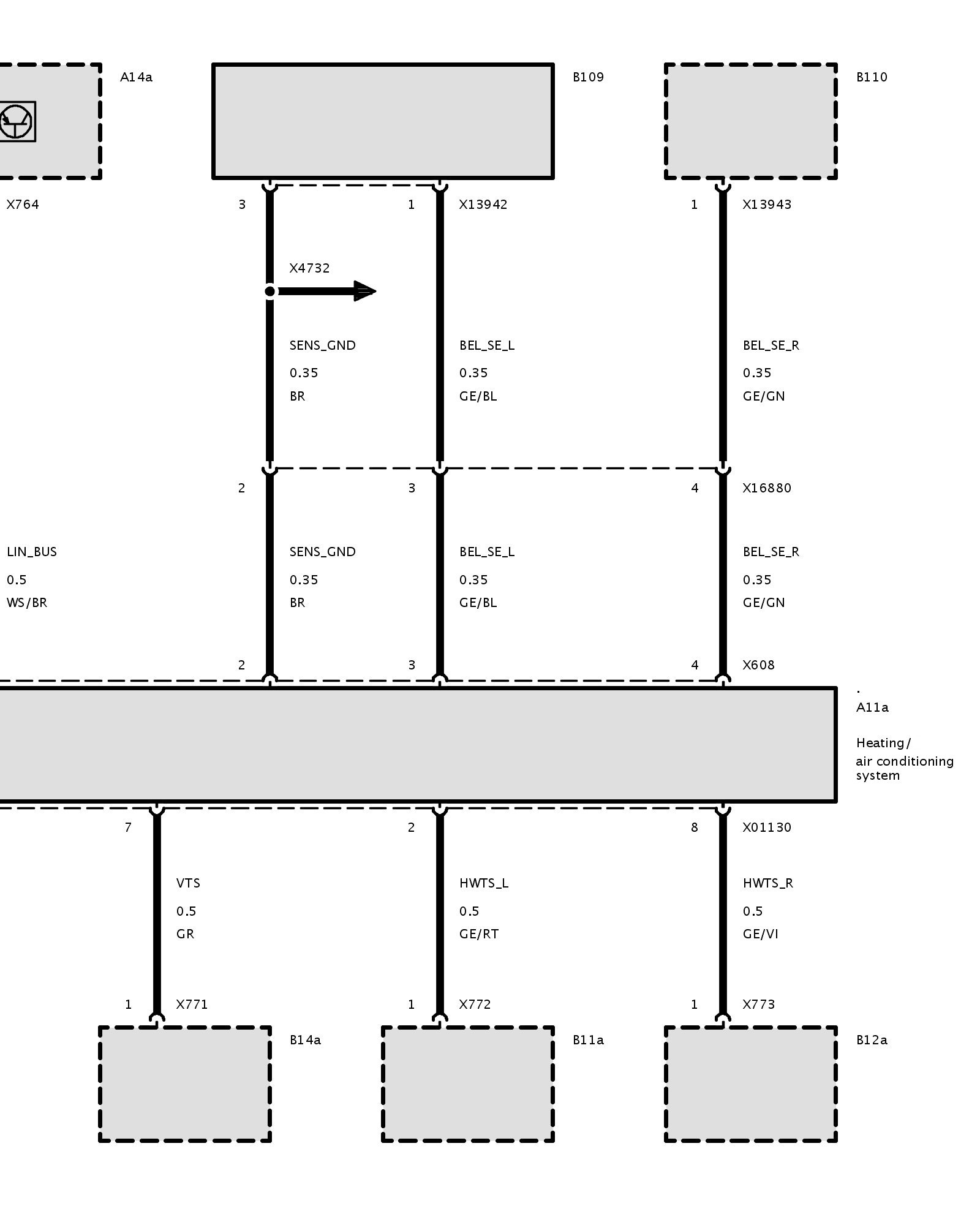

Part 1:

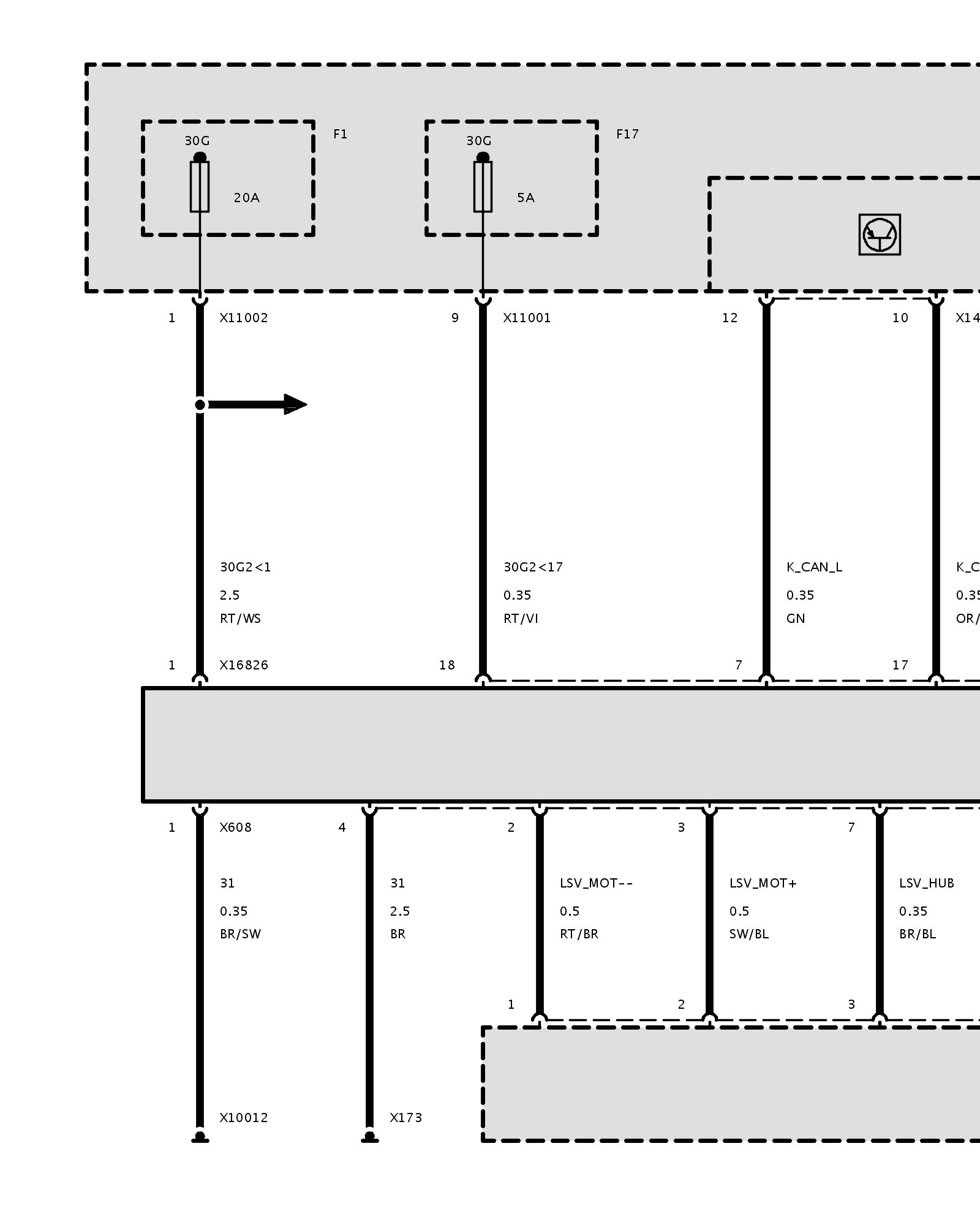

Part 2:

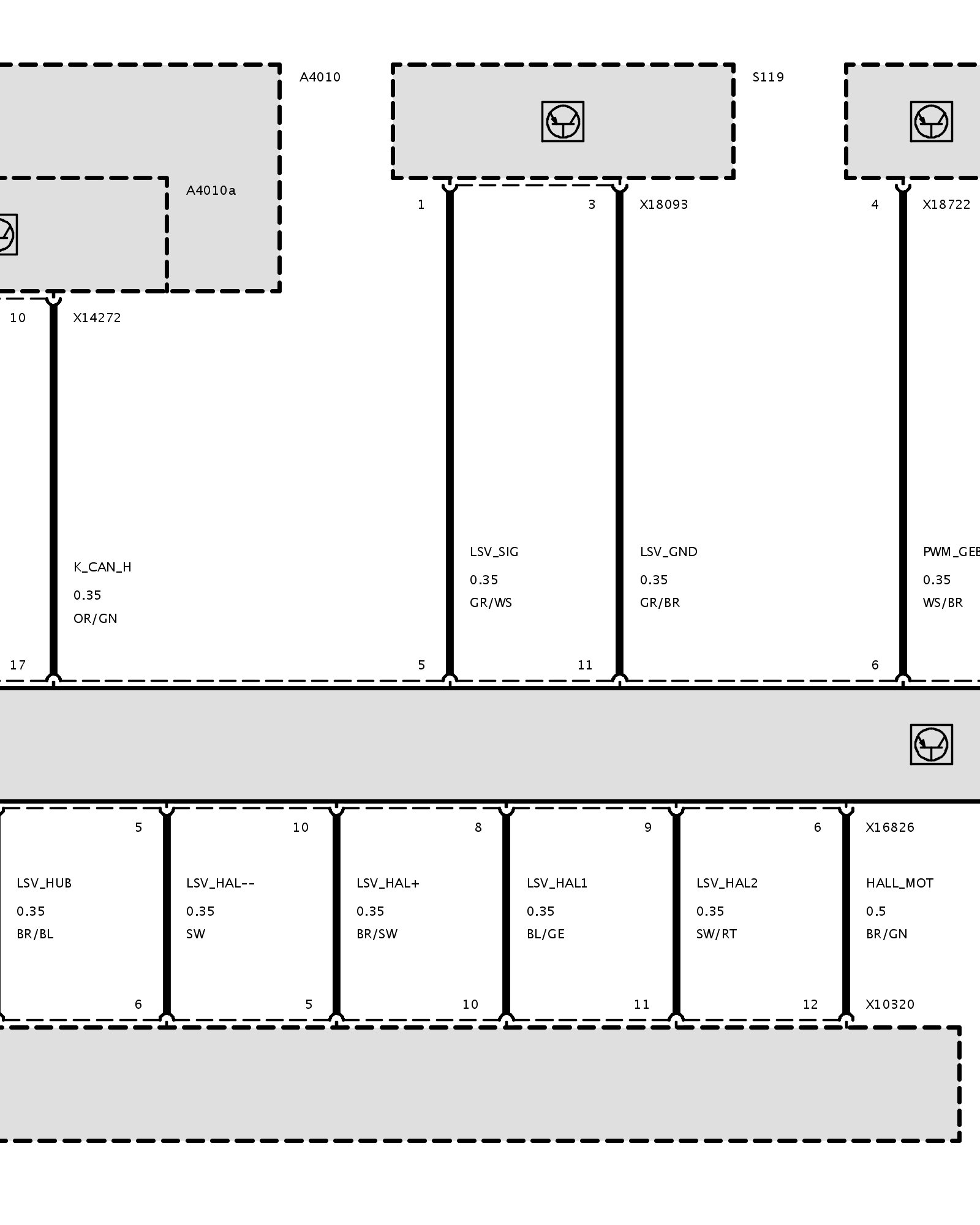

Part 3:

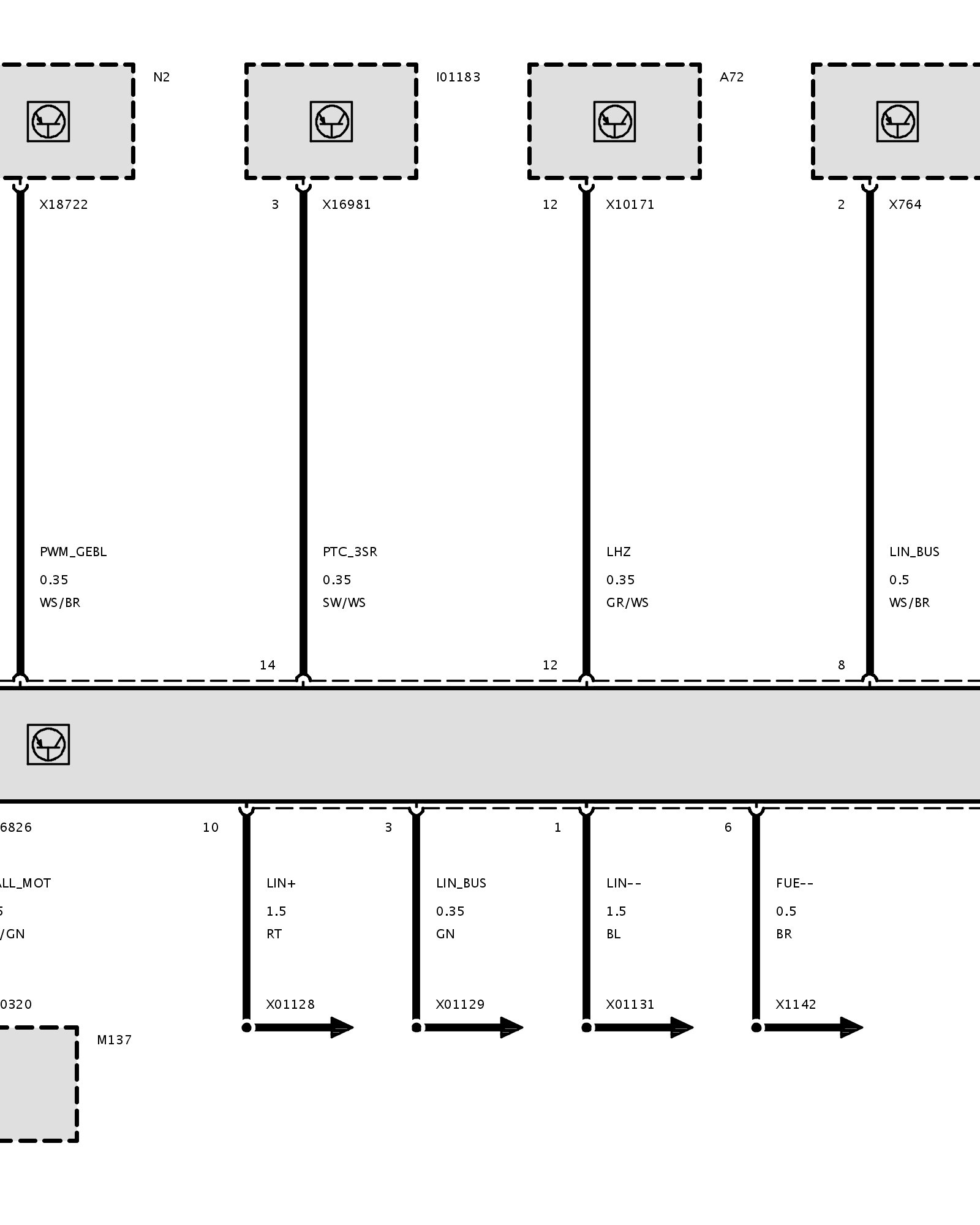

Part 4:
