Home >> BMW >> 2009 >> X6 (E71) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> System Diagram >> Supply, Integrated Chassis Management (ICM)

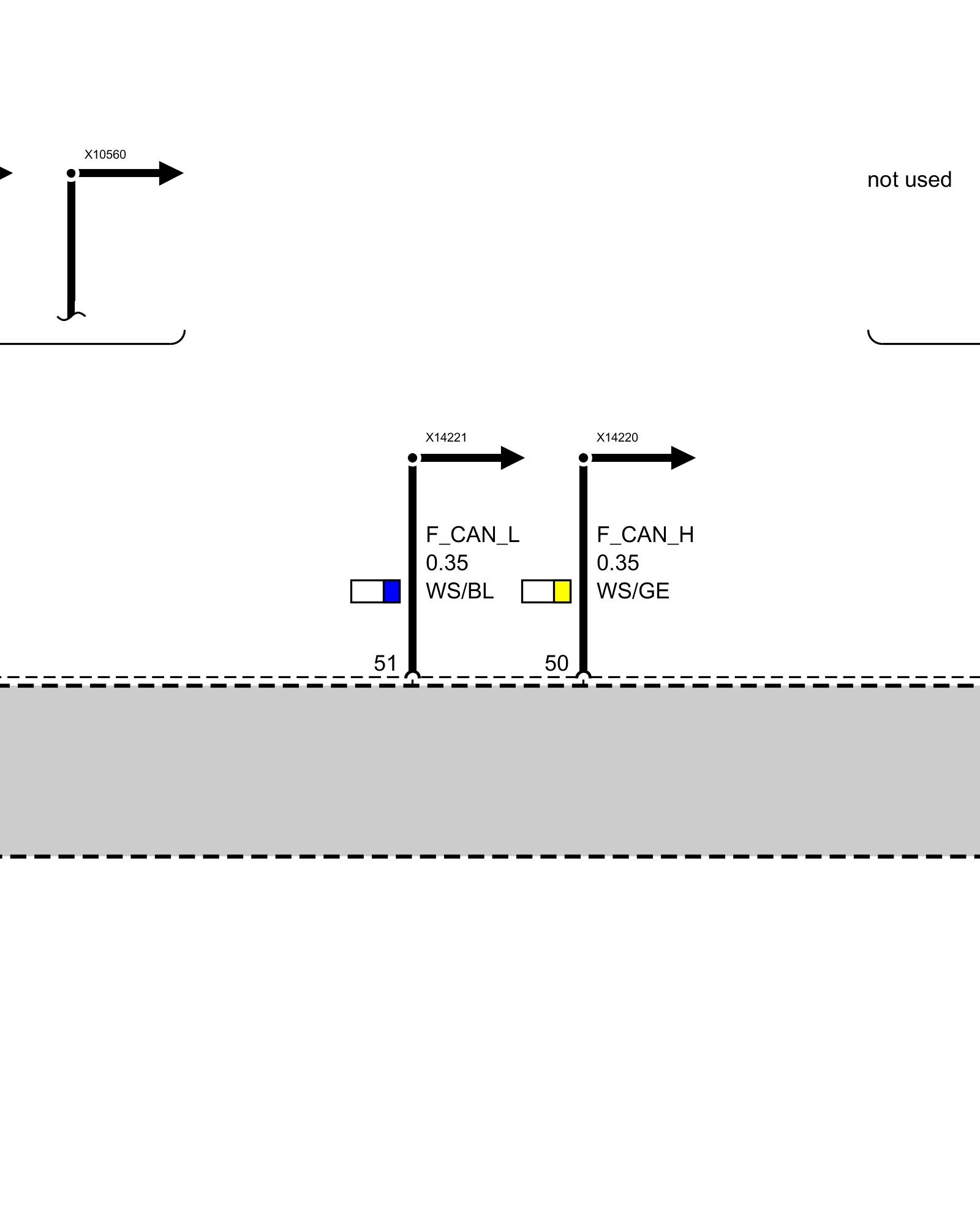

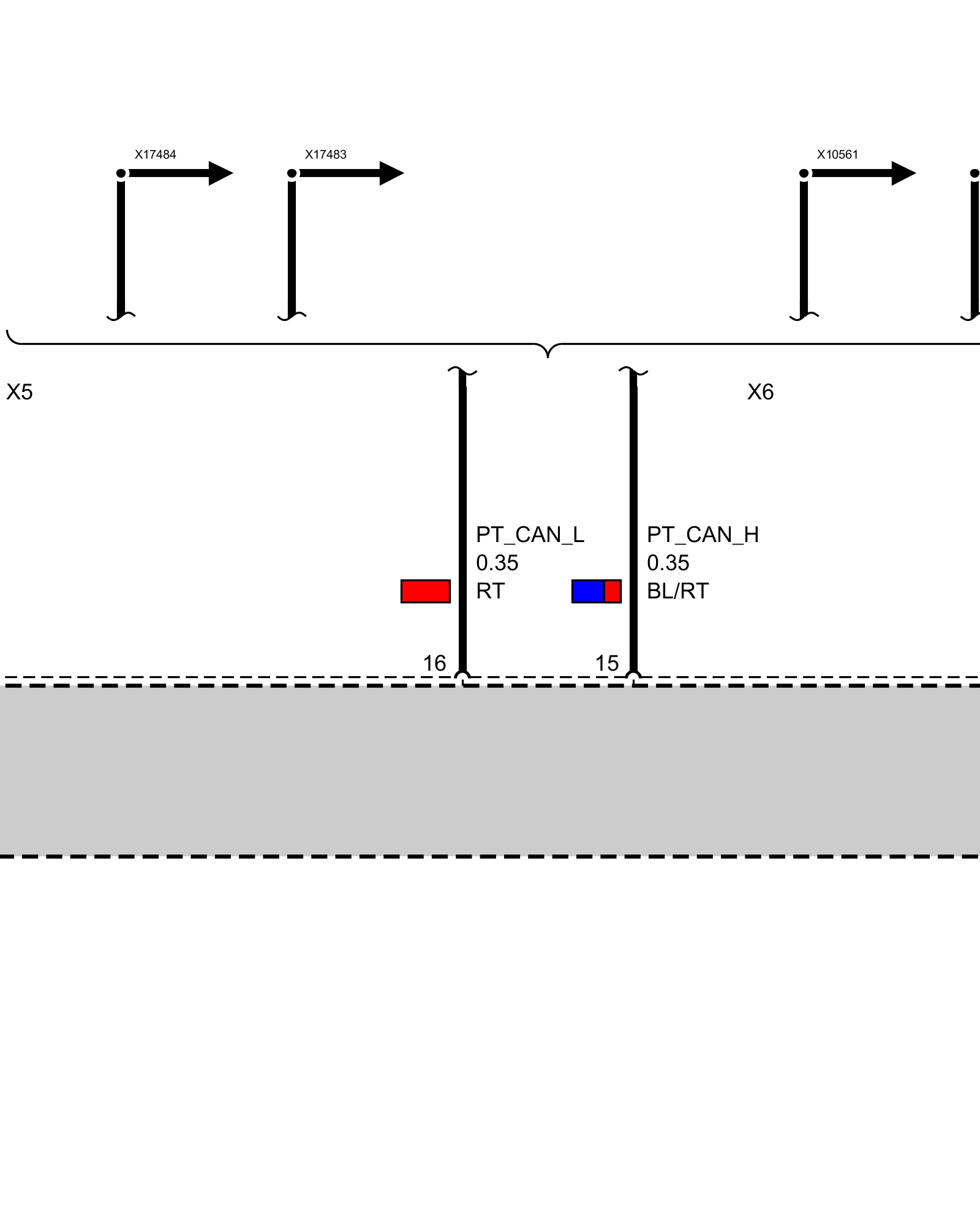

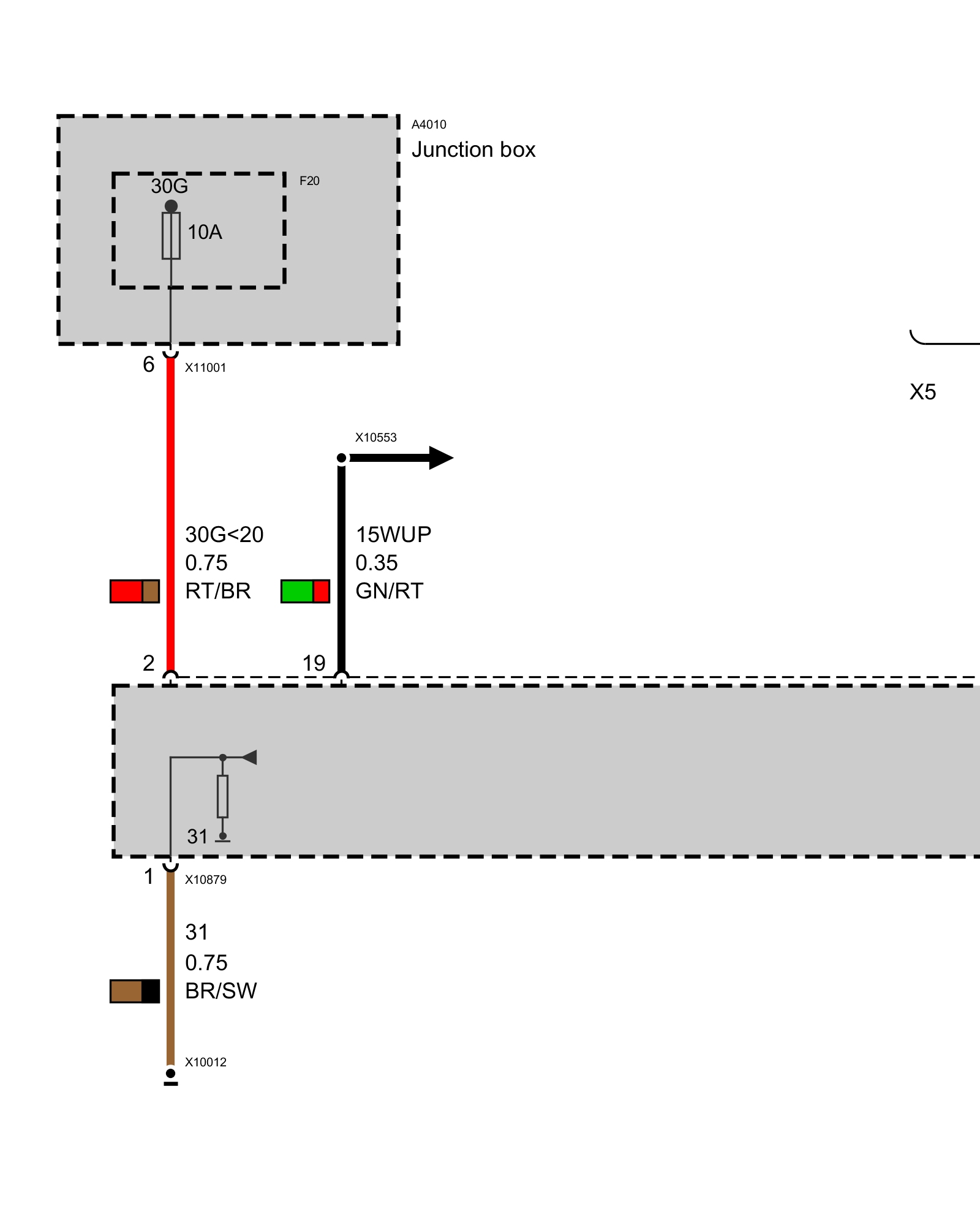

Supply, Integrated Chassis Management (ICM)



Supply, Integrated Chassis Management (ICM)
