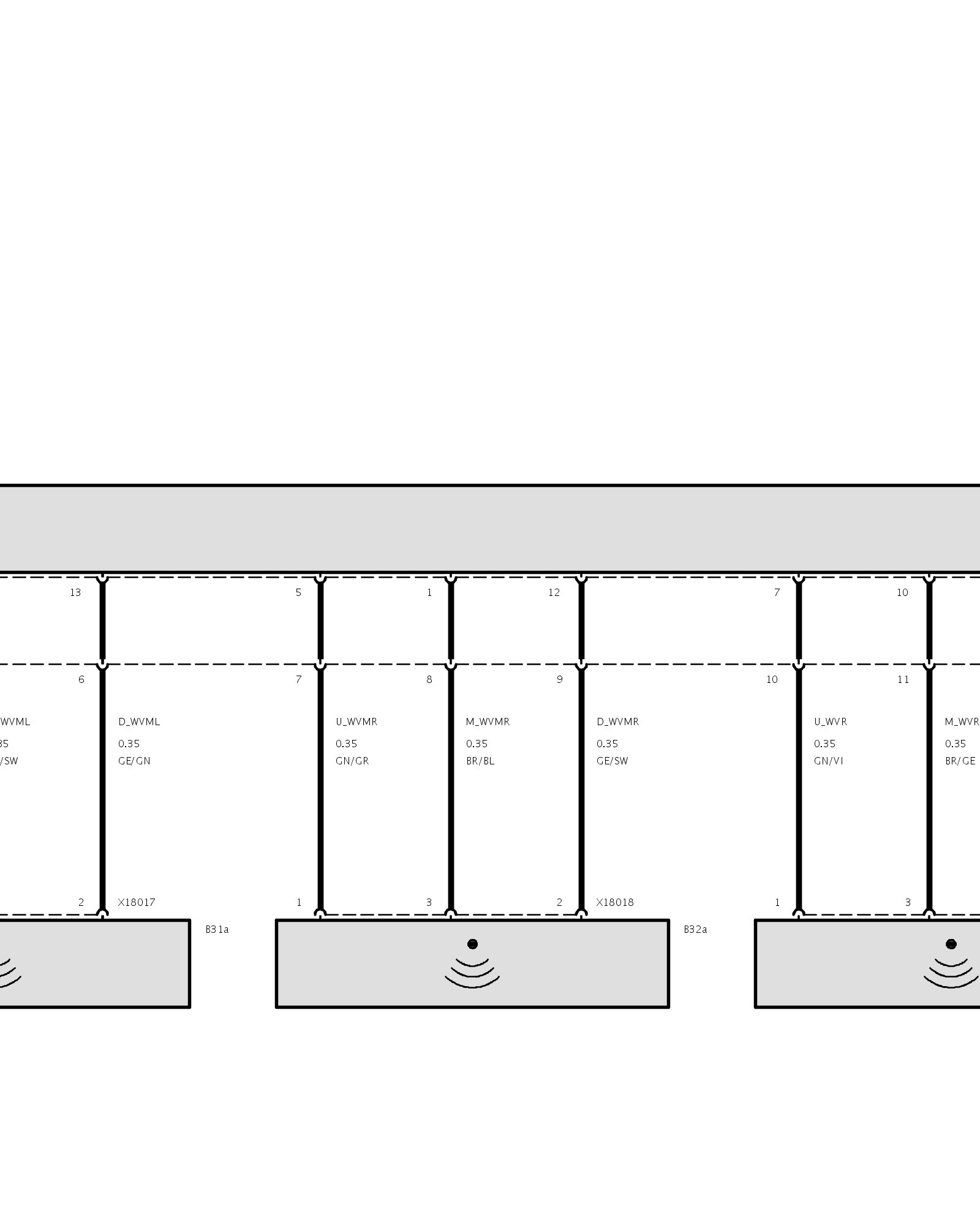

A81a Park Distance Control (PDC)



A81a Park Distance Control (PDC)

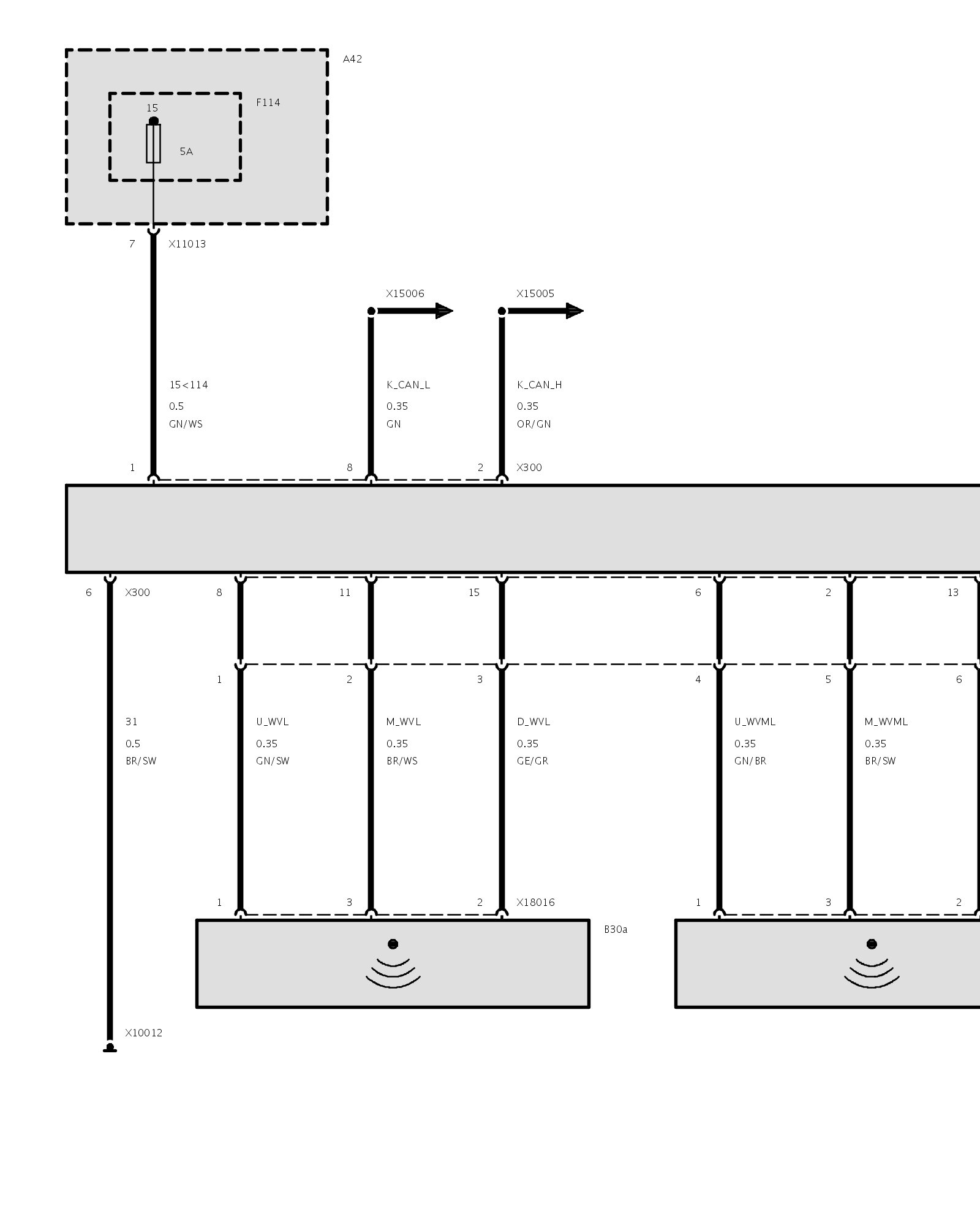

Part 1:

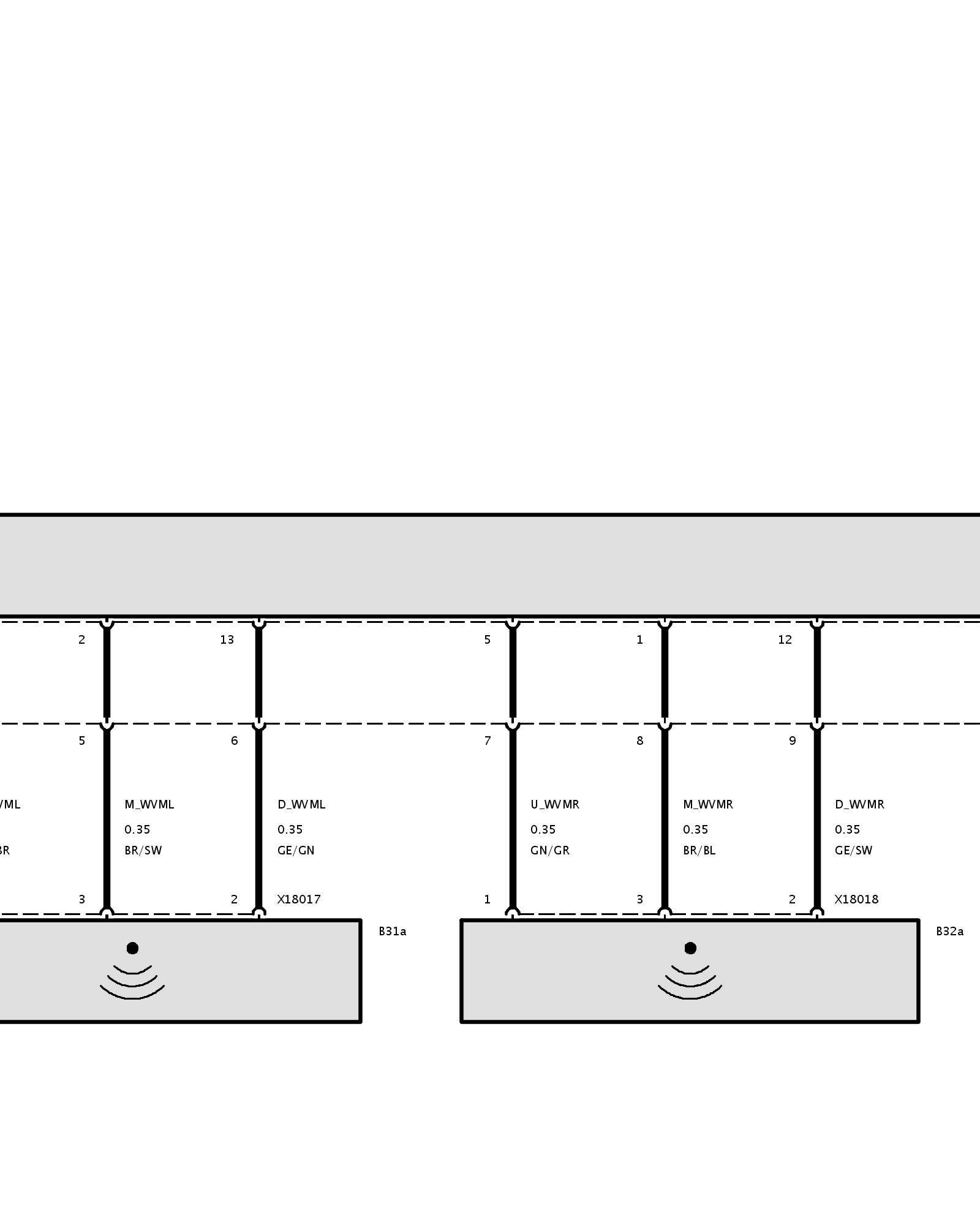

Part 2:

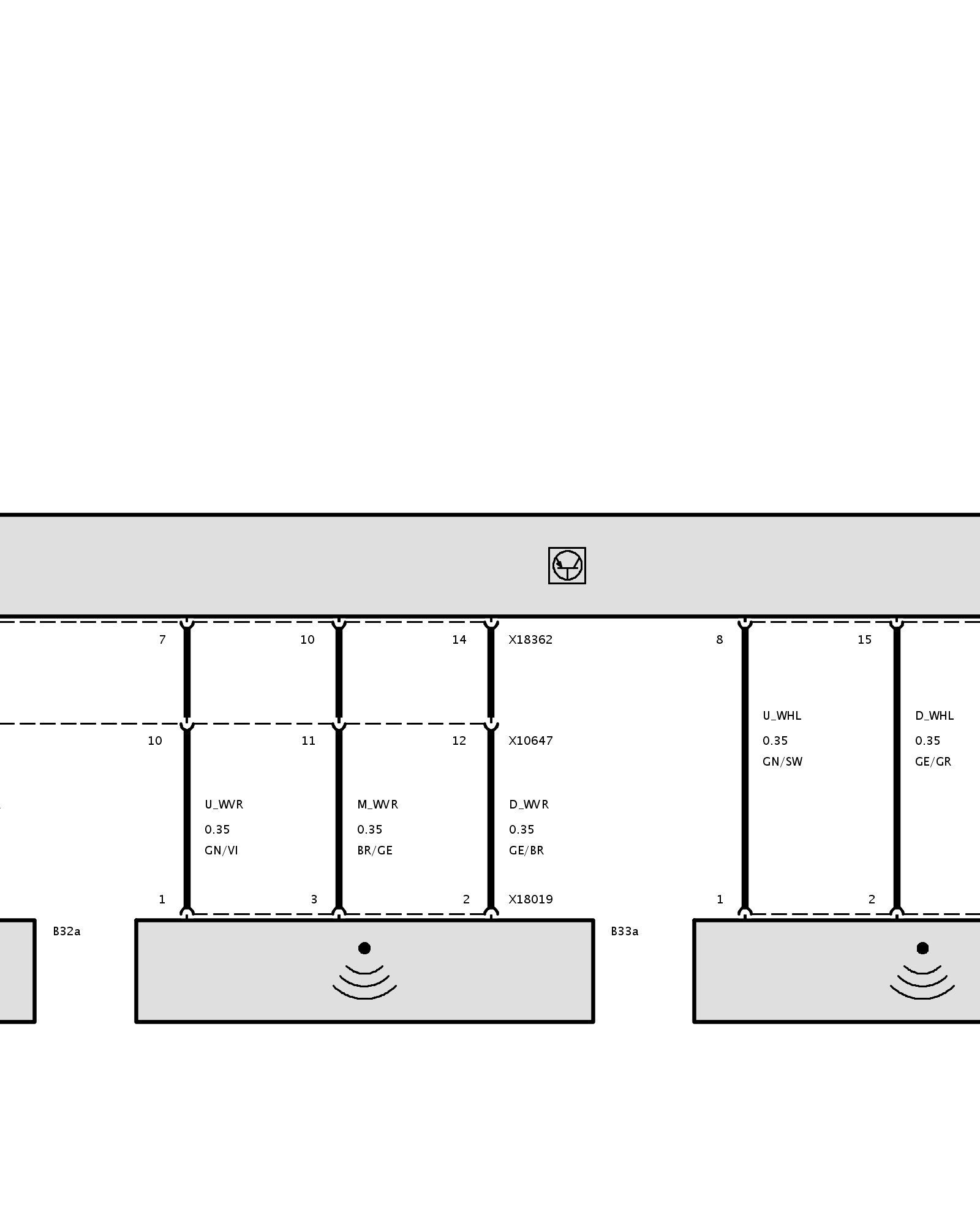

Part 3:

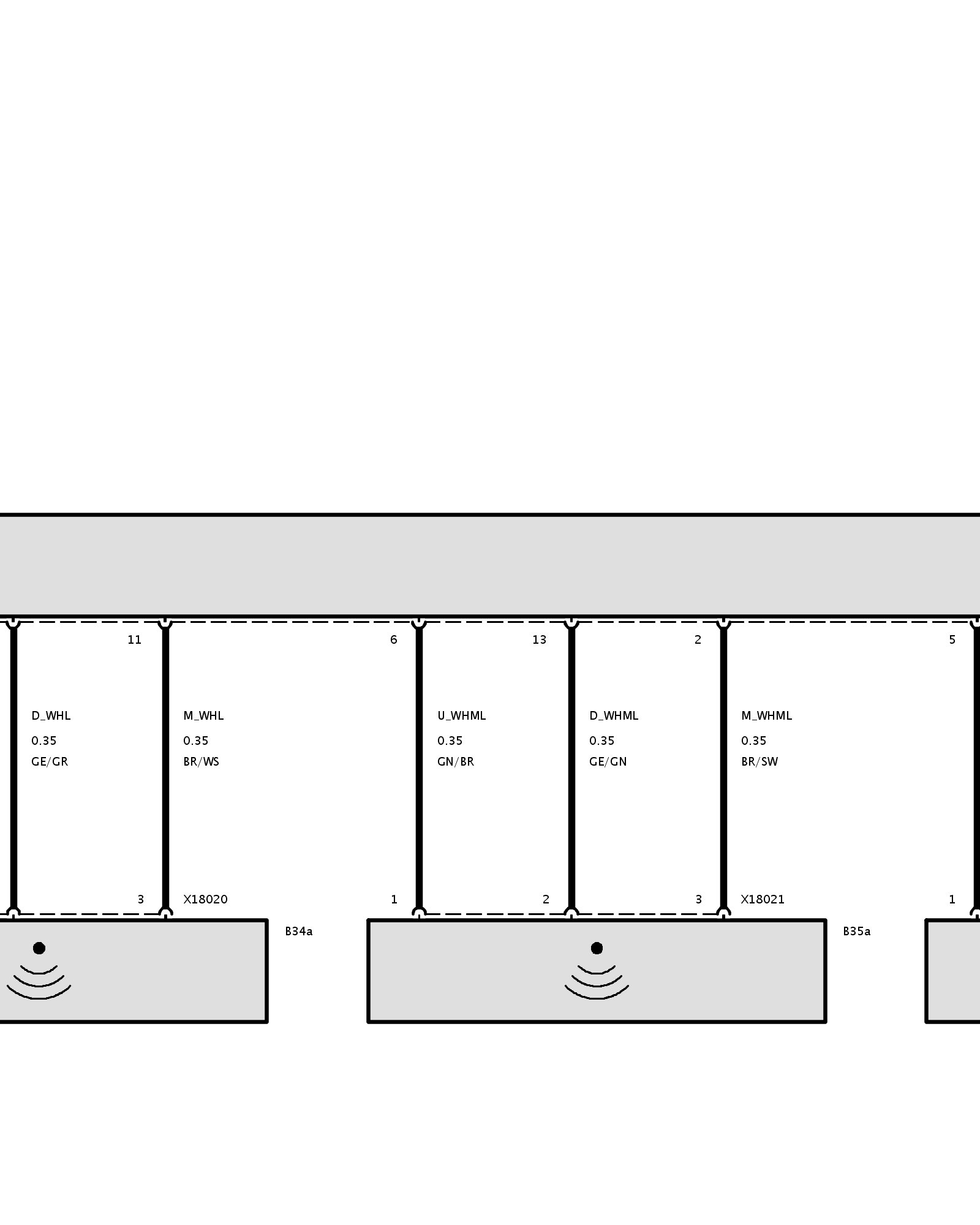

Part 4:

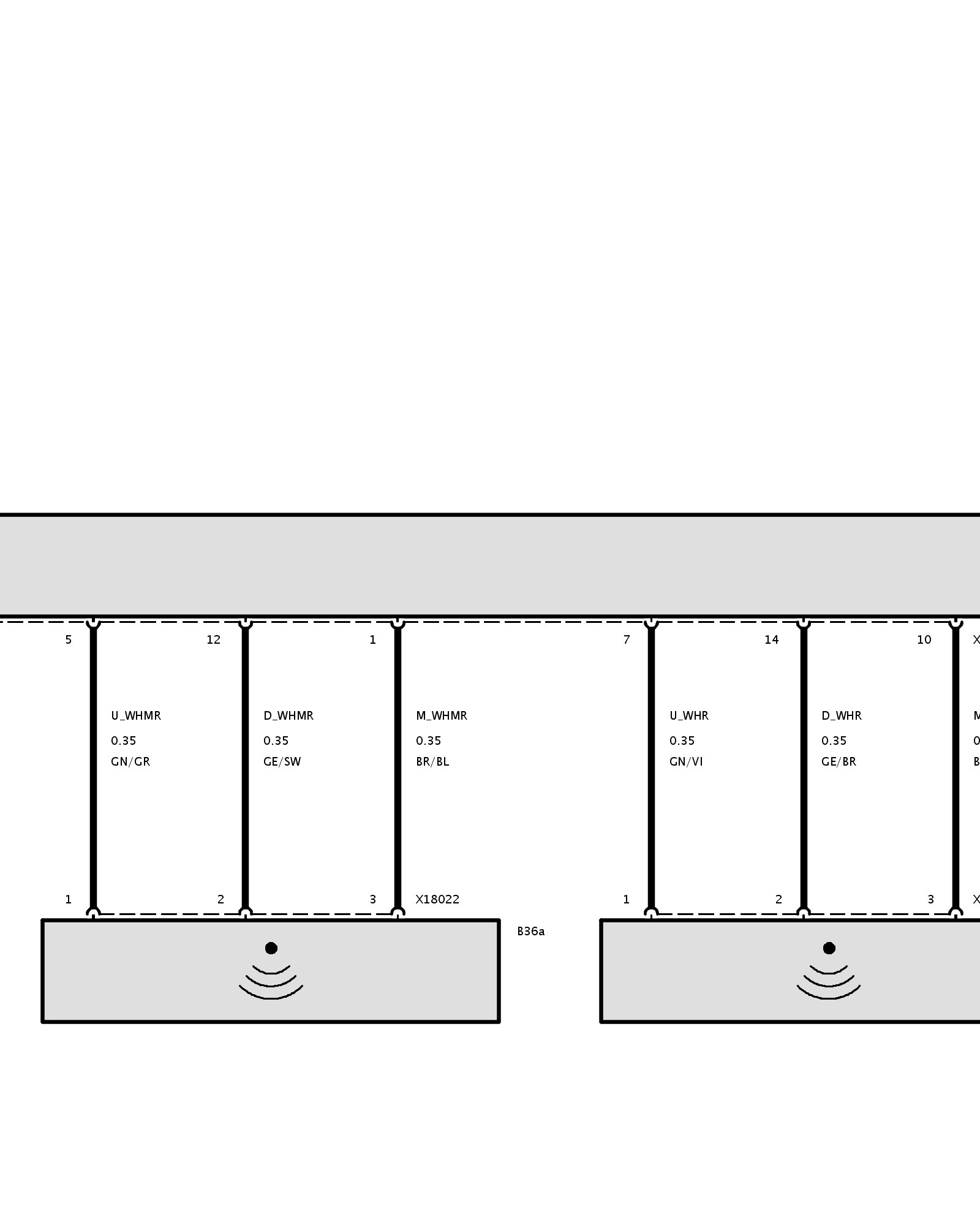

Part 5:

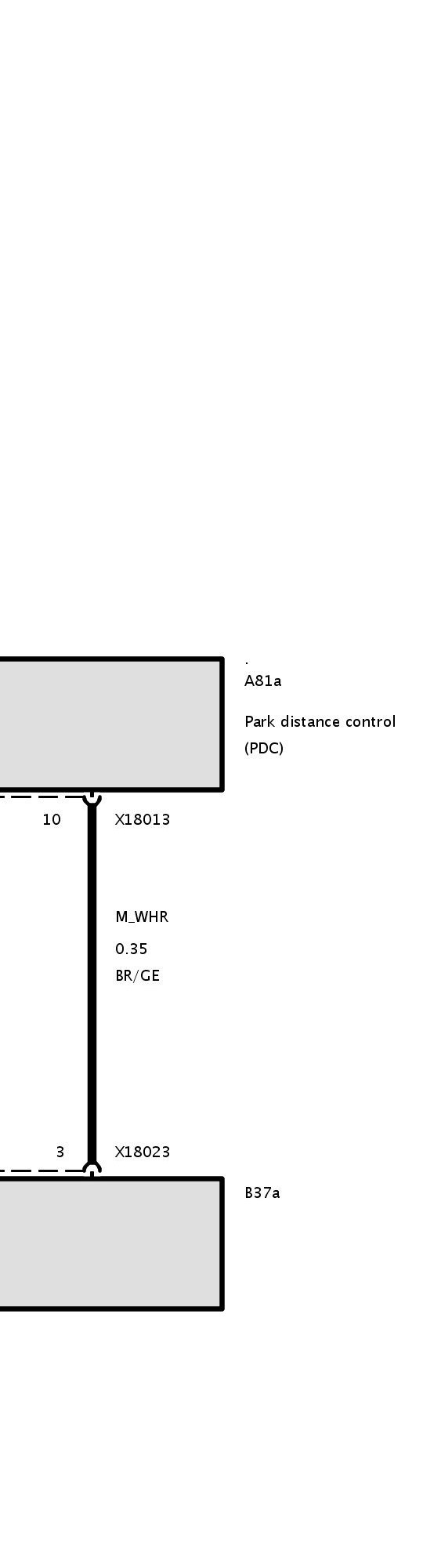

Part 6:






Part 1:




Part 2:

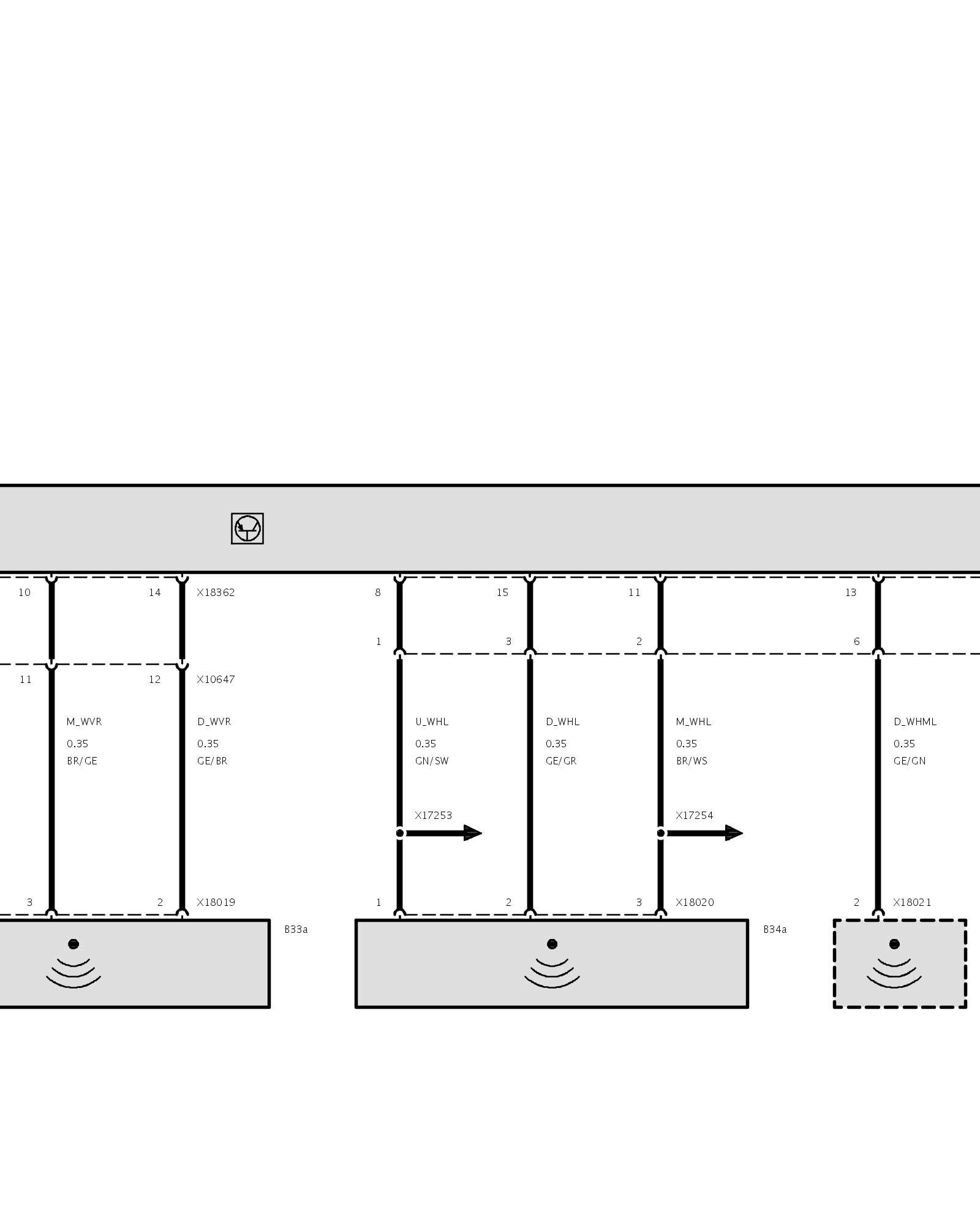

Part 3:

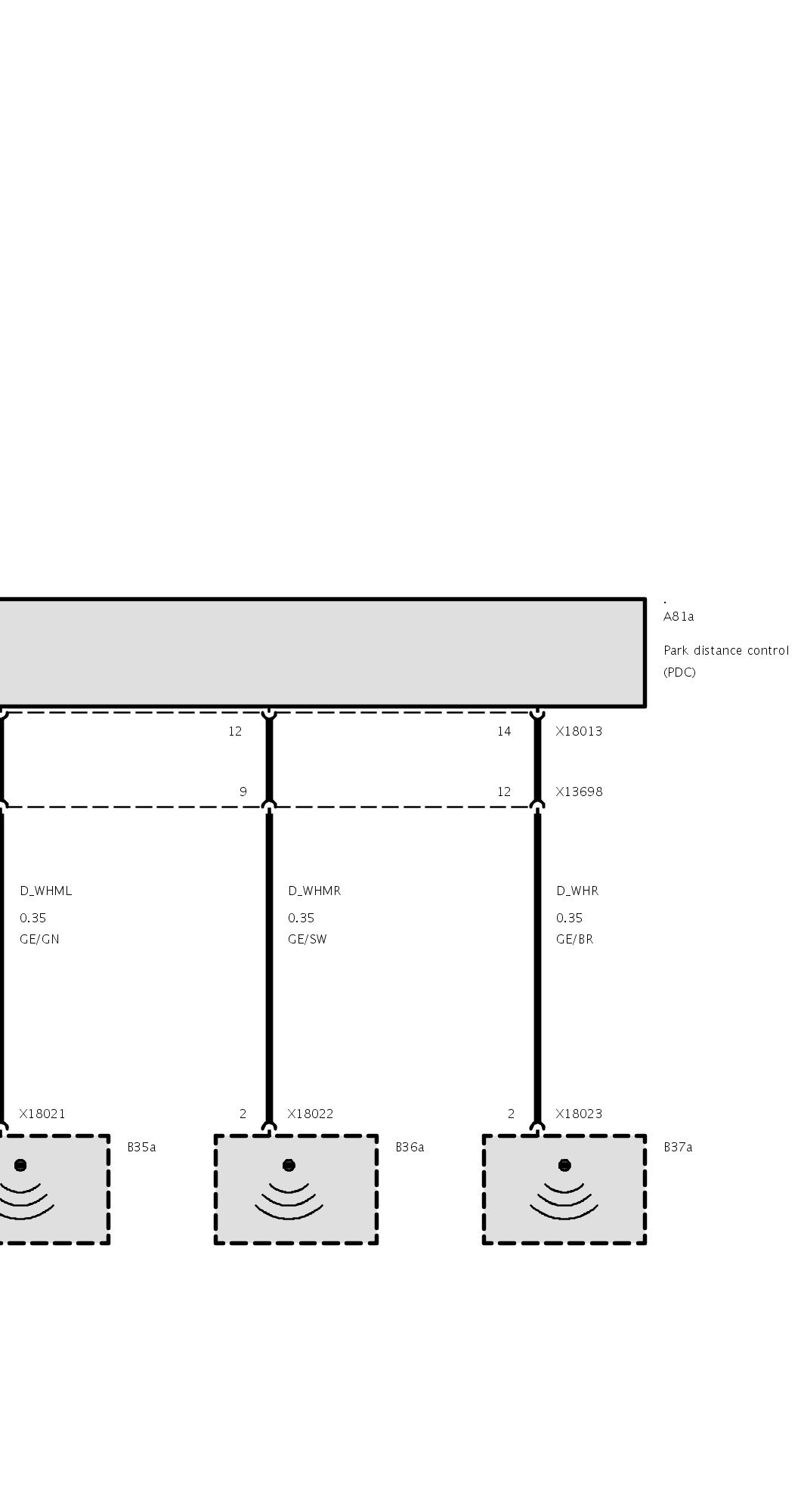

Part 4:
