Welding At Air Vent For Defrosting

Windscreen Air Duct Welding

Repair instruction for the windscreen air duct welding

Cause
Welding of the upper and lower part on the outer left and right or in the centre in the area of the transition to the climate control has cracked or was poorly executed, see illustration.

Repair instruction
- Check the welding of the windscreen air duct
- If the welding is defective, replace the windscreen air duct

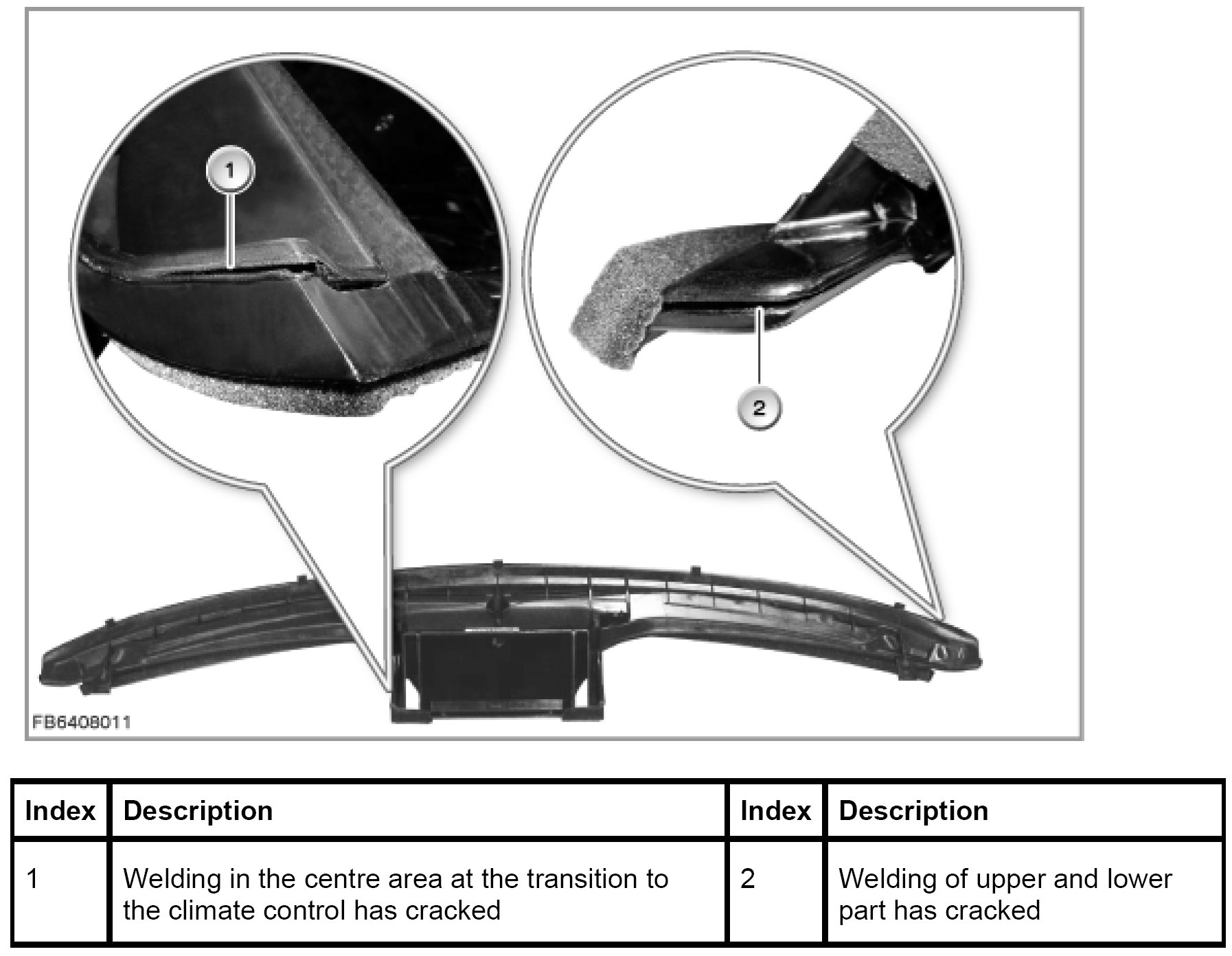

The illustration shows the windscreen air duct
