Sticker, Kneepad



Knee Protection Label

Repair instruction for grating from the centre console knee protection

Cause
The label on the inside at the knee protection is incorrectly positioned and causes grating noises when a load is applied or while the vehicle is being driven.

NOTE: Only affects model series E71

Repair instruction
- Remove the trim panel on the cup holder

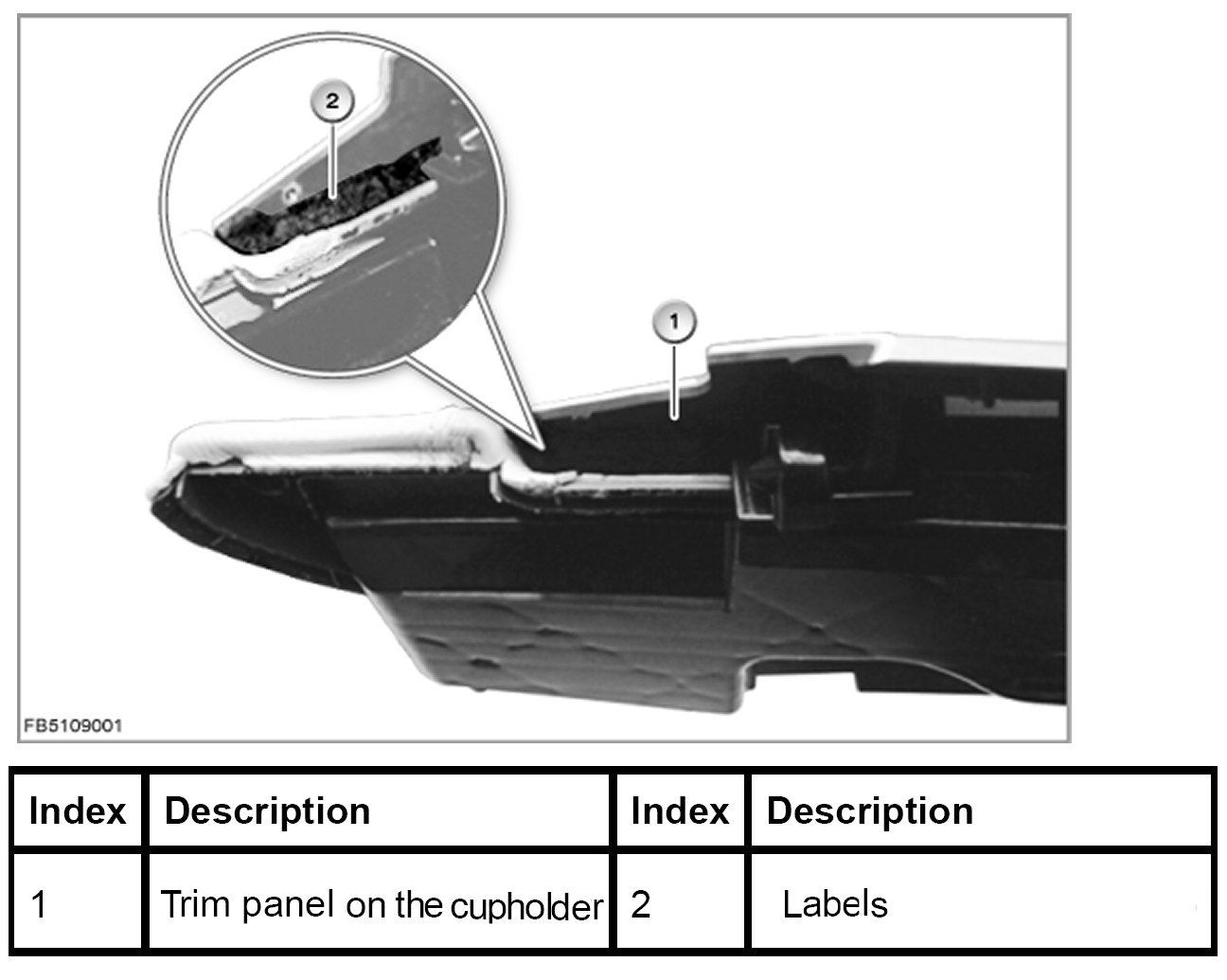

- Remove the label on the knee protection, see illustration
- Fit the trim panel on the cup holder
