Holder, Air Vent For Defrosting

Windscreen Air Duct Bracket

Repair instruction for the windscreen air duct bracket
The noise can be reproduced by pressing in the area of the A-pillar and windscreen.

Cause
The outer bracket at the windscreen air duct rubs on the body bracket.

Repair instruction
- Remove the windscreen air duct
- Check whether there is abrasion on the brackets

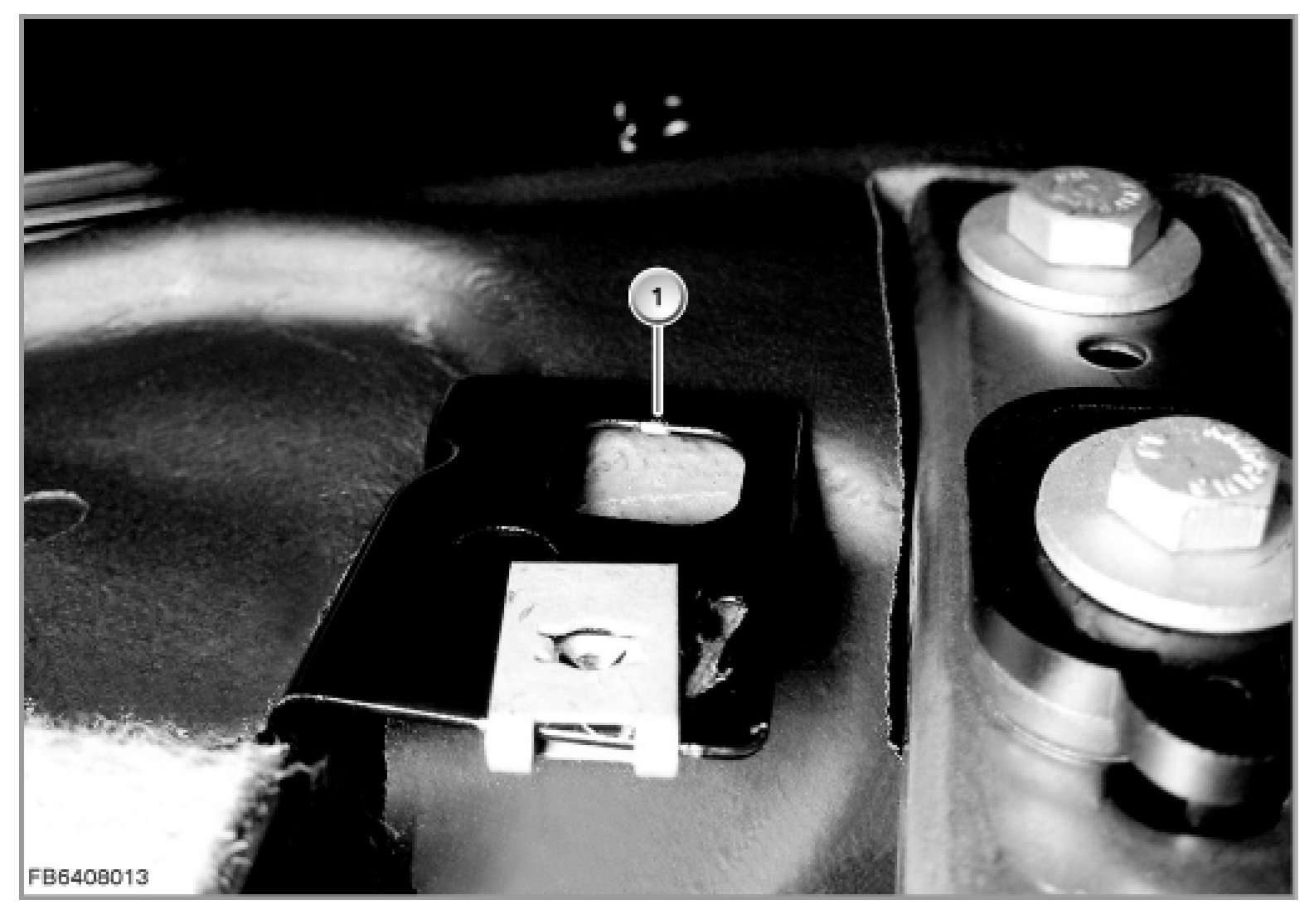

Windscreen air duct bracket







Body bracket
