52 17 034 Removing and Installing/Replacing Shaft For Head Restraint Adjustment

52 17 034 Removing And Installing/Replacing Shaft For Head Restraint Adjustment







Necessary preliminary tasks:
- Remove front seat
- Remove both rear panels
- Remove inner cover

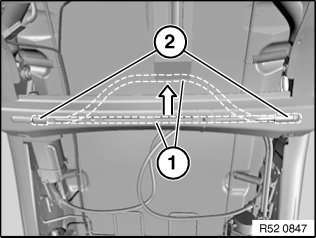

Bend shaft (1) in direction of arrow.
Pull shaft (1) out of gear (2) and remove.
