54 12 138 Removing and Installing/Replacing Rain Gutter for Glass Slide/Tilt Sunroof

54 12 138 Removing And Installing/Replacing Rain Gutter For Glass Slide/tilt Sunroof







Necessary preliminary tasks:
- Remove complete glass slide/tilt sunroof (frame).

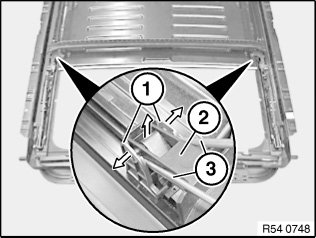

Carefully unlock holders (1) with screwdriver (3) on left/right and unclip setting lever (2) of rain channel towards top.
Remove rain channel.

Installation:
Make sure setting lever (2) is correctly engaged in holders (1).
Check function.
