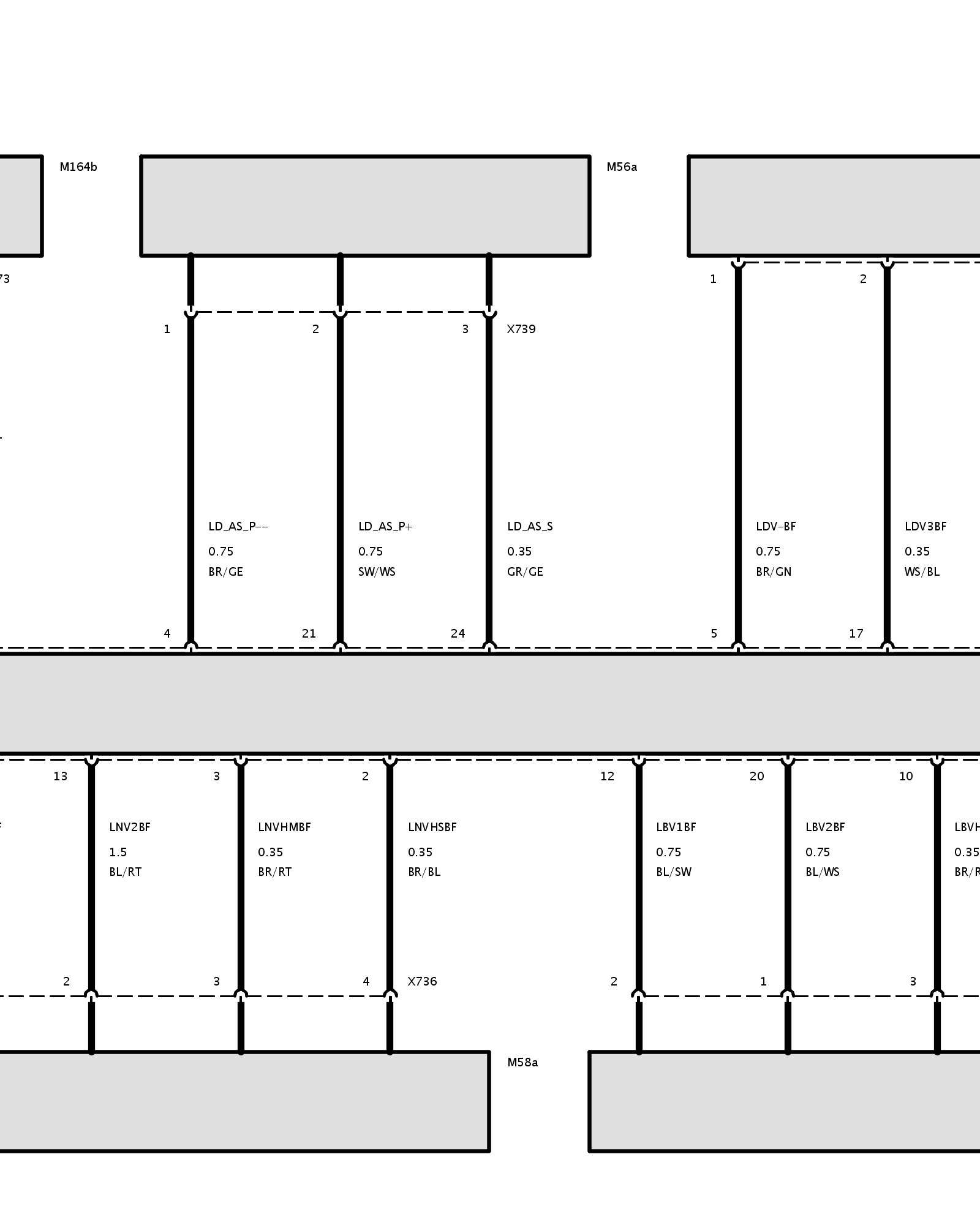

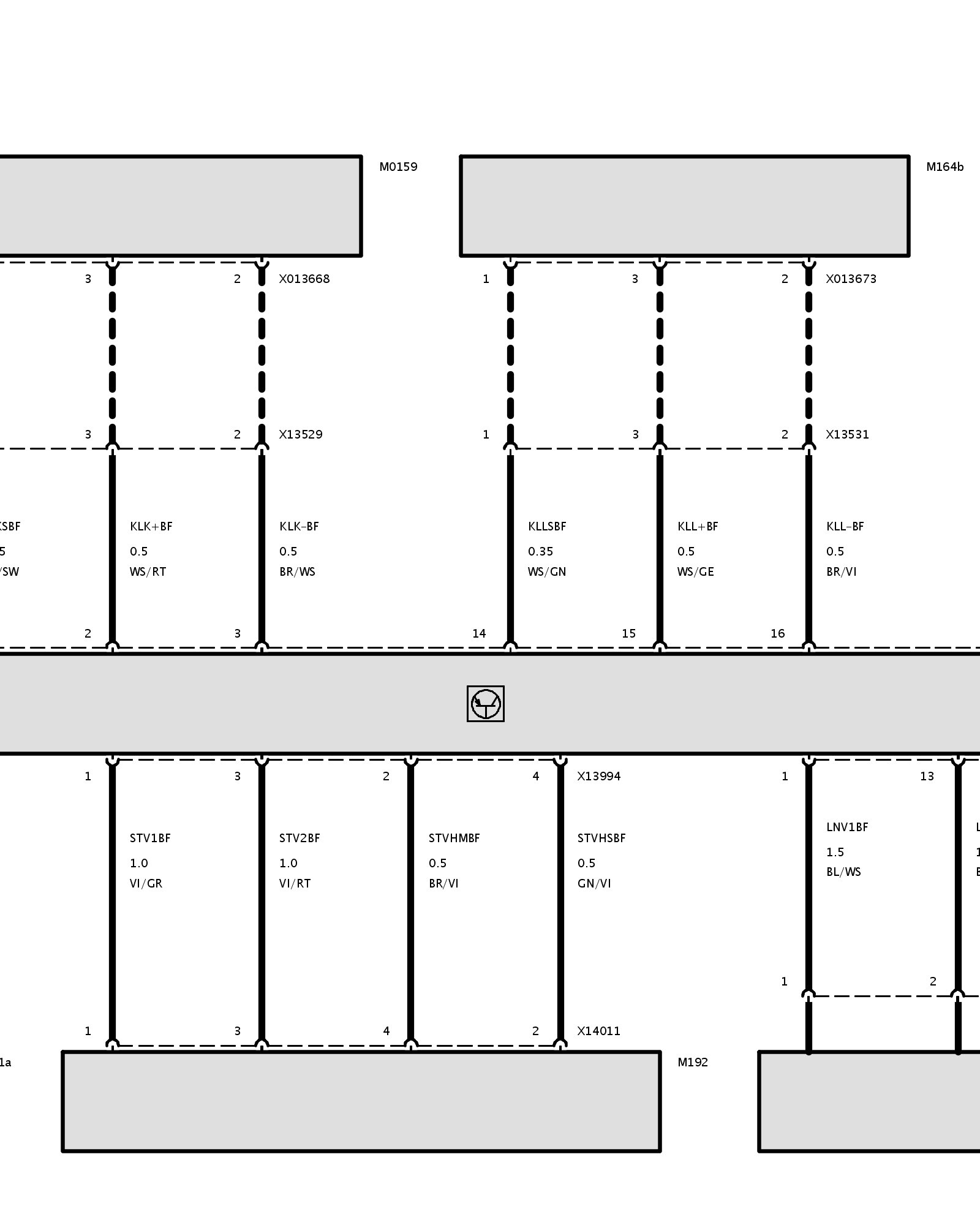

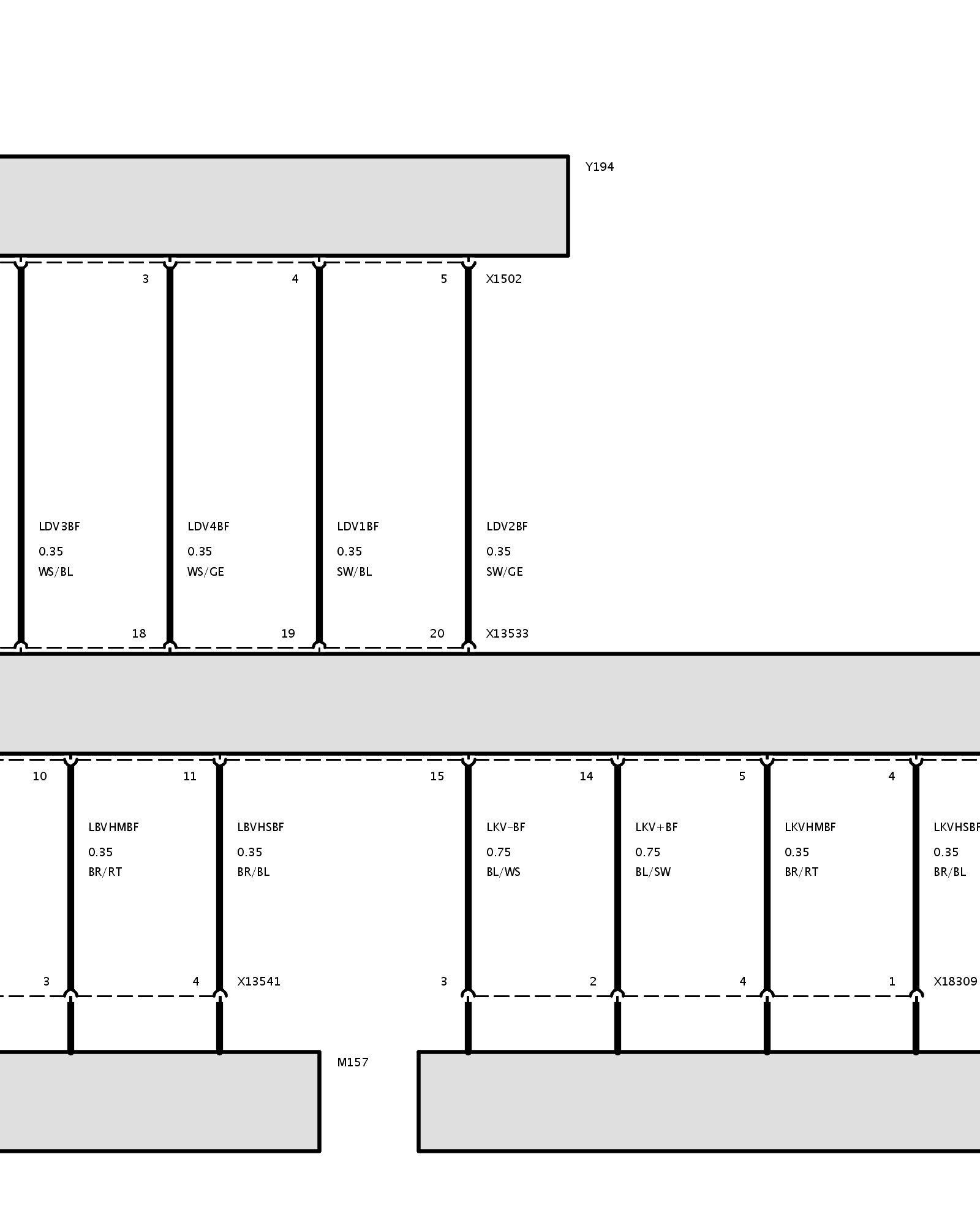

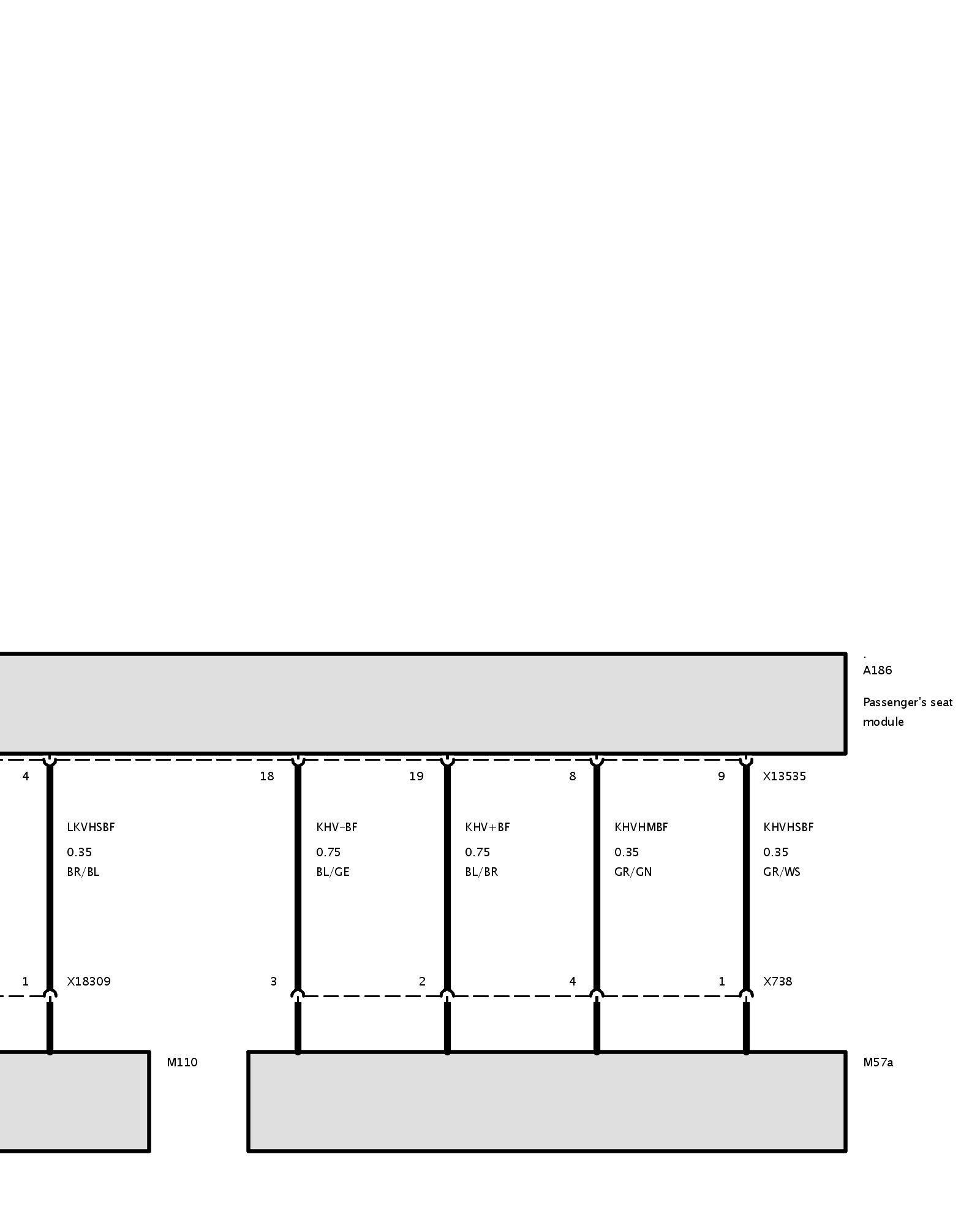

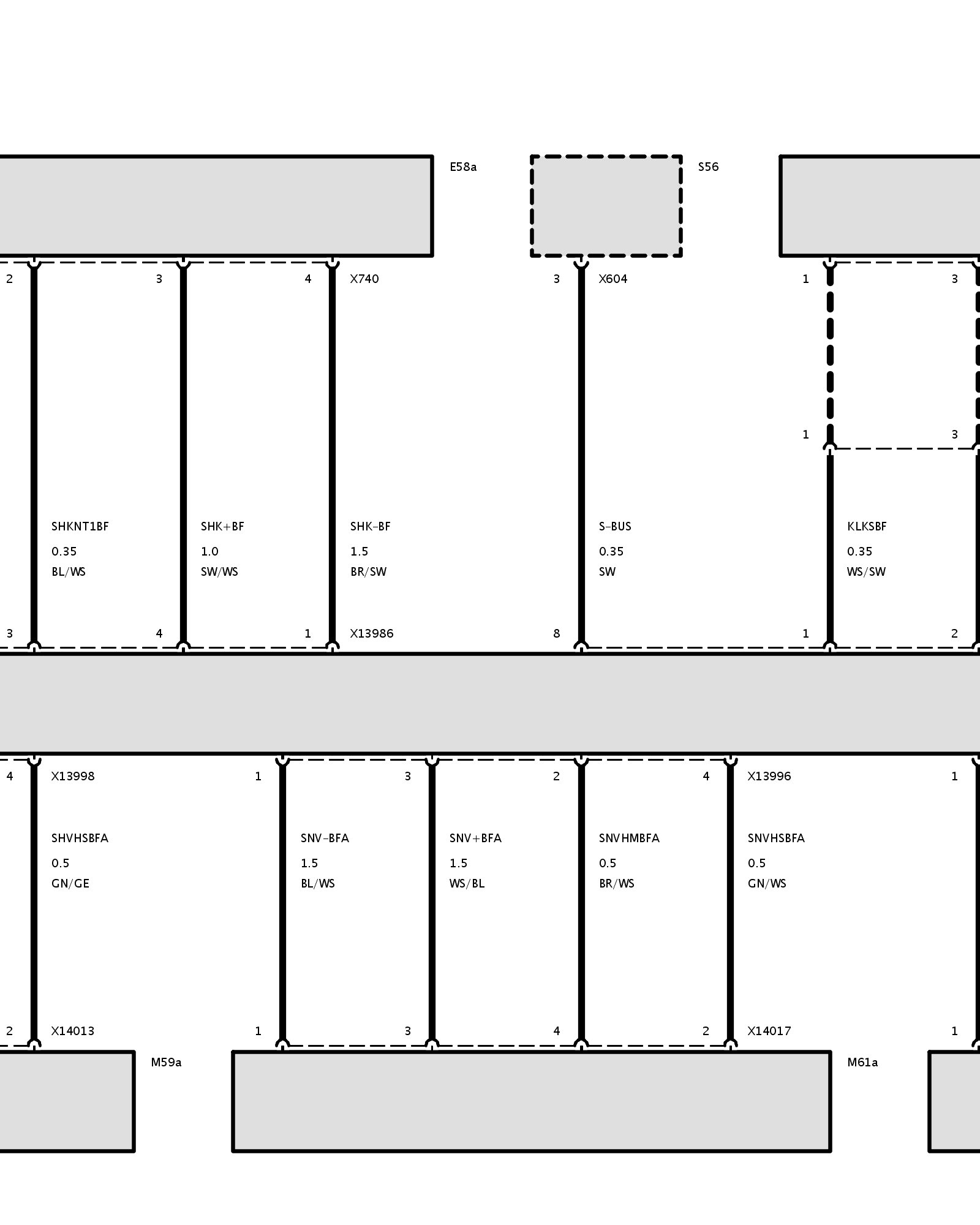

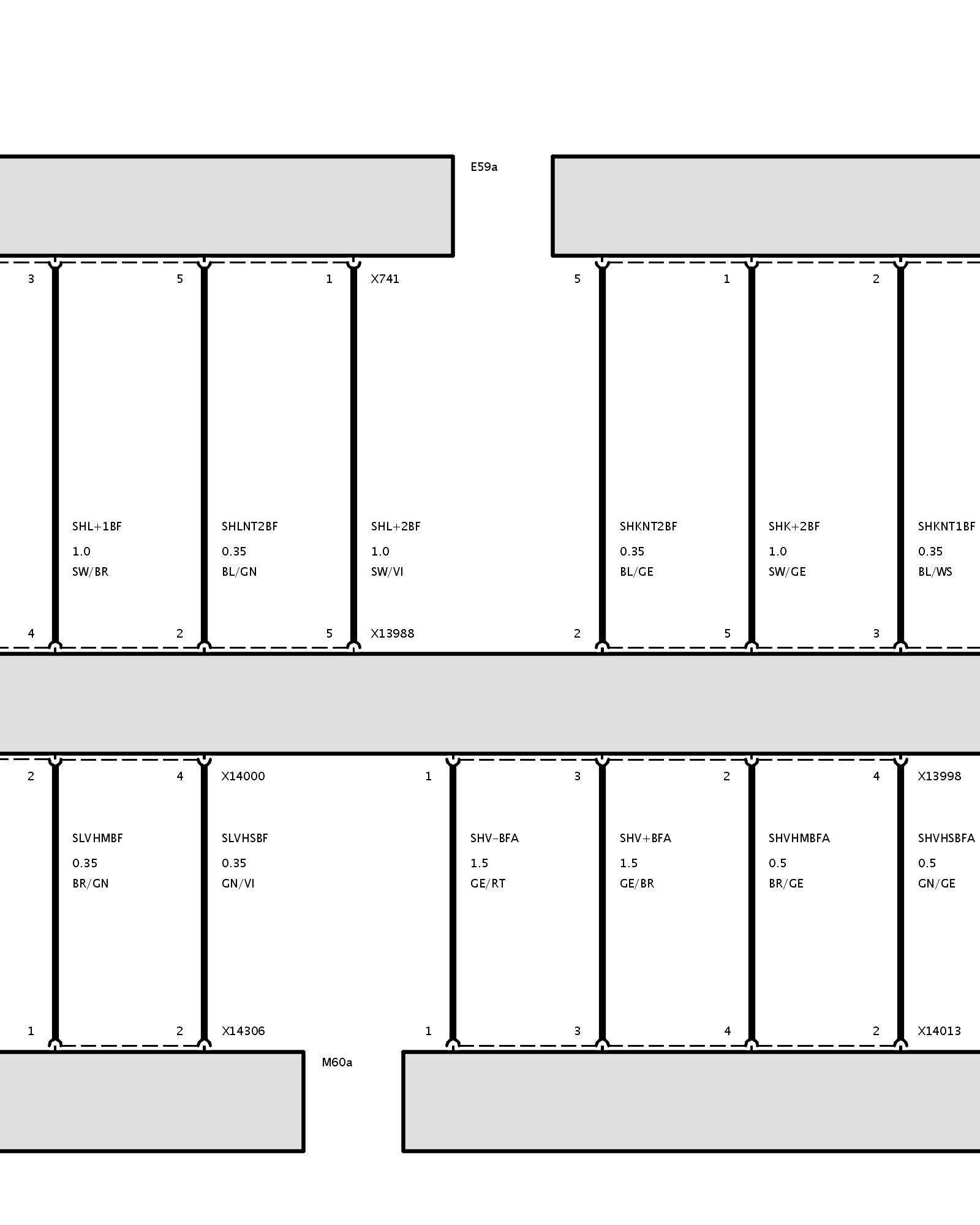

A186 Passenger's Seat Module (Multifunction Seat Without Active Seat)



A186 Passenger's Seat Module (Multifunction Seat Without Active Seat)


Part 1:




Part 2:




Part 3:




Part 4:




Part 5:




Part 6:




Part 7:
