Auxiliary Frame, Roofliner

Headlining Auxiliary Frame

Repair instruction for the headlining auxiliary frame

Cause
The bonding on the headlining auxiliary frame is not insulated. Felt strips must be attached to achieve sound insulation.

Repair instruction

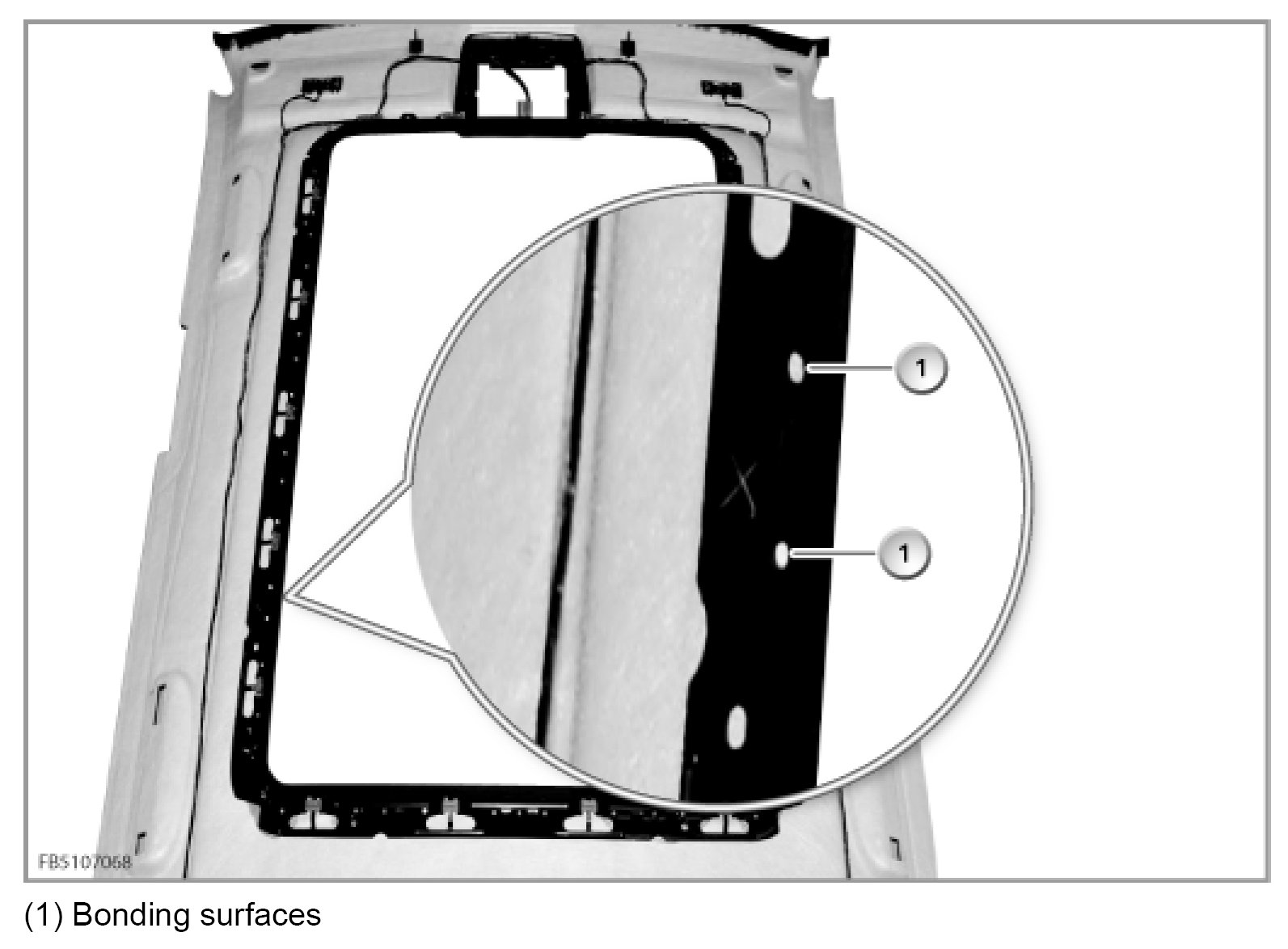

Remove the headlining and attach felt strips to all bonding surfaces (1).

Headlining auxiliary frame
