51 45 377 Removing and Installing/Replacing Decorative Strip on Middle Fresh-Air Grille

51 45 377 Removing And Installing/Replacing Decorative Strip On Middle Fresh-air Grille

Special tools required:

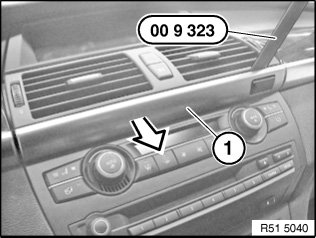

Lever out decorative strip (1) with special tool 00 9 323 in direction of arrow.
Disconnect associated plug connection and remove decorative strip (1).







Installation:

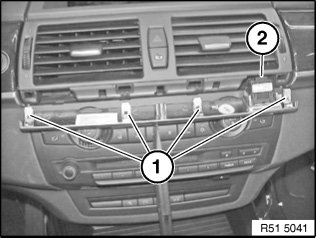

Make sure retainers (1) are correctly seated on decorative strip.

Replacement:
Remove switch for unlocking glovebox (2).
