51 16 225 Removing and Installing/Replacing Decorative Trim on Centre Console on Left or Right

51 16 225 Removing And Installing/Replacing Decorative Trim On Centre Console On Left Or Right







Necessary preliminary tasks:
- Remove trim from cup holder
- Remove rear storage box
- E71:
Remove knee pad

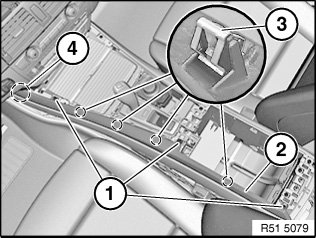

Release screws (1).
Lift decorative trim on centre console (2) up and out of centre console and feed towards rear out of guide (4).

Installation:
Replace faulty retainers (3).







Installation:

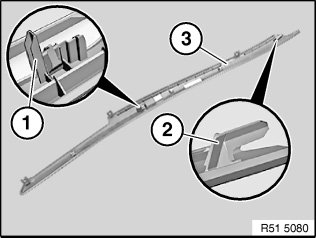

Guides (1) and (2) on decorative trim (3) must not be damaged.
Guides (1) and (2) must be correctly positioned in centre console during fitting.
