33 17 005 Replacing Rubber Mount For Rear Final Drive Unit Mounting at Rear

33 17 005 Replacing rubber mount for rear final drive unit mounting at rear

Special tools required:





Necessary preliminary tasks:
^ Remove rear differential

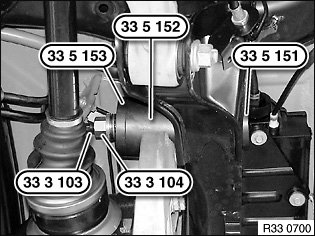

Pull out rubber mount with special tools 33 5 153, 33 5 152, 33 5 151, 33 3 103 and 33 3 104.

Note:
Make sure special tool 33 5 152 contacts rear axle support correctly.

Use ratchet ring wrench 33 5 105.





Important!
Coat bearing bushing in rear axle carrier and new rubber mount with Circo(R) Light (refer to BMW Parts Service).

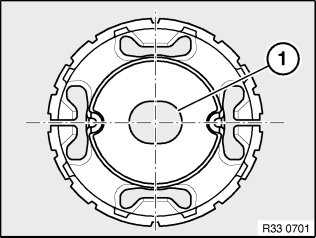

Align rubber mount horizontally by way of elongated hole (1).





Insert rubber mount (1) in special tool 33 5 154.

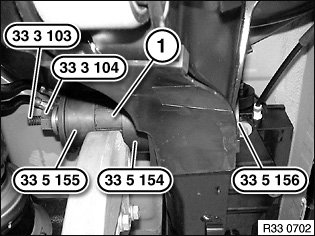

Draw in rubber mount (1) with special tools 33 5 155, 33 5 154, 33 5 156, 33 3 103 and 33 3 104 as far as it will go.

Note:
Make sure special tools 33 5 154 and 33 5 156 contact rear axle support correctly.

Use ratchet ring wrench 33 5 105.
