Trunk / Liftgate Latch: Adjustments

51 24 004 Adjusting Rear Lid Lock







Necessary preliminary tasks:
- Remove rear apron trim

Precondition:
Rear lid must be correctly adjusted to fit; if necessary, adjust rear lid.
For ideal adjustment, refer to Body gap dimensions.

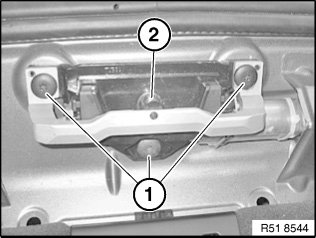

Slacken nuts (1) on servo lock until such stage that they can still just be moved.

IMPORTANT: Lock pin (2) must not brush against upper rear lid lock section.

Close rear lid.
Servo lock centres itself in the process.







Installation note:

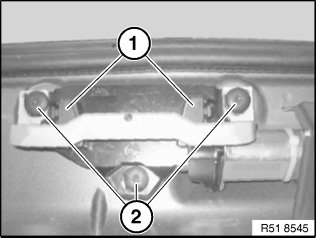

Check sliders (1) on servo lock for damage, replace if necessary.

Open rear lid.
Tighten down screws (2) on servo lock.
Check adjustment of rear lid and servo lock, repeating adjustment if necessary.







Version with reversing camera:
After adjusting, check reversing camera and if necessary recalibrate.
