51 49 017 Removing and Installing/Replacing Trim Panel For Rear Window Frame on (Inside) Left or Right




51 49 017 - Removing and installing/replacing trim panel for rear window frame on (inside) left or right





Necessary preliminary tasks:
- Remove trim panel at top

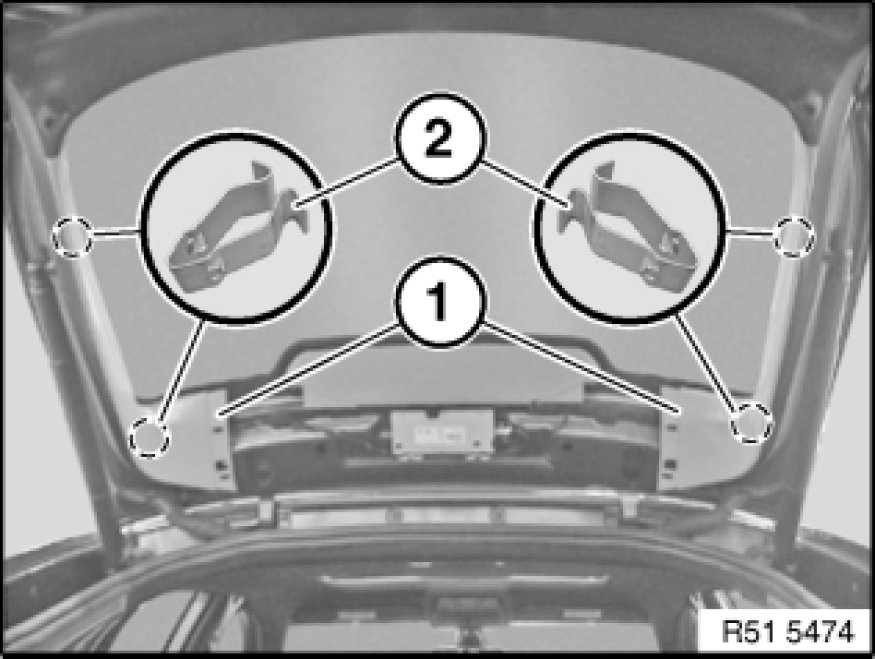

Detach trim panel (1) from retainers (2) towards inside.

Installation:
If necessary, replace faulty retainers (2).





Installation:

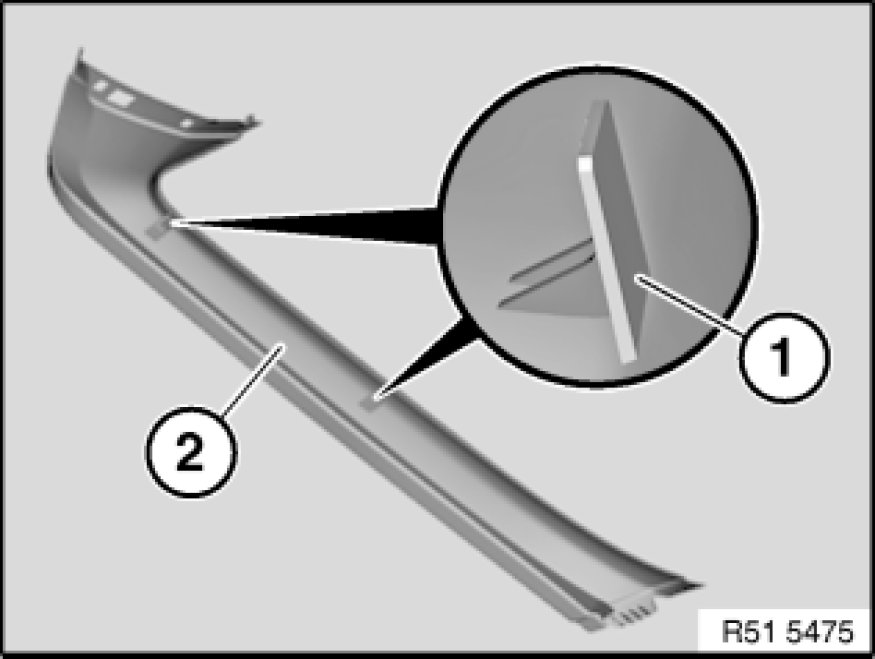

Lugs (1) on panel (2) must not be damaged.
