51 47 157 Removing and Installing/Replacing Cover For Left or Right Capping In Luggage Compartment

51 47 157 - Removing and installing/replacing cover for left or right capping in luggage compartment





Necessary preliminary tasks:
- Remove luggage compartment wheel arch trim
- Remove D-pillar trim panel 51 43 259 Removing and Installing/Replacing Trim For Rear Roof Pillar (D-Pillar), Left or Right.

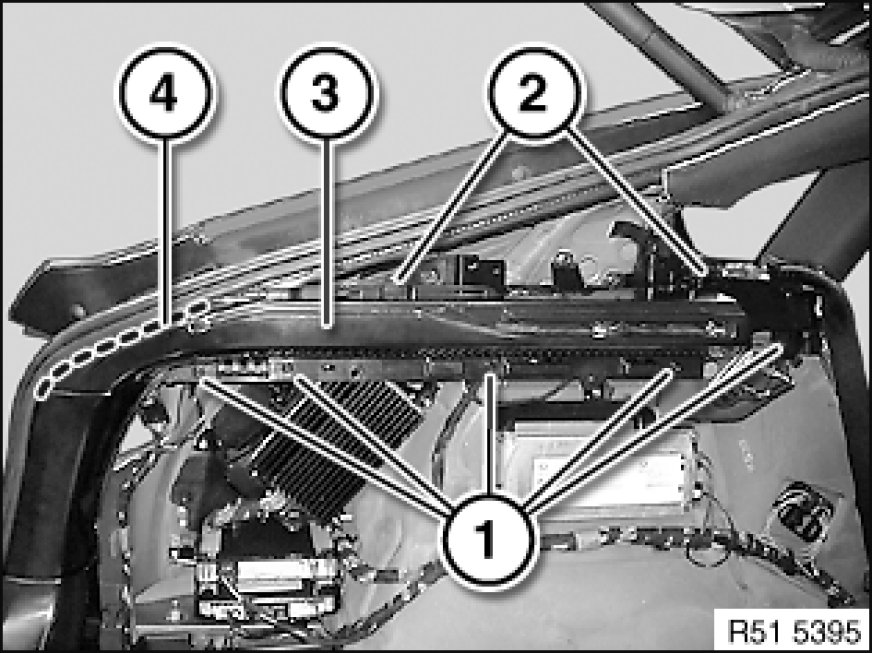

Release screws (1) and (2).
Remove capping cover (3).

Installation:
Mucket must overlap capping cover (3) along dashed line (4).
