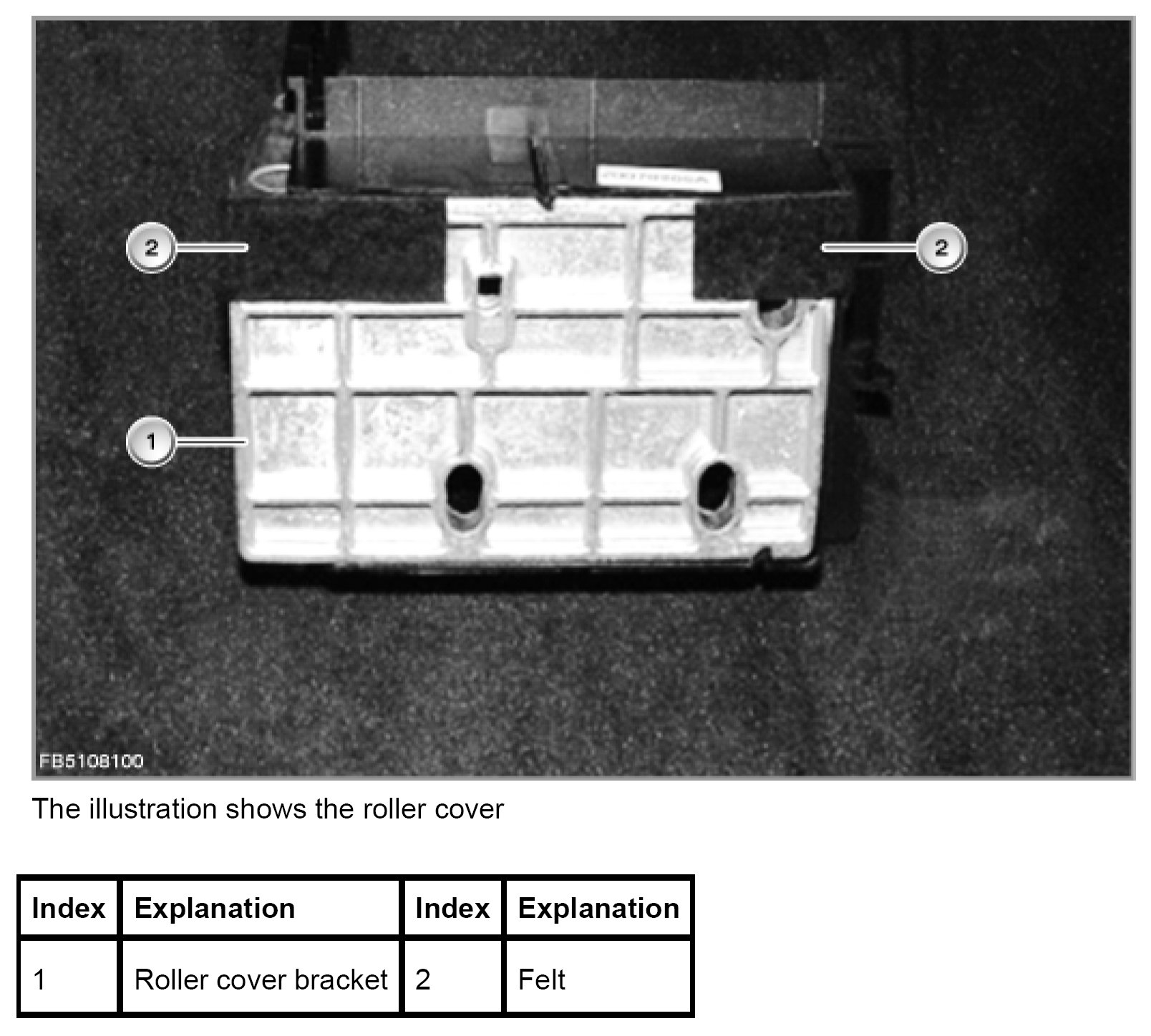

Repair instruction for roller cover bracket
Cause:
Rattling noise from roller cover. Felt is missing or has slipped.
Repair instructions:
Stick the felt correctly onto the bracket of the roller cover.
