Clip, Door Trim Panel

Door trim panel clip

Repair instruction for broken door clip

Door panel
- Remove door trim panel
- Check all clips of the door trim panel from breaks

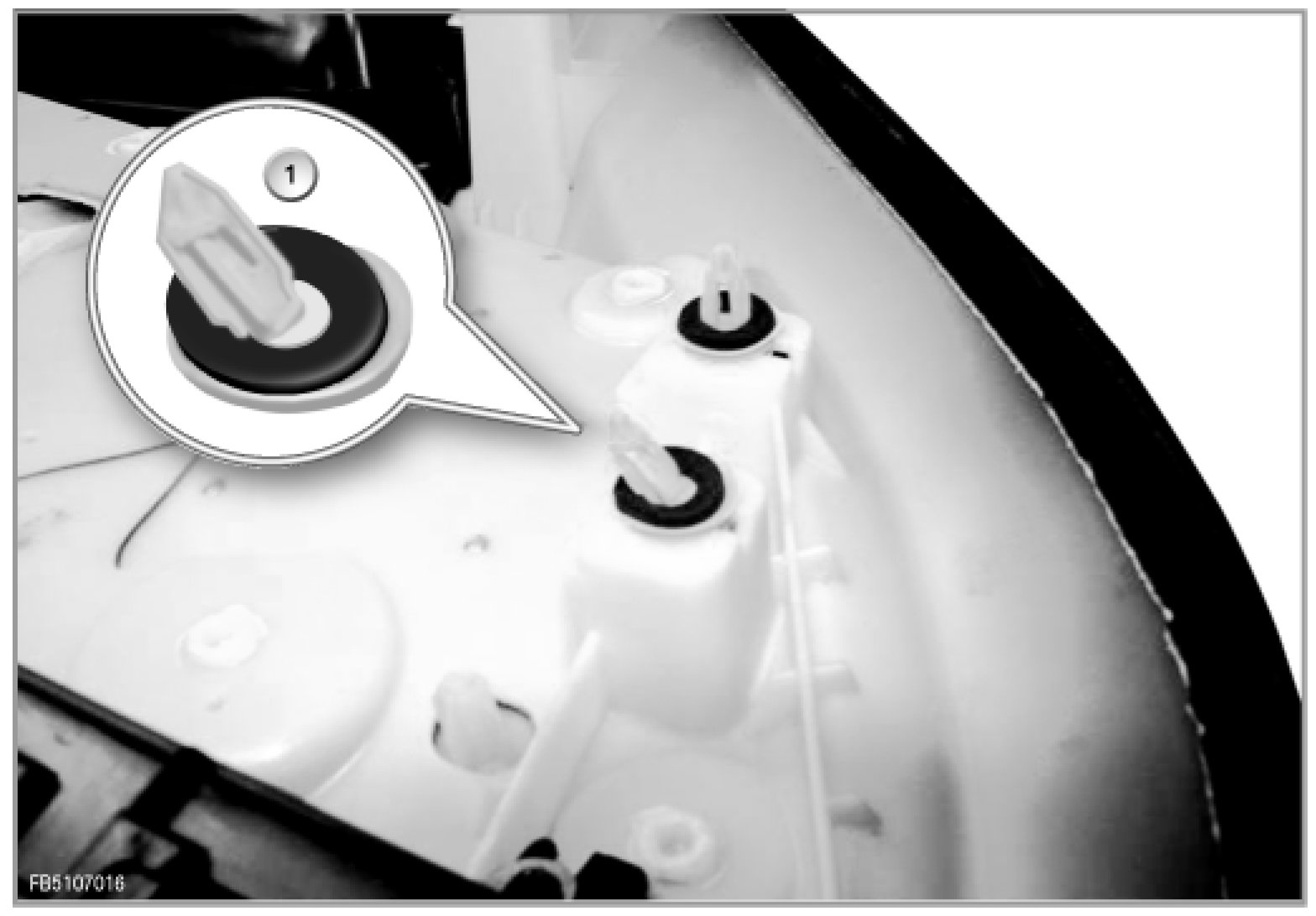

Clip







Replace broken clips (1).

NOTE: The blue clips of the door trim panel must always be replaced.
