65 12 230 Removing And Installing (Replacing) DAB Tuner







IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD protection).







NOTE: Follow instructions for handling optical fibres.







Necessary preliminary tasks:
- E72 Only: Disconnect Both negative battery cables
- Clamp off battery negative lead
- Remove luggage compartment trim panel on left side wall

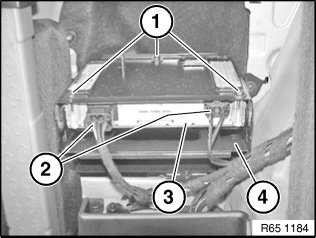

Release screws (1).
Disconnect plug connections (2) and remove DAB tuner (3) from holder (4).







Replacement:
Carry out vehicle programming/encoding.
