Tow Sensor: Service and Repair

65 75 055 Removing And Installing/Replacing Emergency Power Siren With Tilt Sensor







Necessary preliminary tasks:
- Remove front left wheel arch cover

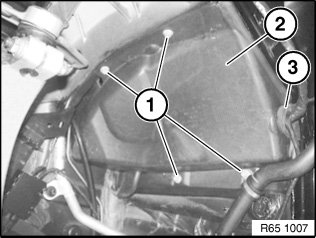

Release screws (1) and remove cover (2).

Installation:
Make sure rubber grommet (3) is correctly seated.

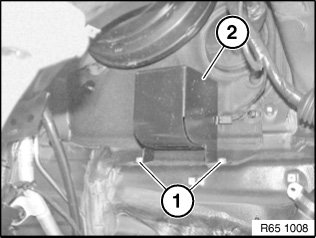

Release screws (1).
Remove housing (2) and disconnect associated plug connection.







Replacement:

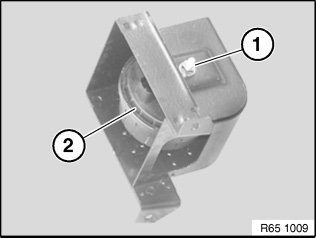

Release nut (1) and remove emergency power siren with tilt sensor (2).







IMPORTANT:
Risk of damage.

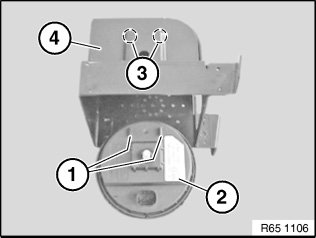

Guides (1) of emergency power siren (2) must be correctly seated in area (3) of holder (4).







Replacement:
Carry out vehicle programming/encoding.
