Felt Strip, Door Trim Panel, Rear

Felt Strip On Rear Door Trim Panel

Repair instruction for felt strip on rear door trim panel

Cause
The felt strip of the door trim panel is missing or has been incorrectly fitted in the area of the C-pillar.

Repair instruction

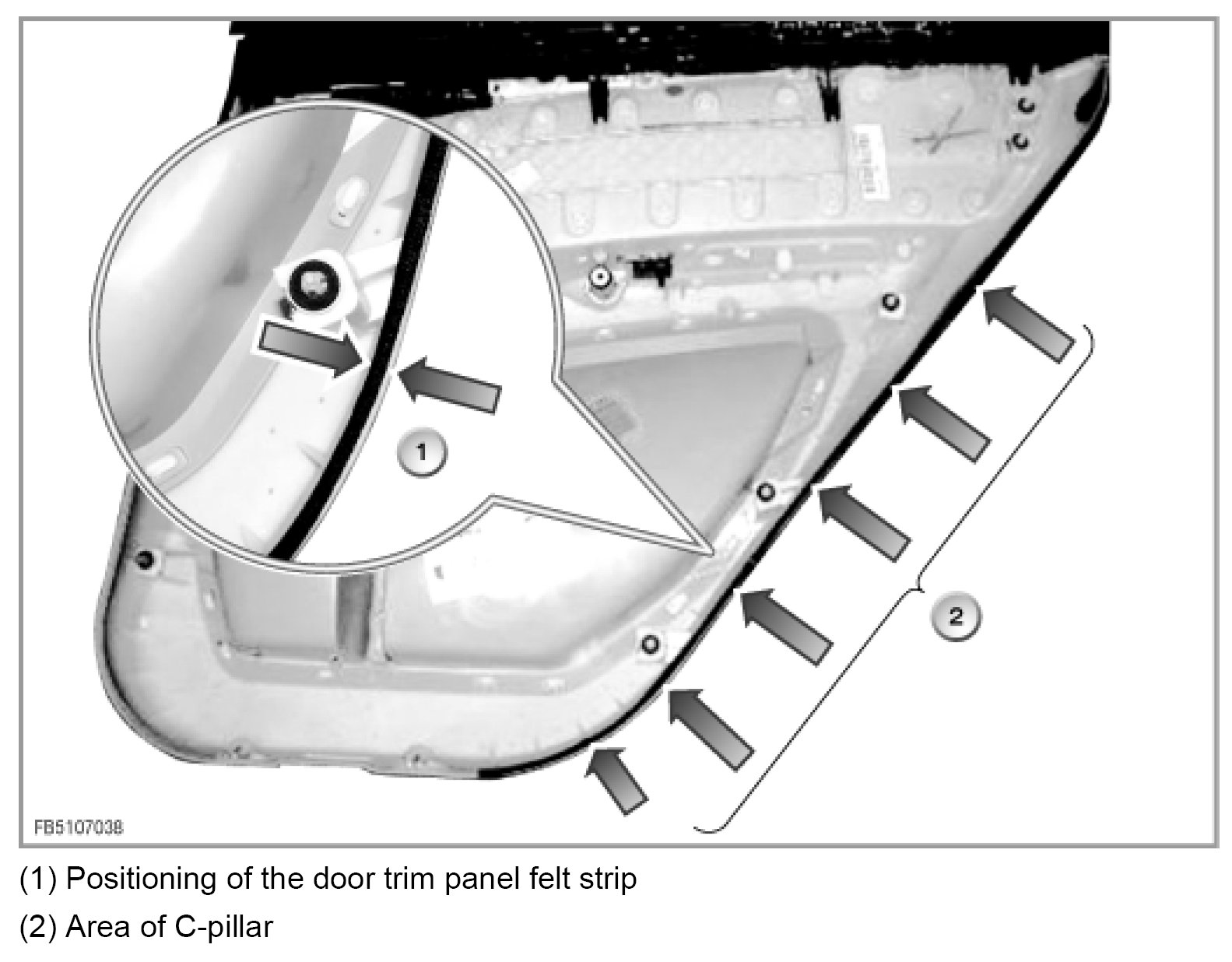

Position the felt strip on the line of the door trim panel in the area of the C-pillar in the centre. After installation, the felt strip must not be visible.

Door panel







NOTE: The blue clips of the door trim panel must always be replaced.
