Edge, Door Trim Panel Edge

Rear Door Trim Panel Edge

Repair instruction for rear door trim panel edge

Cause
The edge of the door trim panel makes contact with the inner door panel in the area of the B-pillar.

Repair instruction

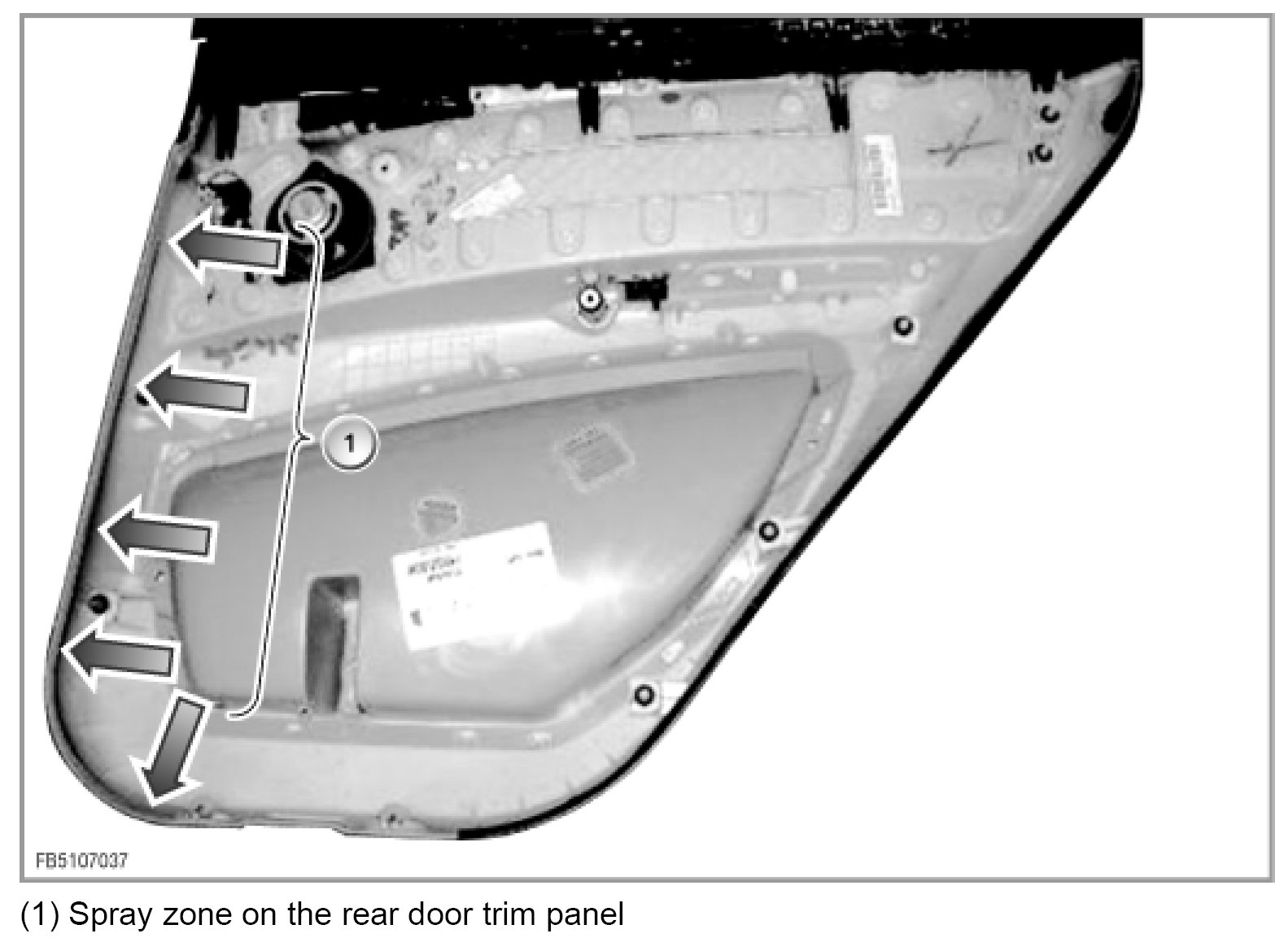

Apply BMW protecting spray between the door trim panel and inner door panel in the area of the B-pillar. The door trim panel does not have to be removed.

Door panel







NOTE: Cover the area around the spray zone. After spraying, use a suitable cleaning agent to clean the
spray zone.
