Clip Mounting

Clip Bracket In Door Trim Panel

Repair instruction for clip bracket in door trim panel

Cause
There is no pre-tension of the clips in the clip bracket.

Repair instruction

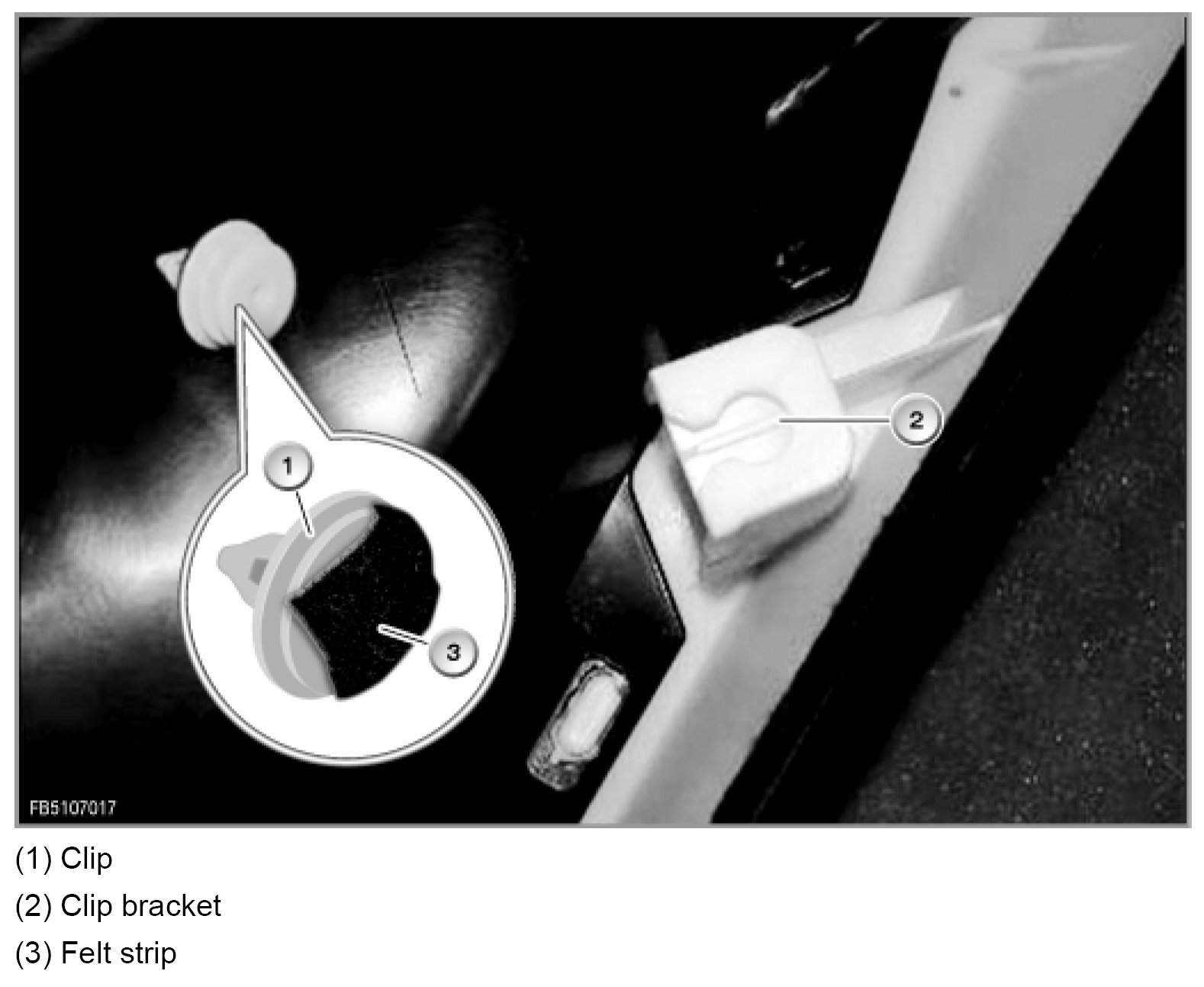

Attach felt strip underneath the clip (Fig.). Then press the clip with the felt strip into the clip bracket to achieve dimensional accuracy.

Clip bracket







NOTE: The blue clips of the door trim panel must always be replaced.
