Piston, Engine

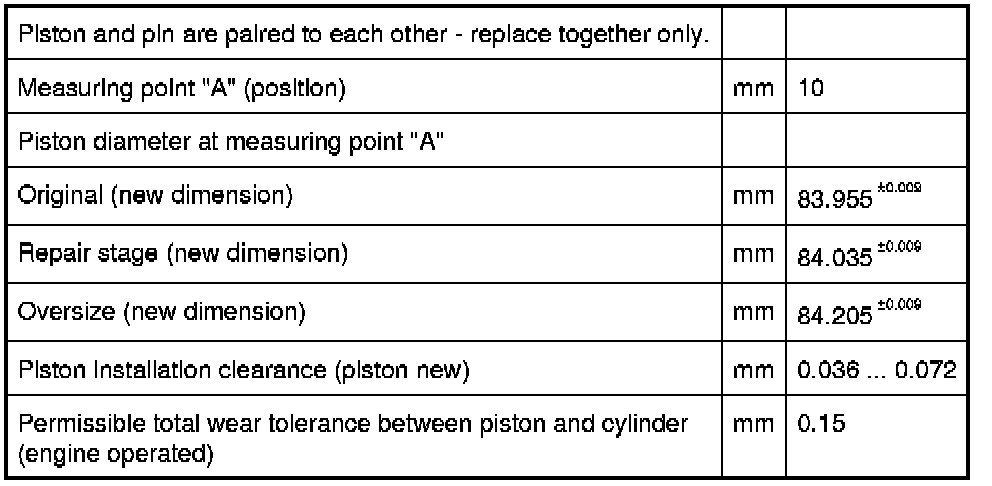

11 25 Pistons with Rings and Pins M57T2 M57 Top2 D30

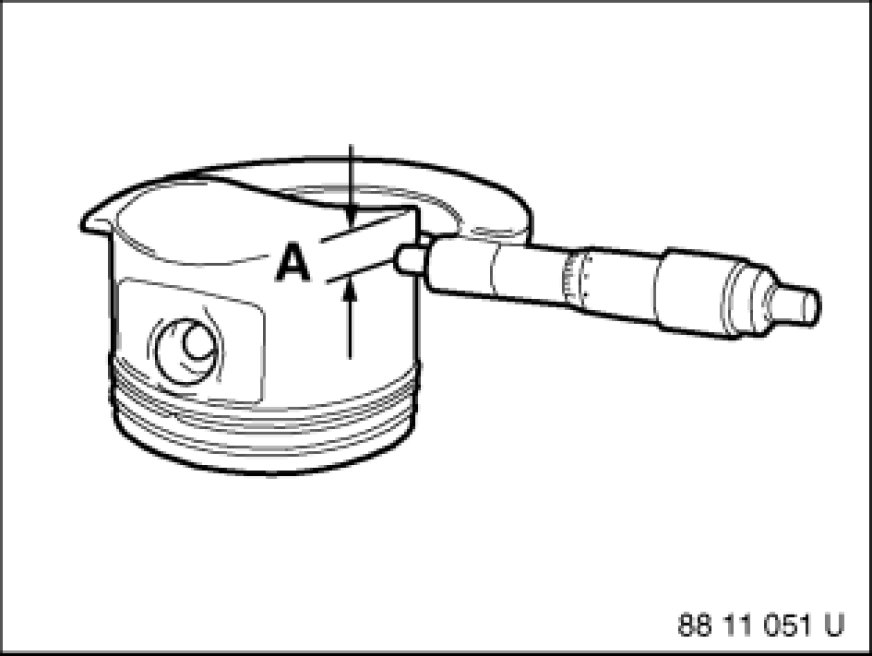

Image showing measuring point "A".
