Connecting Rod, Engine




11 24 1AZ Connecting Rod Bolts
Replace the bolts
Jointing torque 20 Nm
Angle of rotation 70°

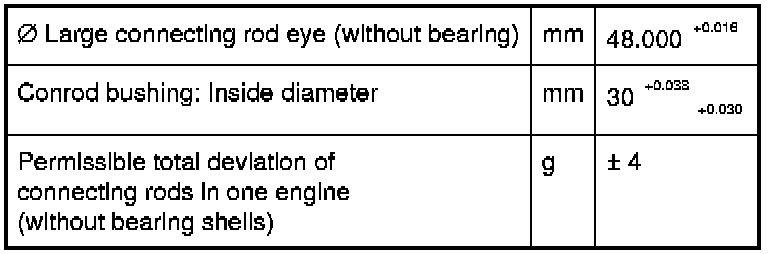

11 24 Connecting Rods and Bearings M57T2 M57 Top2 D30
