Parking Assist Control Module: Service and Repair

66 20 508 Removing And Installing (replacing) Control Unit (Park Distance Control)







IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD protection).







Necessary preliminary tasks:
- Remove flap in luggage compartment panel on right

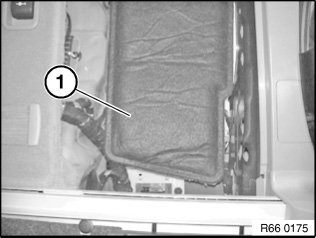

Fold insulating mat (1) to one side.

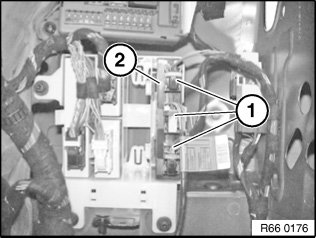

Disconnect plug connection (1).
Remove control unit (2).







Replacement:
Carry out programming/encoding.
