Layout of Common Rail System
Layout of Common Rail System

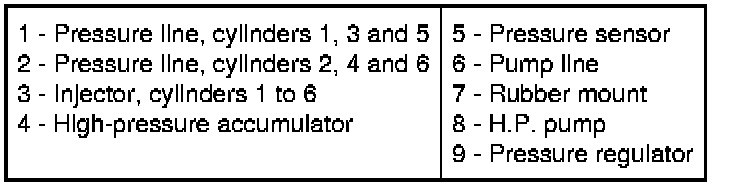

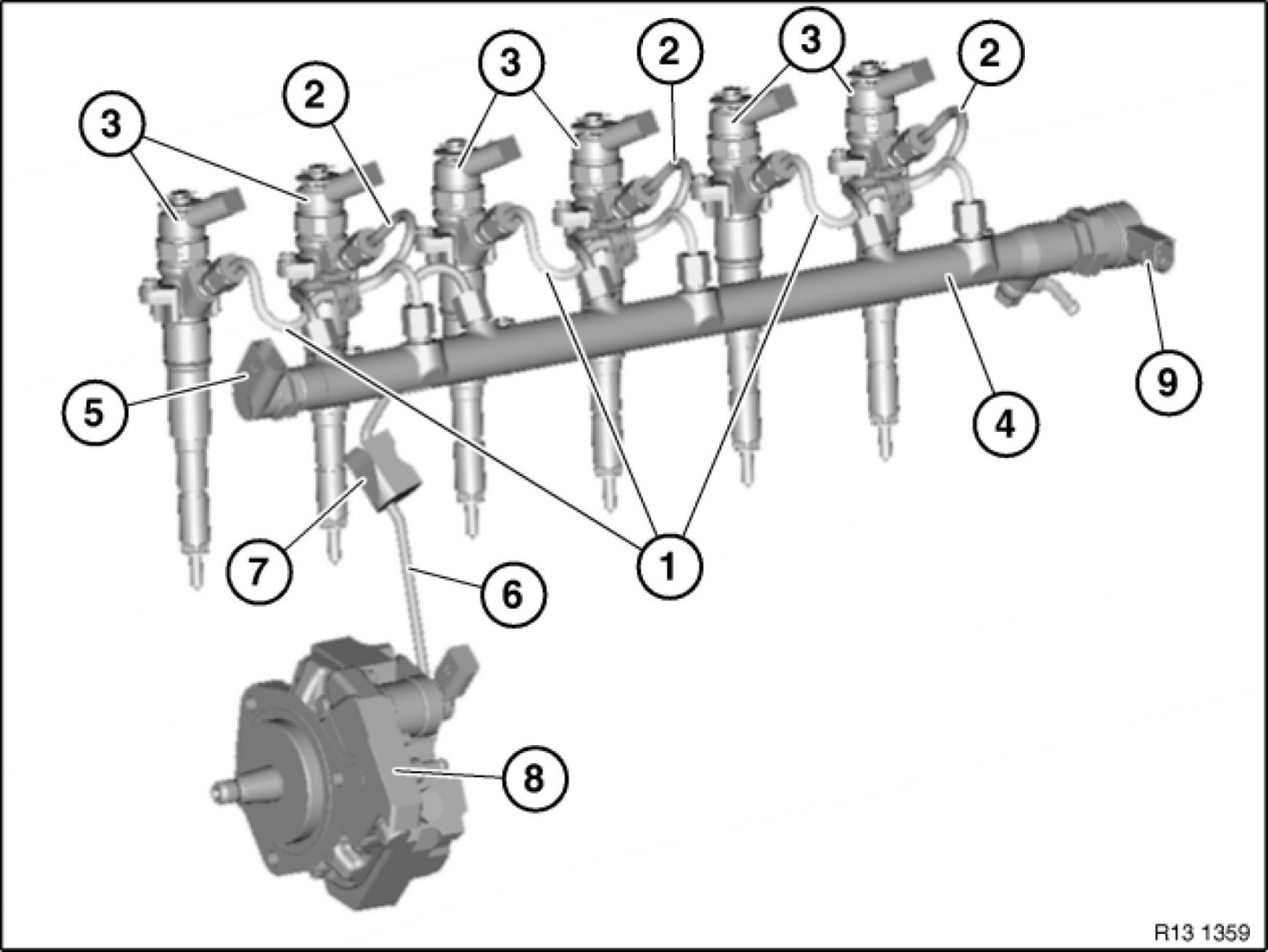

13 53 ... - Layout of common rail system (M57TU, M57T2)
