EGR Backpressure Transducer: Service and Repair

11 74 505 Replacing pressure transducer for EGR valve (M57T2)





Necessary preliminary tasks:
^ Remove intake air manifold

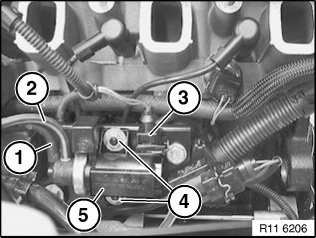

Release vacuum line (1).

Release vacuum line (2).

Disconnect plug connection (3).

Unscrew nuts (4).

Remove pressure transducer for EGR valve (5).

Assemble engine.

Installation:





Layout of vacuum hoses.
