Home >> BMW >> 2009 >> X5 35d (E70) L6-3.0L DSL Turbo (M57Y) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Timing Components >> Specifications

Timing Components: Specifications

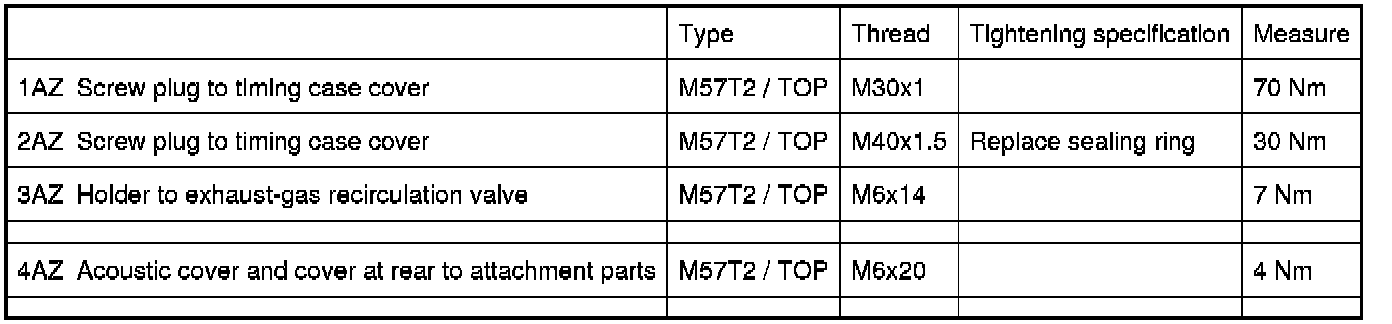

11 14 Case Covers

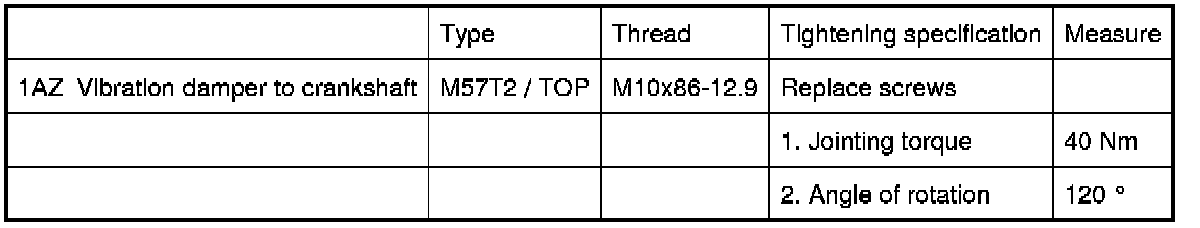

11 23 Vibration Damper
