13 .. ... Removing Acoustic Covers
13 .. ... Removing Acoustic Covers
13 .. ... Remove the acoustic covers (M57T2 with and without SCR)

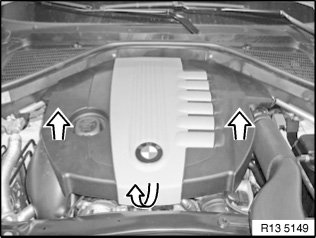

Raise acoustic cover and remove in direction of travel.
