Home >> BMW >> 2009 >> X5 35d (E70) L6-3.0L DSL Turbo (M57Y) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Preheating System

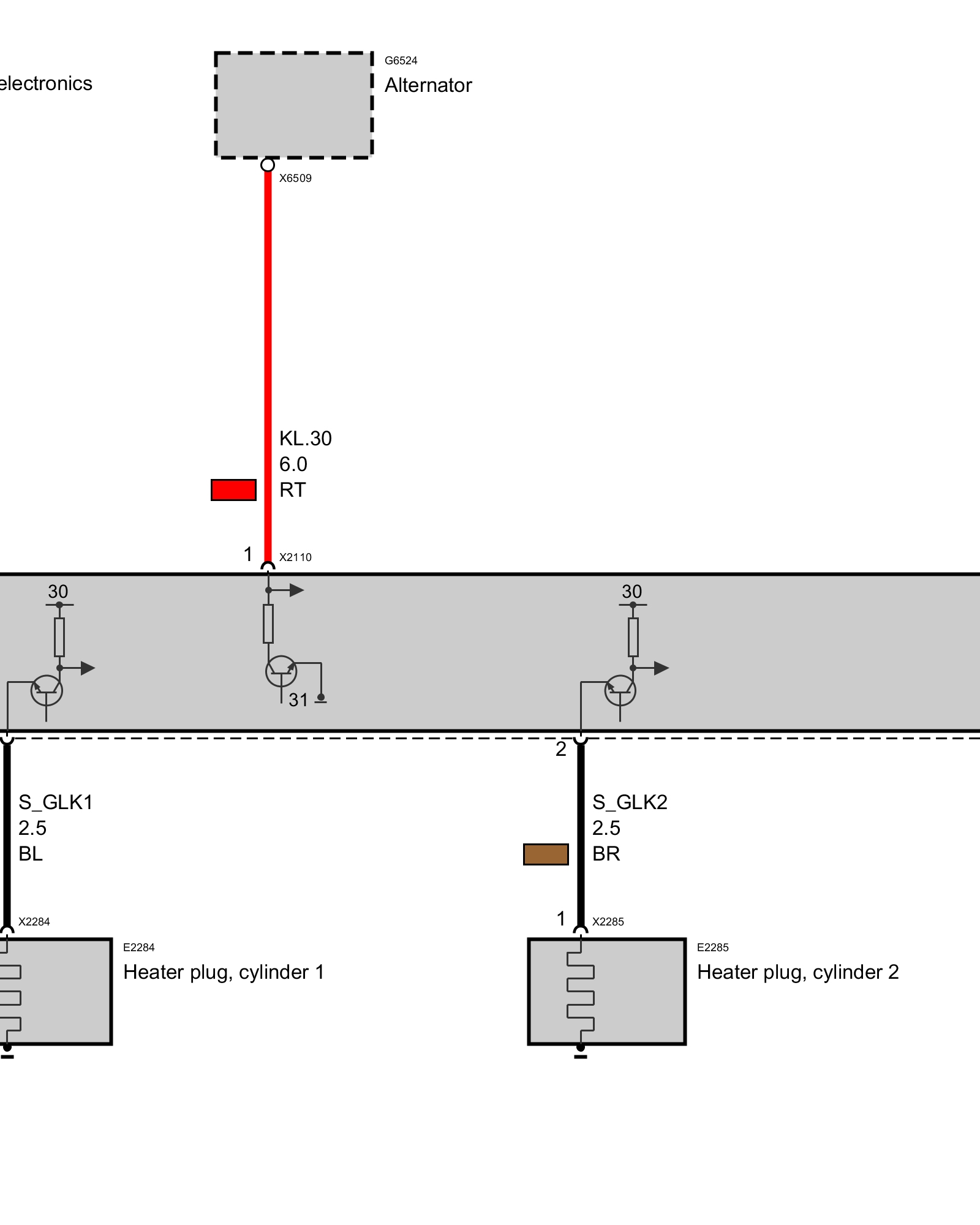

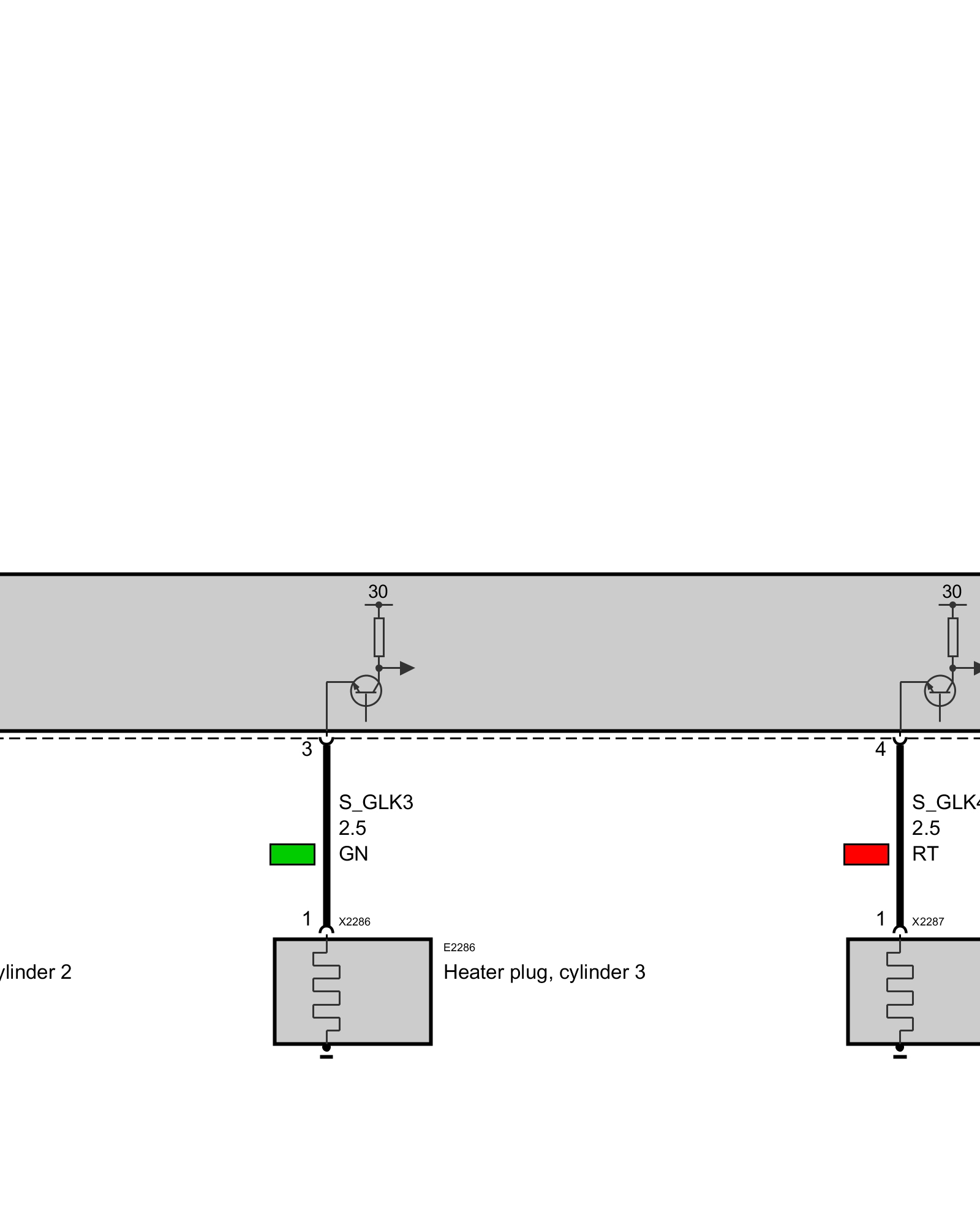

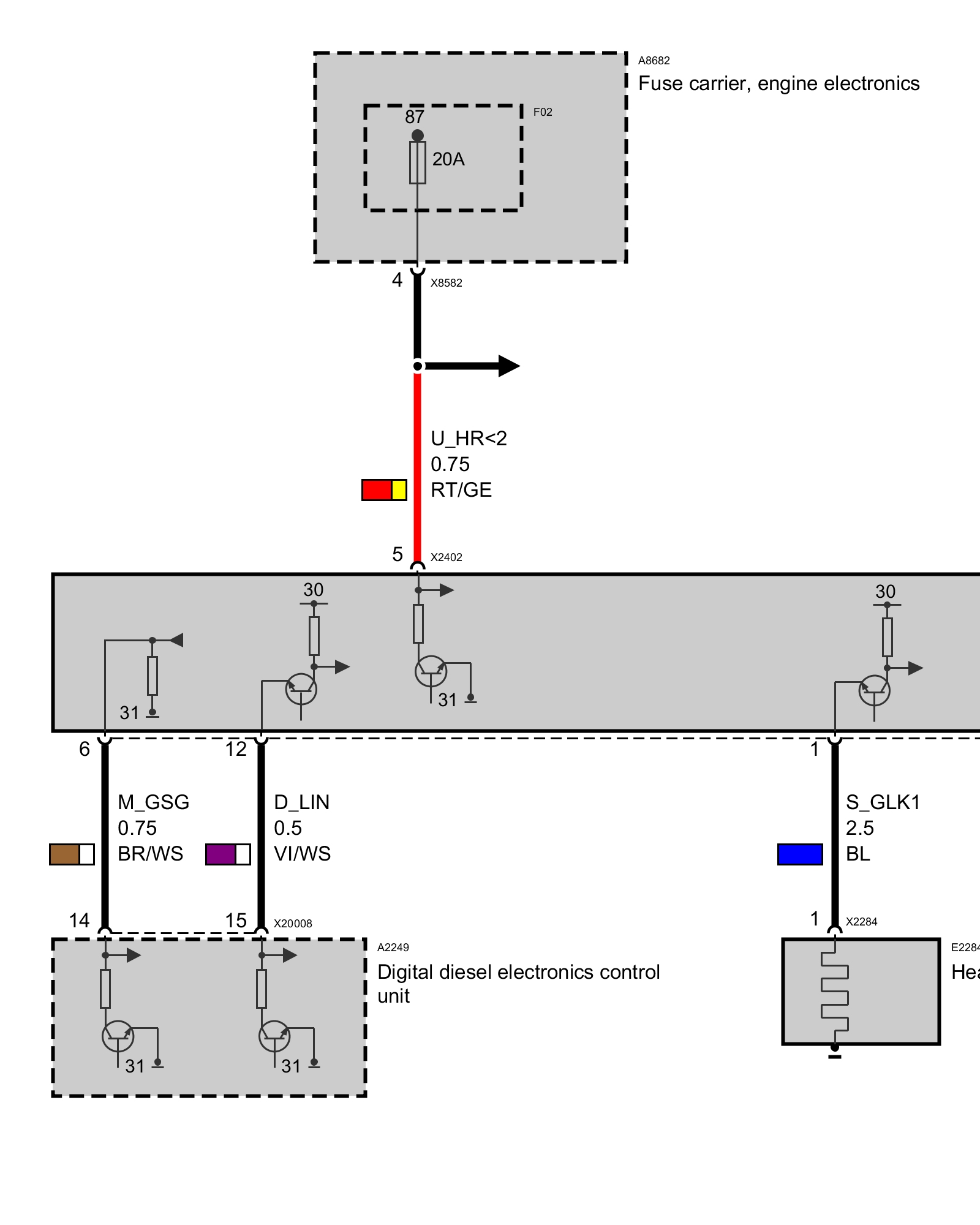

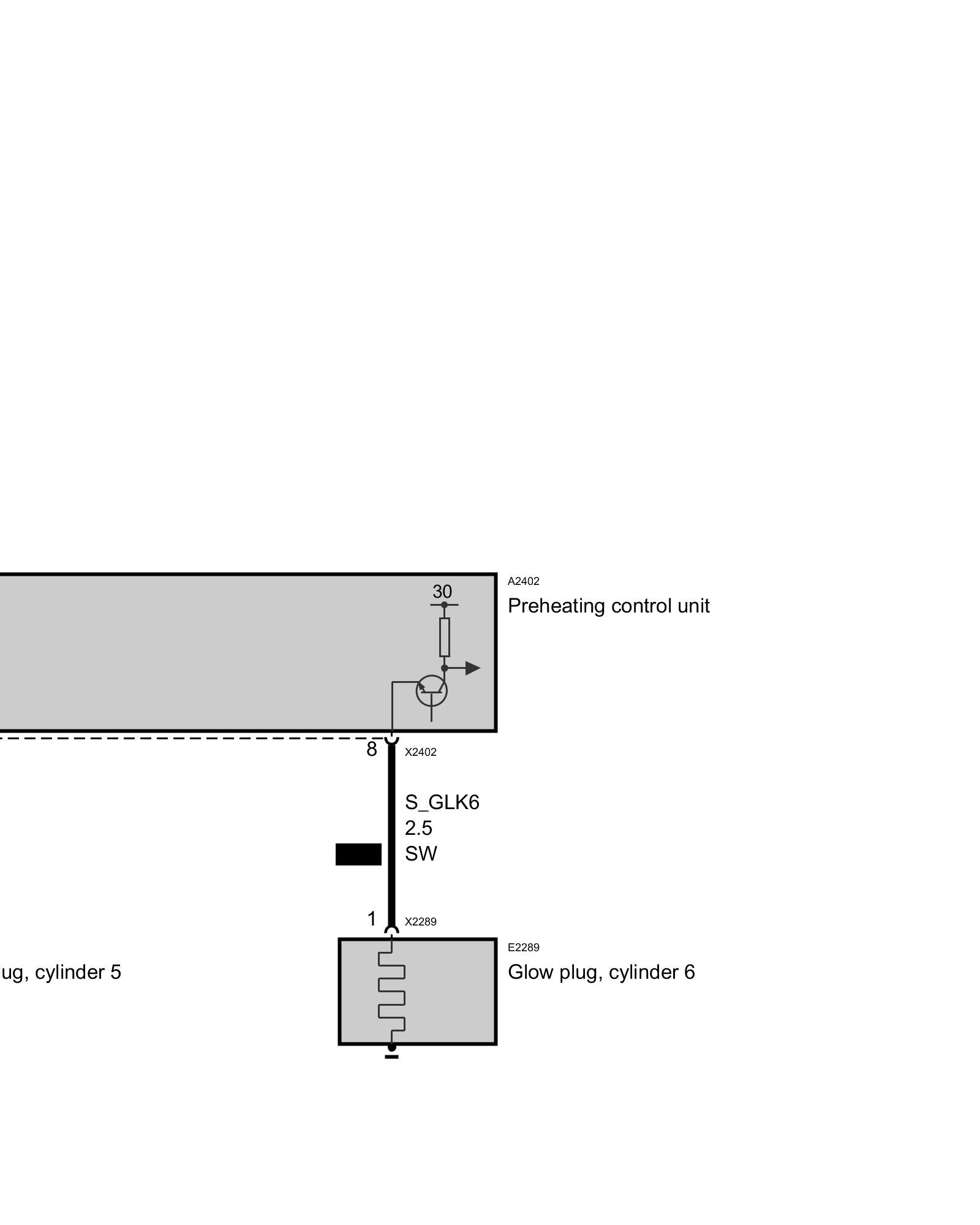

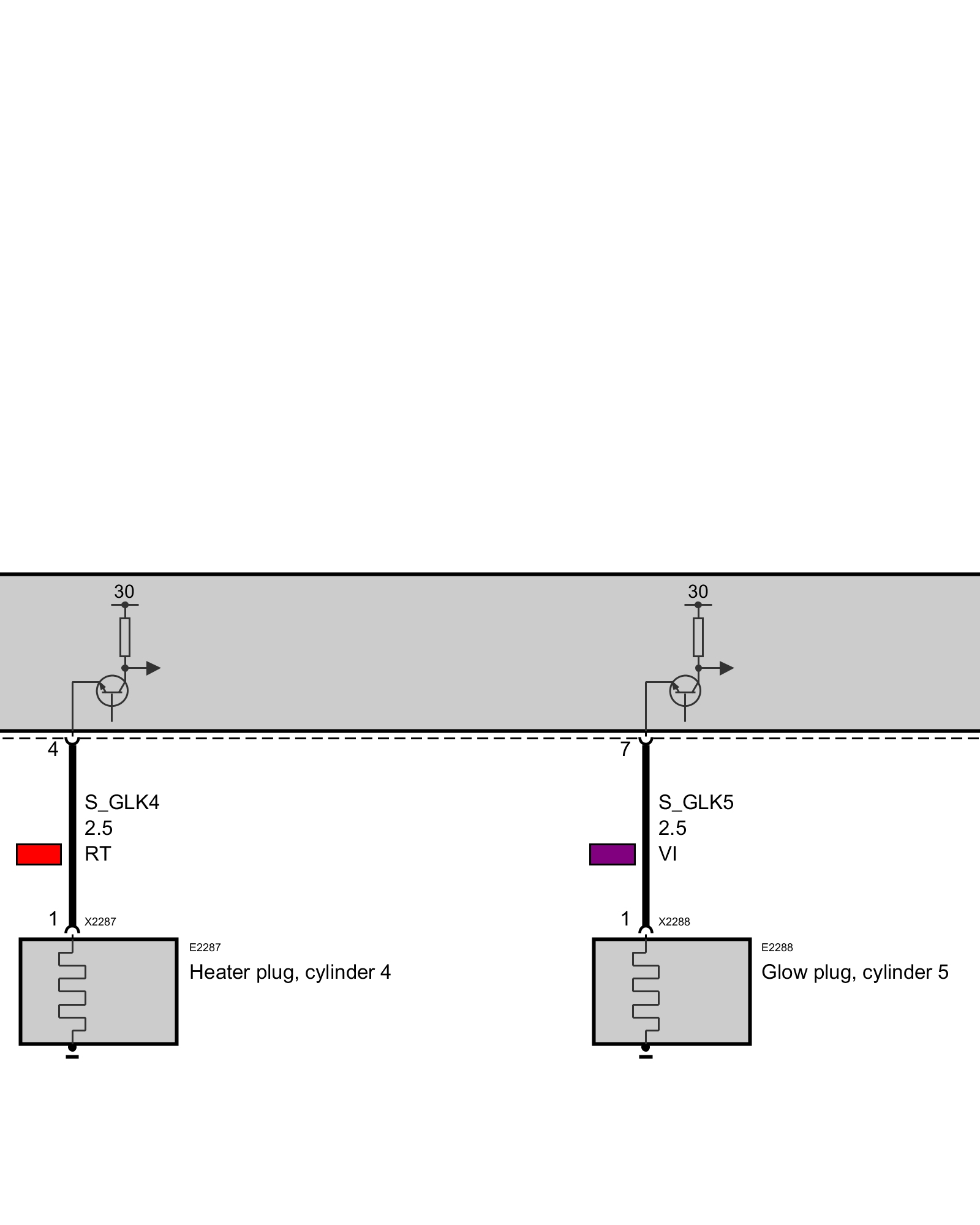

Preheating System



Preheater Control
