Home
>>
BMW
>>
2009
>>
X5 35d (E70) L6-3.0L DSL Turbo (M57Y)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

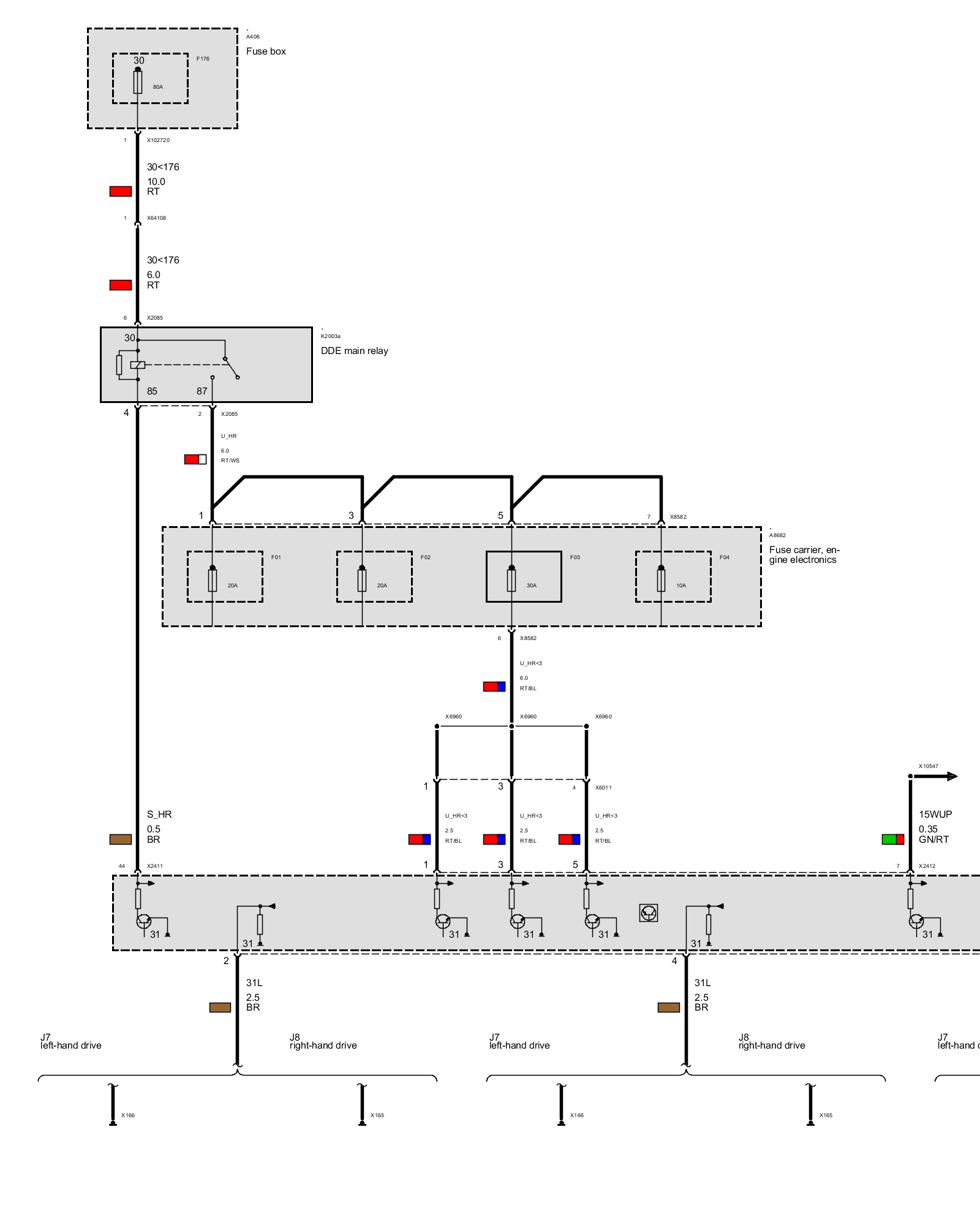

DDE Control Unit
DDE Control Unit
Supply, DDE
Control Unit
