Home >> BMW >> 2009 >> X5 35d (E70) L6-3.0L DSL Turbo (M57Y) >> Repair and Diagnosis >> Brakes and Traction Control >> Parking Brake System >> Diagrams >> Electrical Diagrams >> Supply, EMF Parking Brake

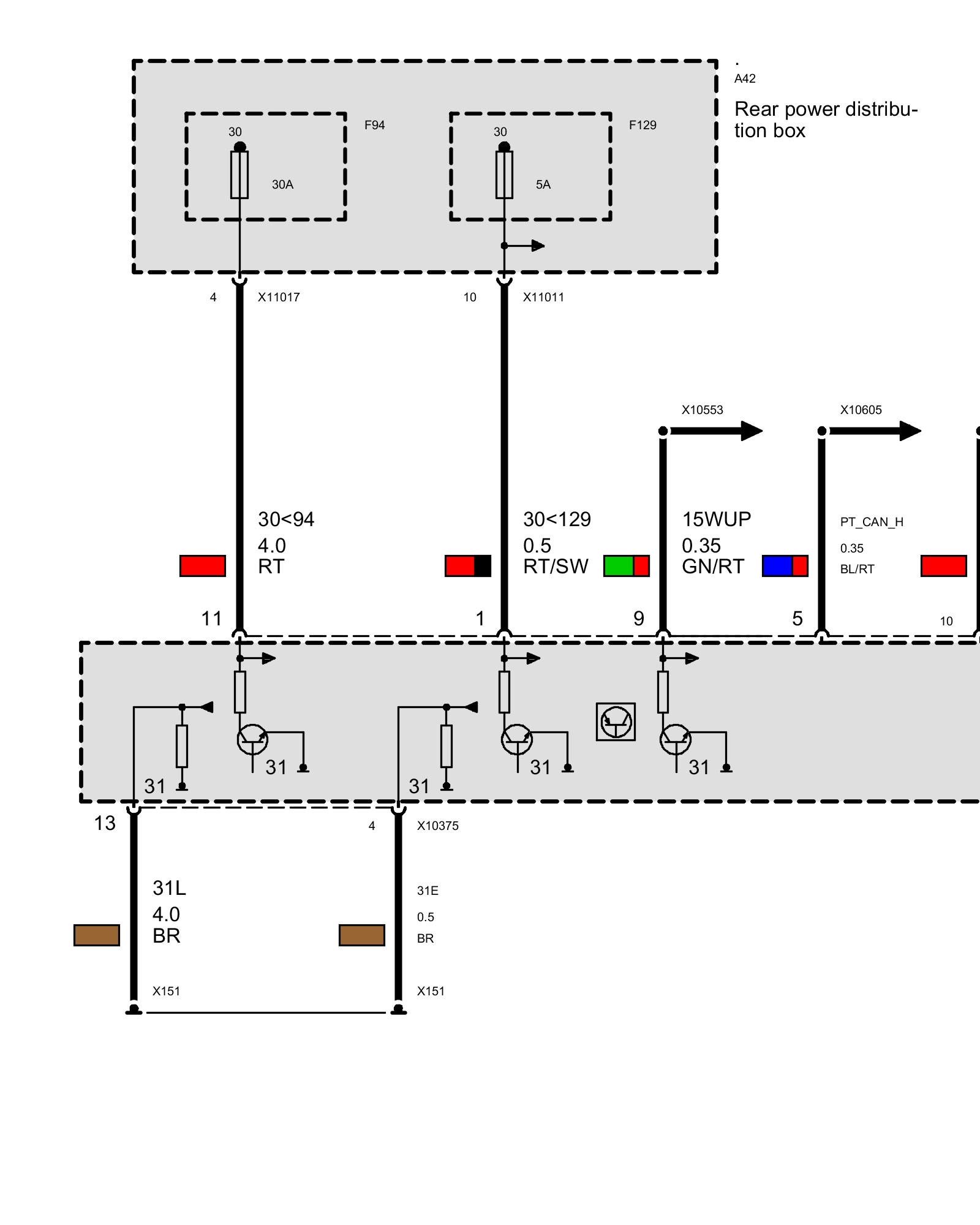

Supply, EMF Parking Brake

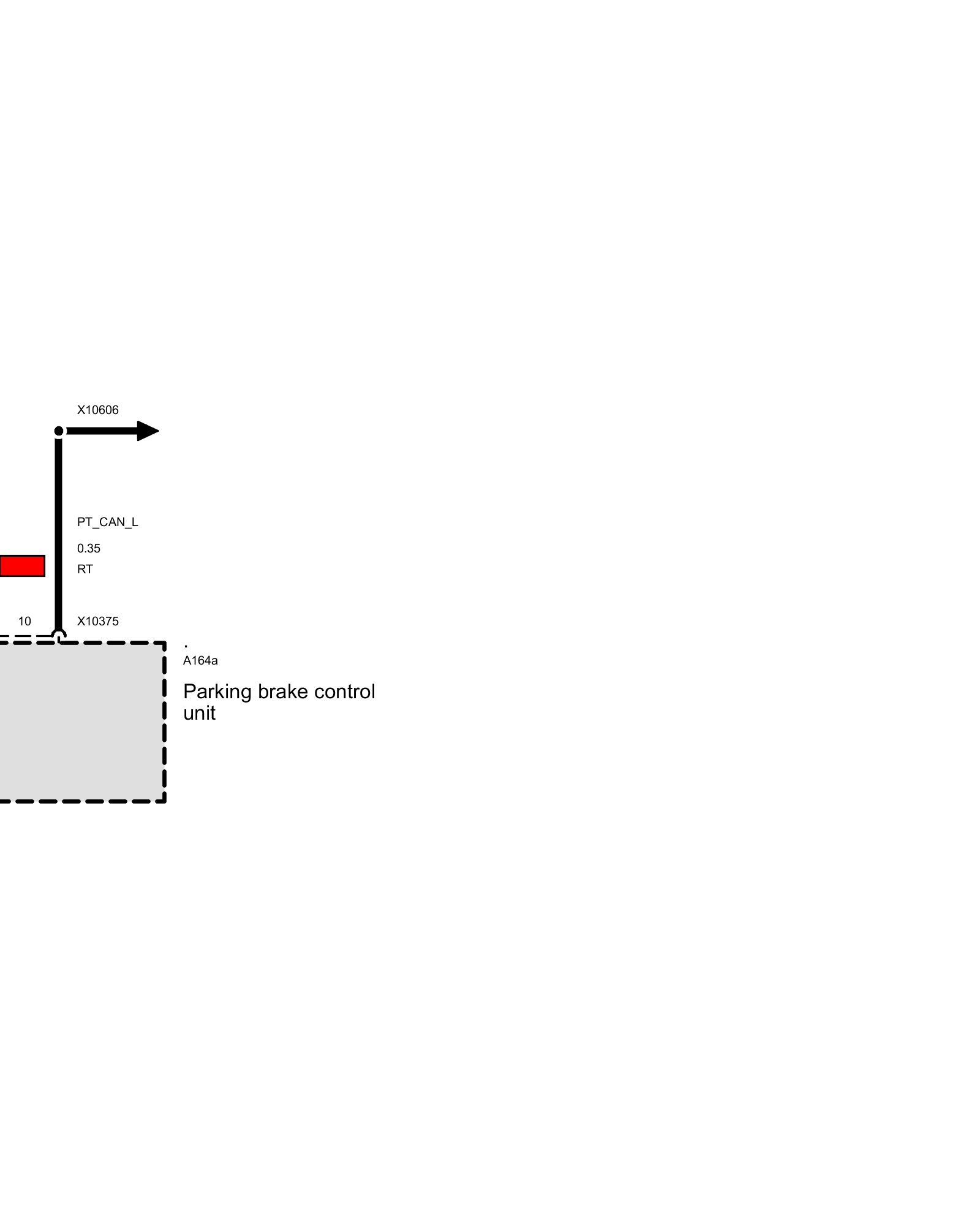

Supply, Parking Brake Control Unit
