54 13 100 Removing and Installing/Replacing Water Channel

54 13 100 Removing and installing/replacing water channel







When removing and installing the water channel, also note the interactive 3-D instructions. It does not replace but enhance the applicable repair instructions.
Press the individual point for animation display of the corresponding operations.
- 3-D animation of glass slide/tilt sunroof cover mechanism (step 1)







Necessary preliminary tasks:
- Remove glass slide/tilt sunroof cover at rear

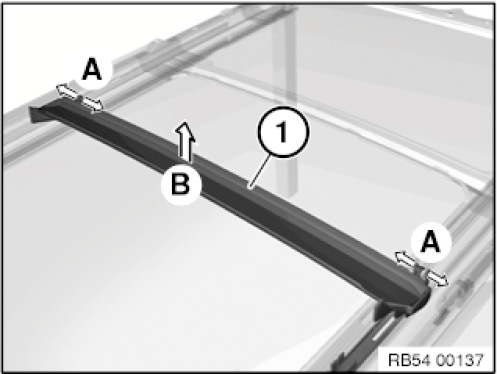

Unclip water channel (1) in direction of arrow (A) and lift off in direction of arrow (B).







IMPORTANT: Risk of damage to water gutter carrier.

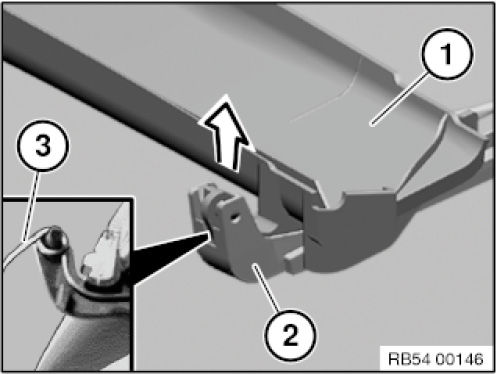

Carefully unclip water gutter (1) upwards out of carrier (2).







Installation note:
Insert spring (arrow) onto water channel pivot point.
Make sure spring is correctly positioned in water gutter.







Installation note:

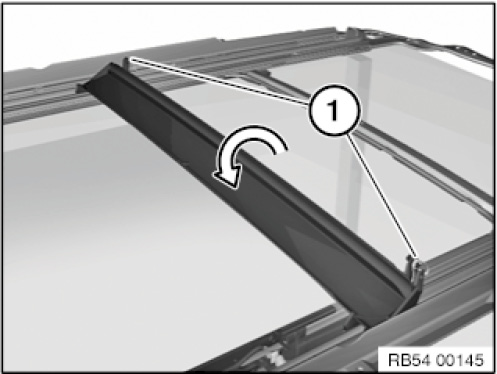

Before clipping in place, fold water channel (1) over in direction of arrow.







Installation note:

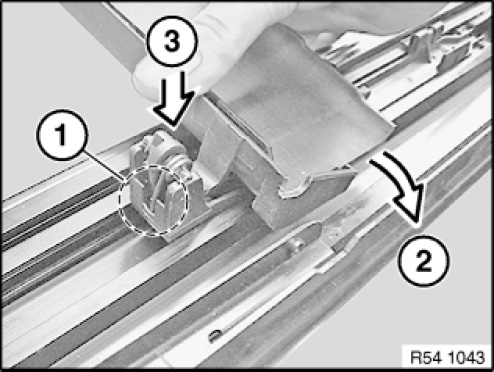

Observe installation sequence:
1. Suspend spring in water gutter carrier
2. Press water gutter onto glass slide/tilt sunroof
3. Clip pivot point (bearing) of water gutter into carrier

Check water gutter for spring tension.
