51 47 128 Removing and Installing/Replacing Panel For Luggage Compartment Floor

51 47 128 Removing And Installing/Replacing Panel For Luggage Compartment Floor

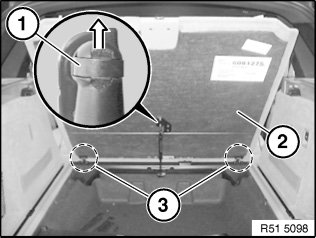

Push retaining spring (1) to end of gas-filled strut.
Remove gas-filled strut from ball head.
Firmly pull luggage compartment floor (2) towards rear and thereby disengage from hinges (3).







Replacement:
Remove handle on panel for luggage compartment floor.

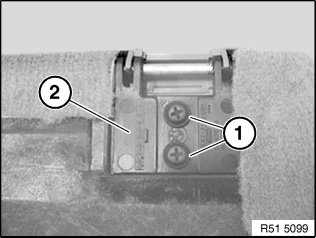

Release screws (1).
Remove hinge (2).

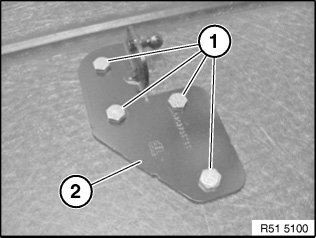

Release screws (1).
Remove retaining plate (2).
