51 16 ... Removing and Installing/Replacing Trim For Center Console For 3RD Seat Row




51 16 ... - Removing and installing/replacing trim for center console for 3rd seat row





Necessary preliminary tasks:
- Remove center console for 3rd seat row 51 16 ... Removing and Installing/Replacing Center Console For 3RD Seat Row

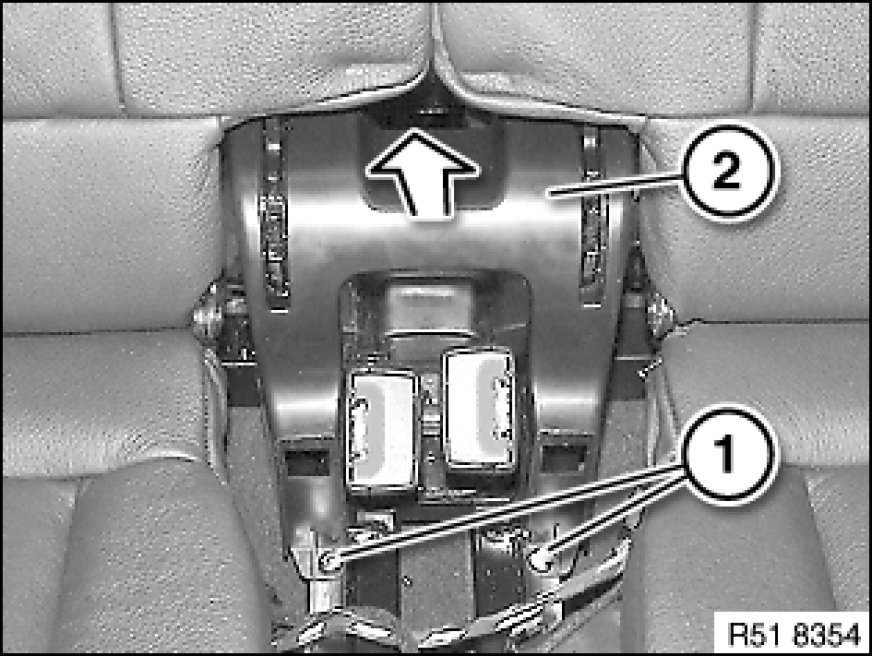

Release screws (1).
Remove trim (2) in direction of arrow.
