Removing and Installing/Replacing Lock For Rear Lid Upper Section

51 24 110 - Removing and installing/replacing lock for rear lid upper section





Necessary preliminary tasks:
- Remove panel for rear lid

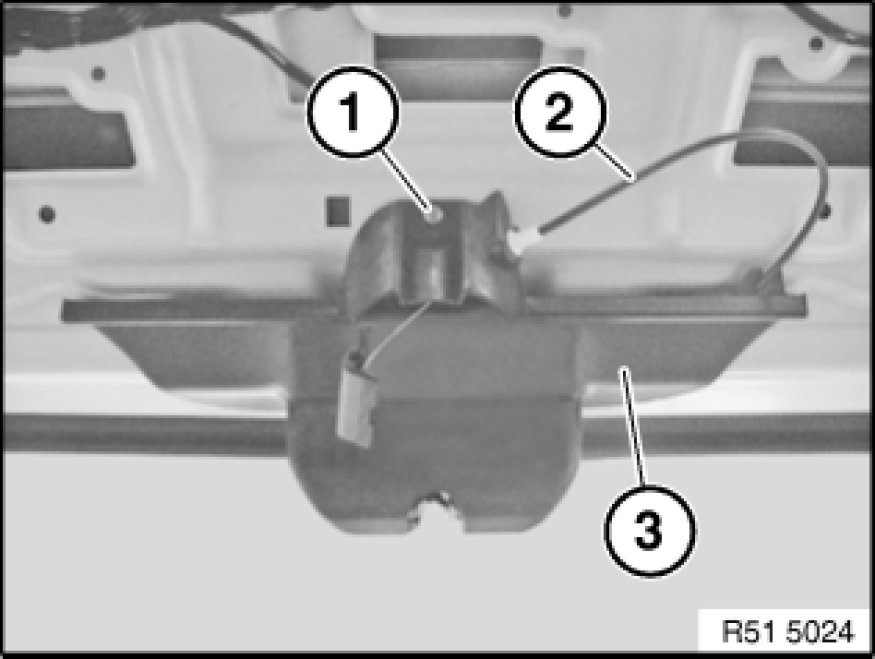

Release screw (1).
Feed out Bowden cable (2) and remove cover (3).

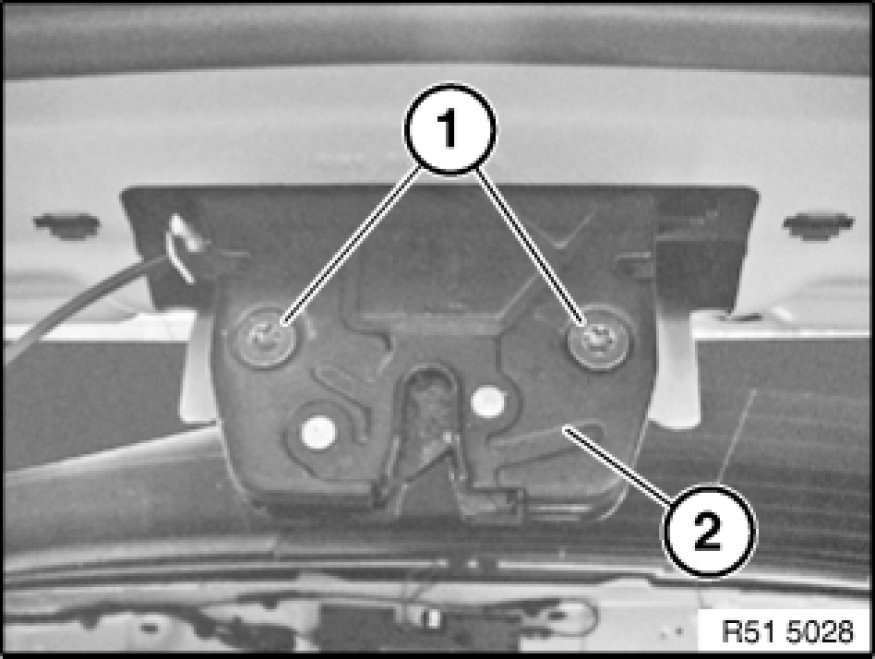

Release screws (1).
Tightening torque 51 24 1AZ 51 24 Rear Lid Latch, Locks.
Feed out lock (2), disconnect plug connection and remove lock (2).





Replacement:

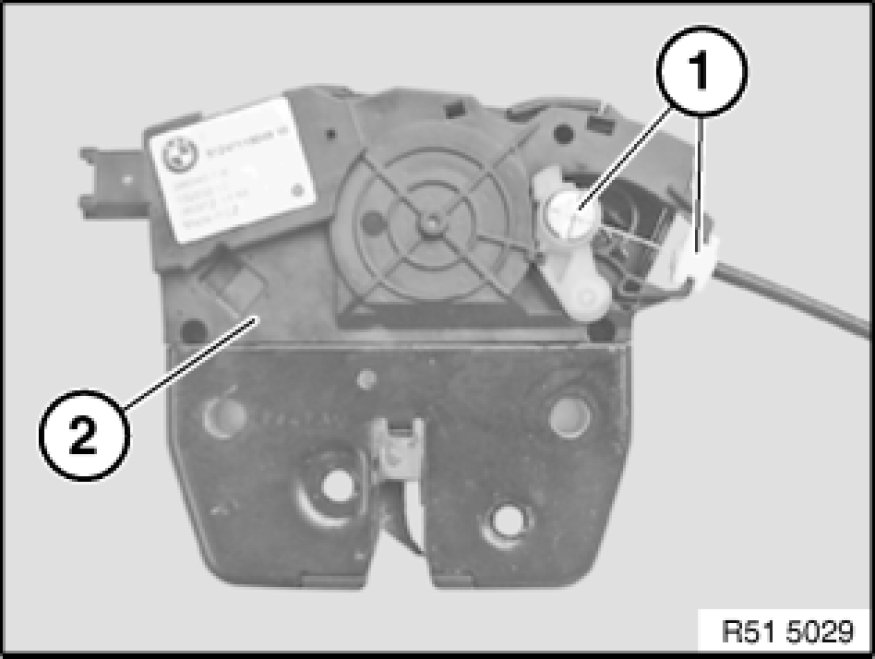

Unhook Bowden cable (1) from lock (2).
