Removing and Installing/Replacing Window Cavity Cover Strip on Inner Front Door

51 21 330 - Removing and installing/replacing window cavity cover strip on inner front door





Necessary preliminary tasks:
- Remove front door trim panel Removing and Installing Left or Right Front Door Trim Panel

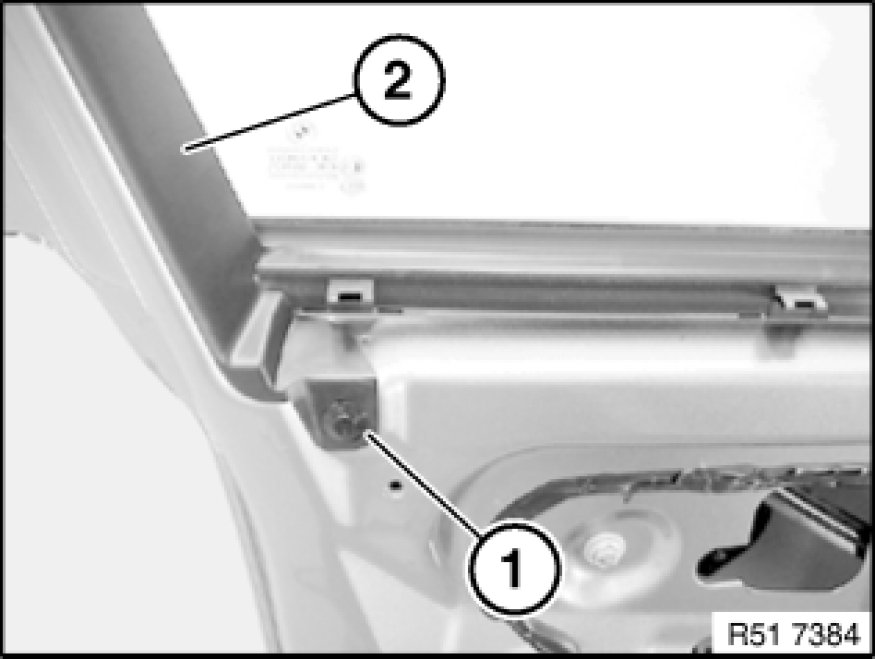

Release expander rivet (1) on cover (2).

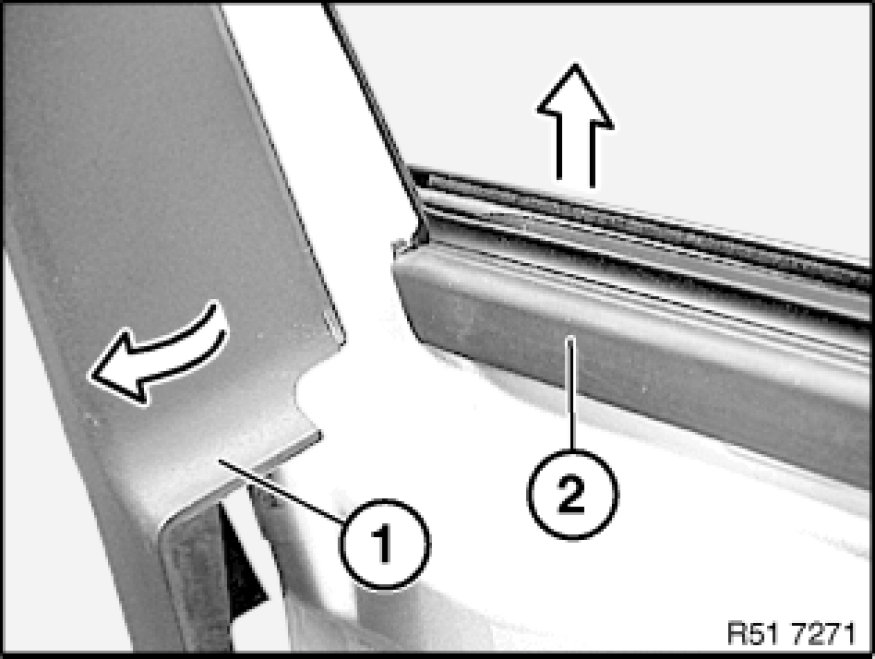

Lever out cover (1) at rear slightly.
Start at rear with removal of window cavity cover strip (2).

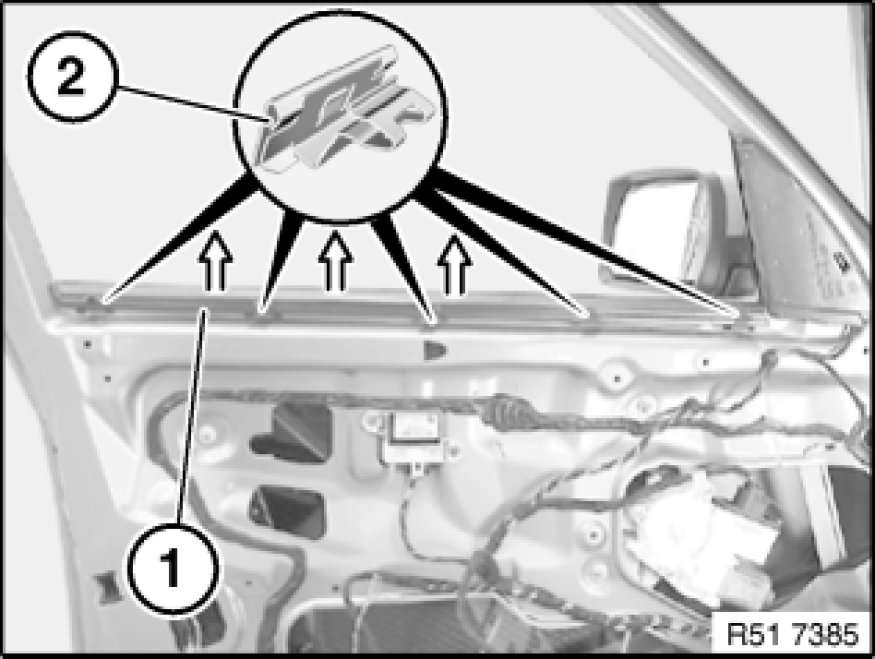

Pull off window cavity cover strip (1) towards top.

Installation:
If necessary, replace faulty clips (2).





Installation:

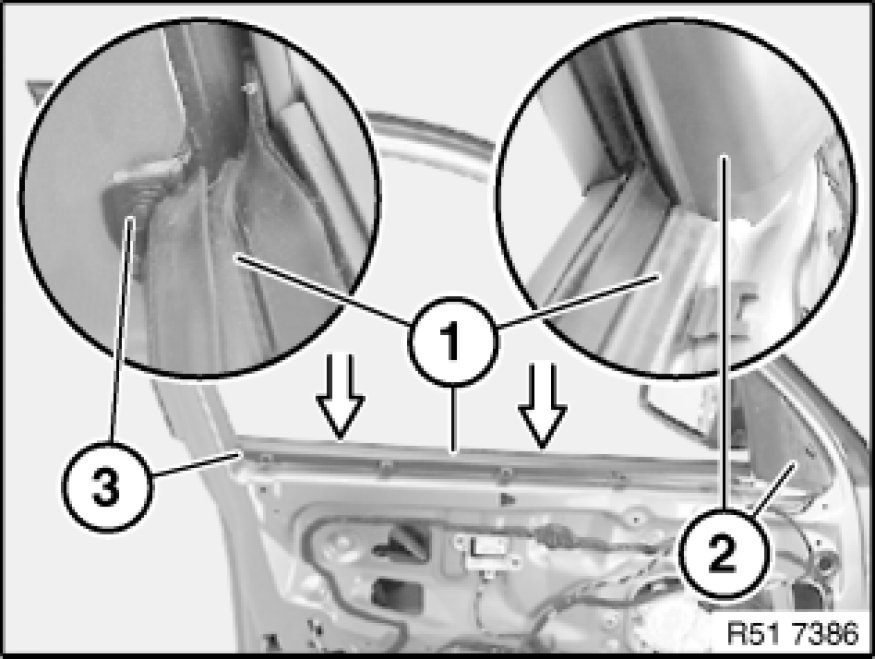

Insert window cavity cover strip (1) below cover (2).
Foam (3) on window cavity cover strip (1) must not be damaged.





Installation:

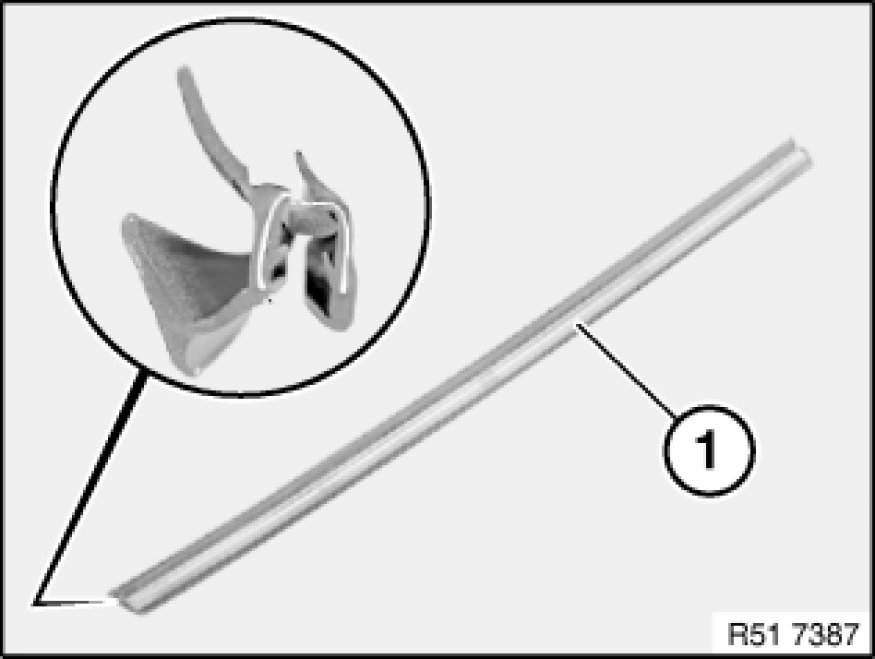

Coat window cavity cover strip (1) with water before fitting.
Start with installation at front.
