Removing and Installing/Replacing a Rear Ultrasonic Transducer (Park Distance Control)

66 20 540 - Removing and installing/replacing a rear ultrasonic transducer (Park Distance Control)





Necessary preliminary tasks:
- Remove rear bumper trim.

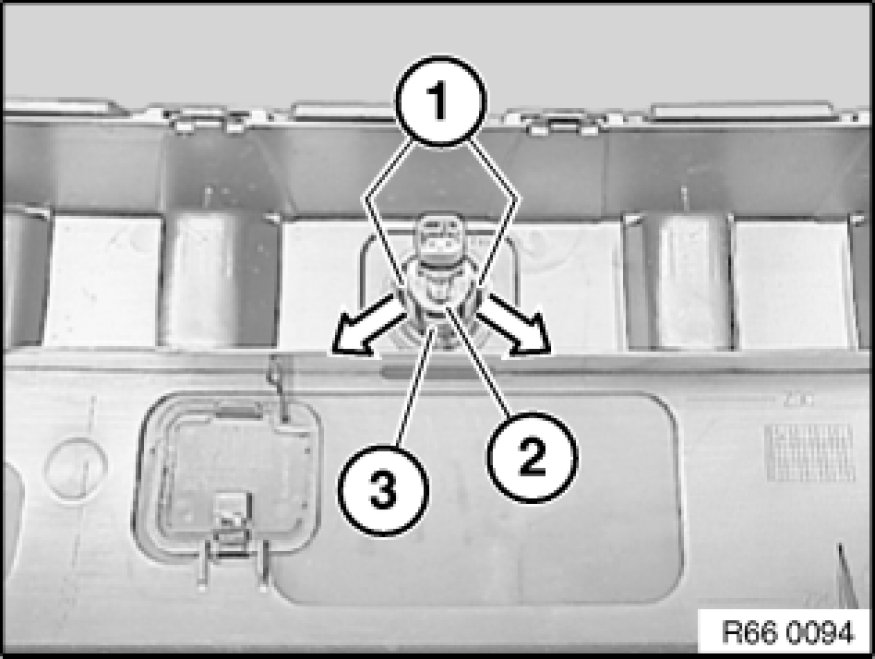

Unlock catches (1) in direction of arrow and pull ultrasonic transducer (2) out of bracket (3).





Installation:

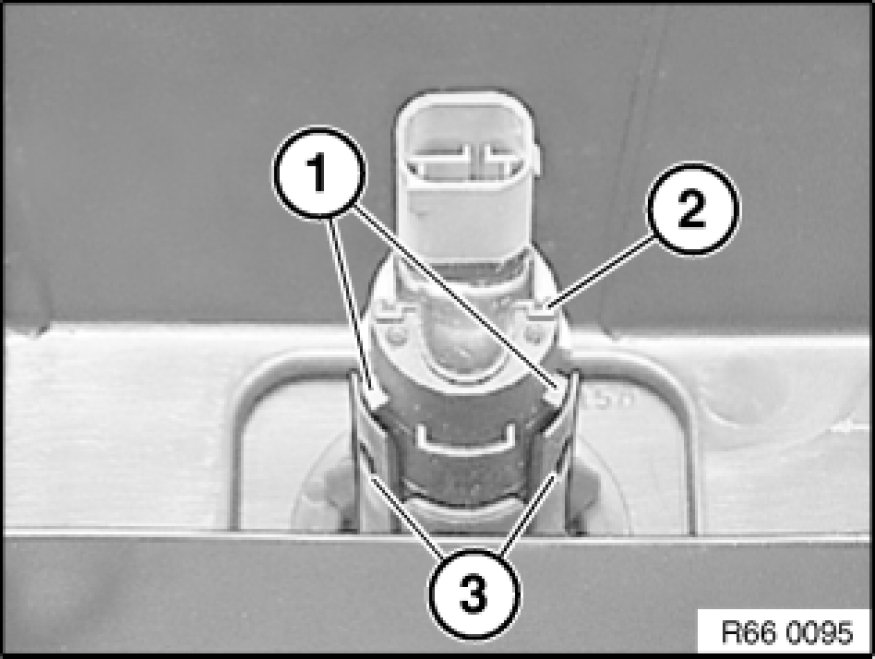

Retaining hooks (1) of ultrasonic transducer (2) must engage exactly in mountings (3).
