Leak Detector: Service and Repair

16 13 015 - Removing and installing/replacing tank leak diagnosis module





Necessary preliminary tasks:
- Remove carbon canister with DMTL 16 12 010 Removing and Installing/Replacing Carbon Canister with DM-TL (Diagnosis Module for Tank Leakage)

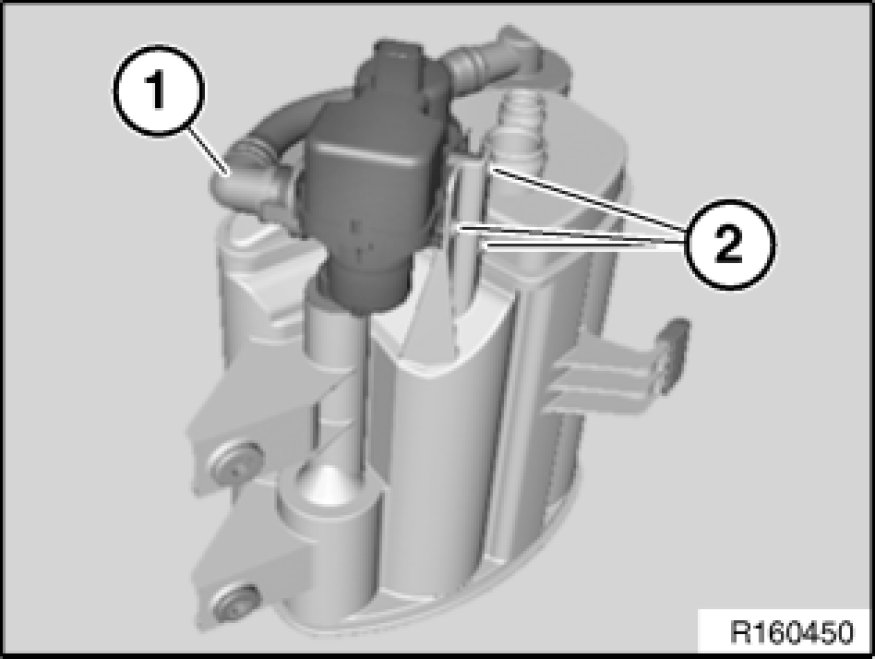

Unlock and disconnect line (1) from tank leakage diagnosis module.

Release screws (2).

Tightening torque 16 13 3AZ 16 13 Tank Ventilation.

Detach DMTL from carbon canister.
