Removing and Installing/Replacing Armrest for Rear Seat Backrest (Through-Loading System)




52 26 030 - Removing and installing/replacing armrest for rear seat backrest (through-loading system)





Fold down right backrest.

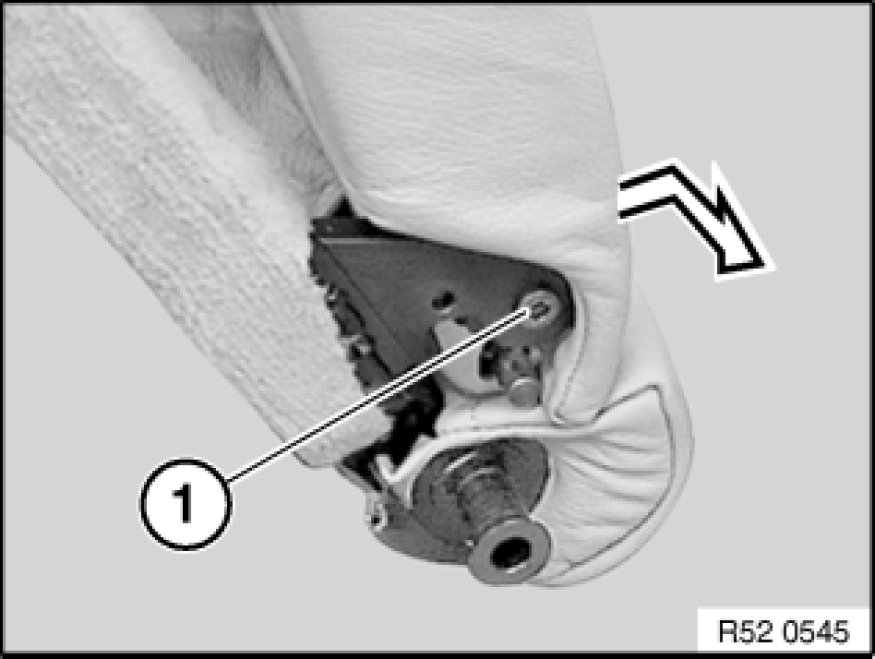

Unscrew bolt (1).
Remove armrest first towards front and then sideways.
