Removing and Installing/Replacing Guide for Front Left or Right Head Restraint

52 13 ... - Removing and installing/replacing guide for front left or right head restraint





Necessary preliminary tasks:
- Remove rear panel on front seat backrest
- Remove head restraint





Guide for head restraint with push-button:

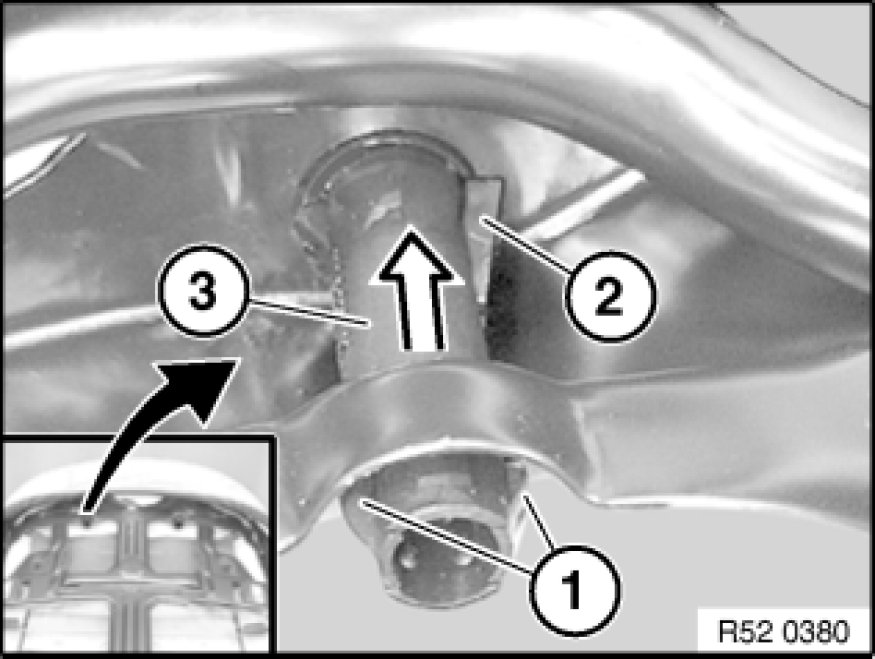

Release catches (1) and (2) and slide guide (3) upwards.

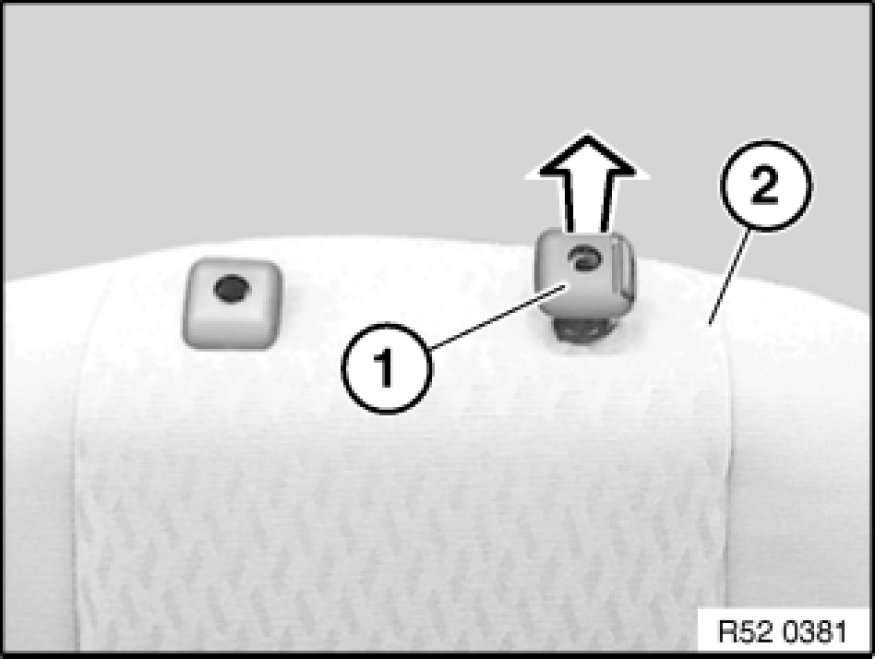

Pull guide (1) out of backrest (2).





Installation Note:

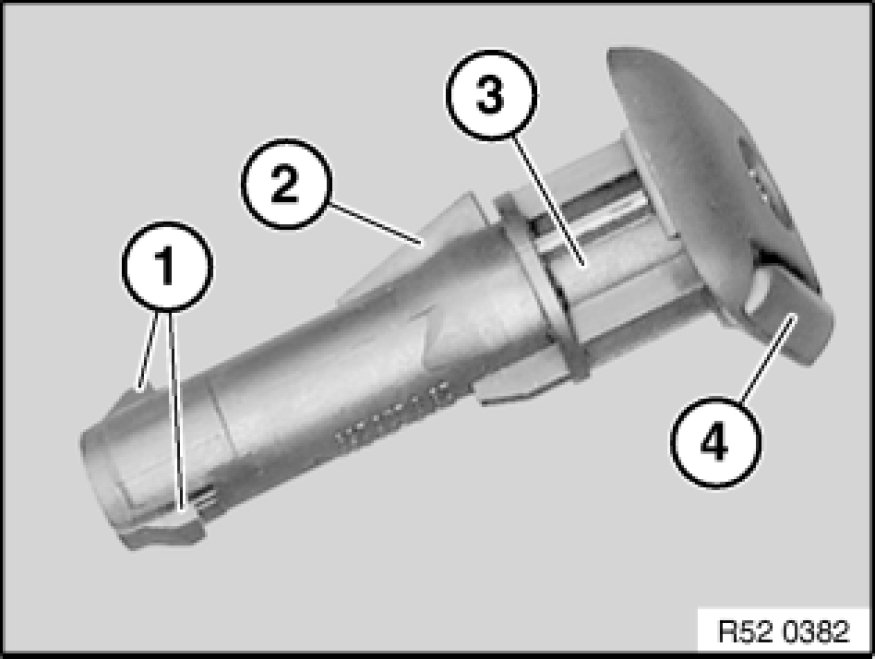

Catches (1) and (2) on guide (3) must not be damaged.
Check that push-button (4) works properly.
After installing guide (3), make sure it is properly seated.





Guide for head restraint without push-button:

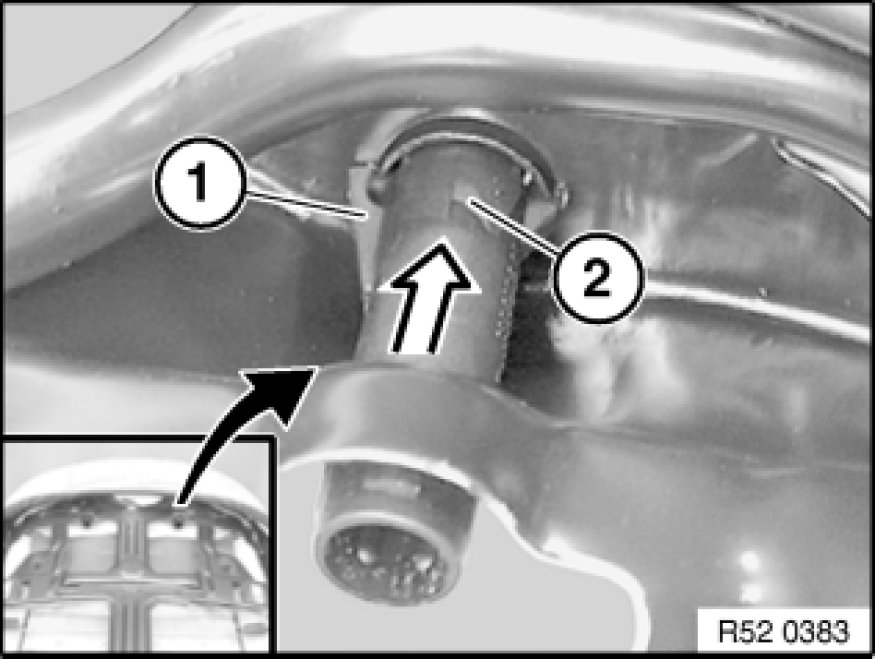

Release catches (1) and slide guide (2) upwards.

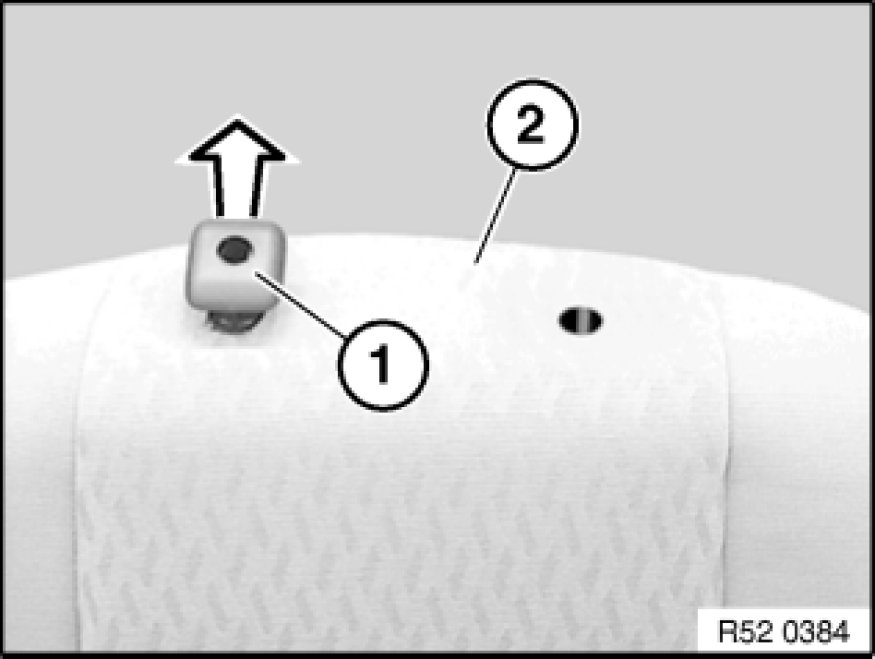

Pull guide (1) out of backrest (2).





Installation Note:

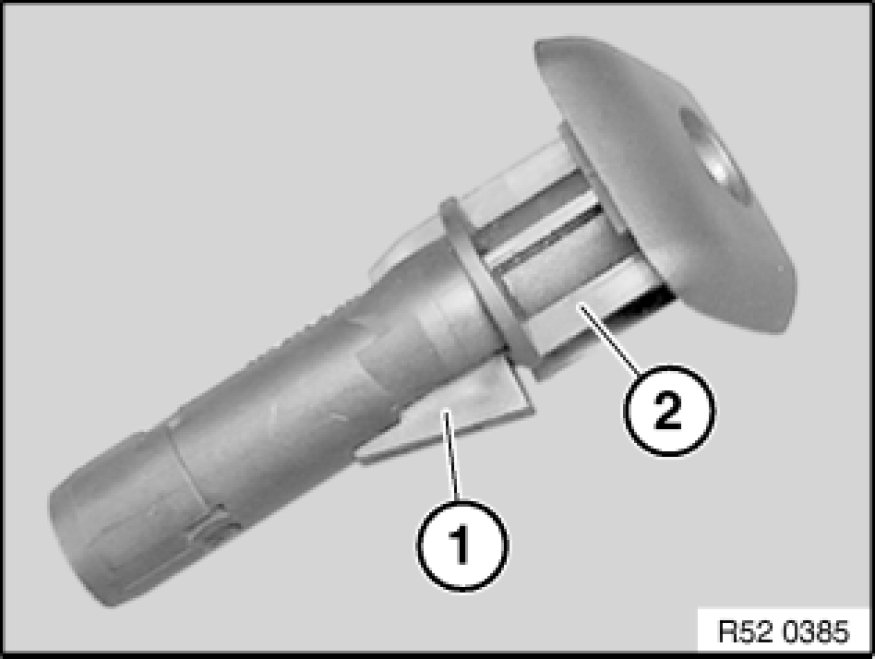

Catch (1) on guide (2) must not be damaged.
After installing guide (2), make sure it is properly seated.
